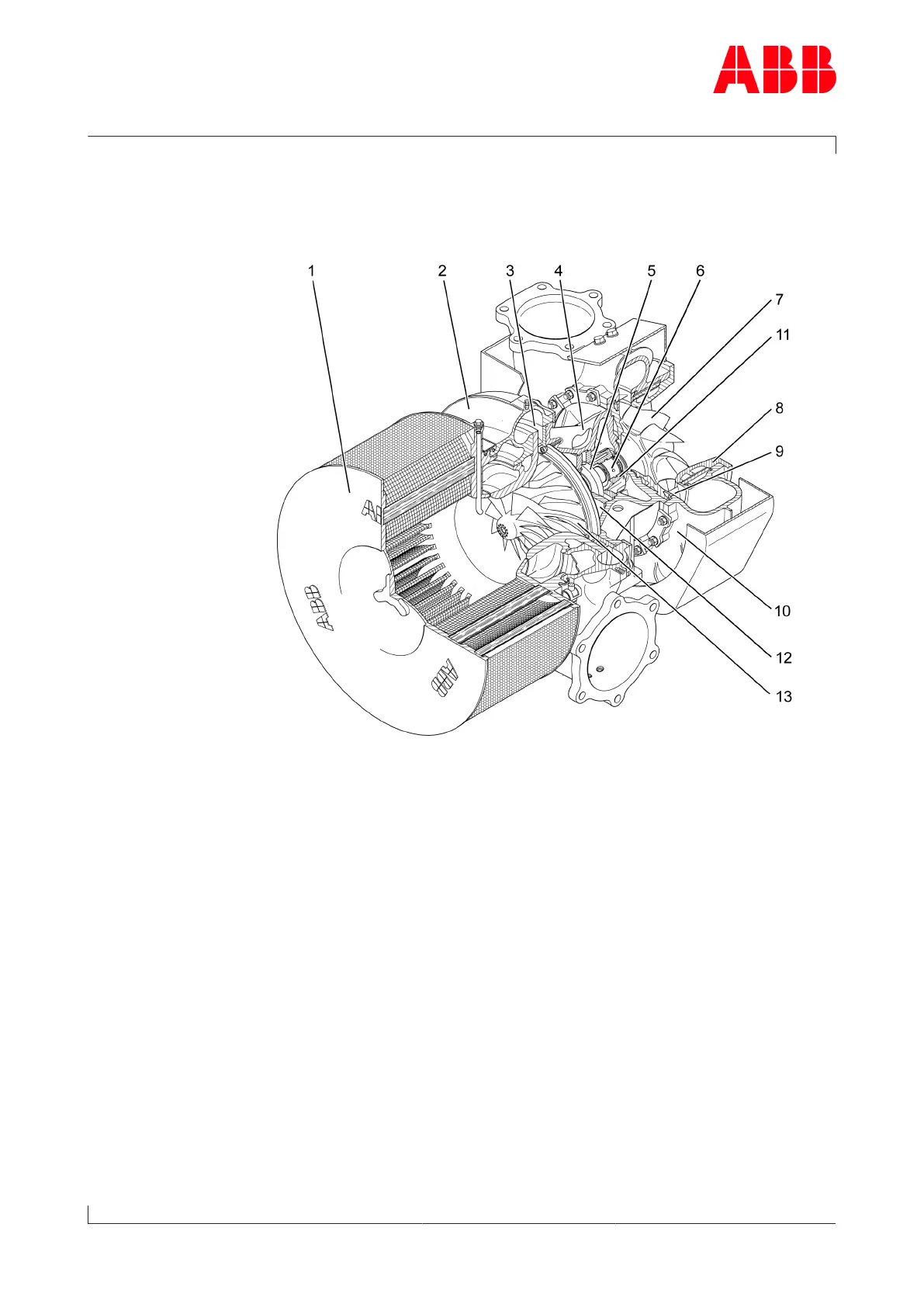

1.2 Layout and function
1Suction branch / filter silencer 8Gas outlet flange
2Compressor casing 9Nozzle ring
3Diffuser 10Turbine casing
4Bearing casing 11Turbine-end bearing flange
5Axial thrust bearing 12Compressor-end bearing
flange
6Radial plain bearing (visible only
at turbine end)
13Compressor wheel
7Turbine
