Operation Manual / TPS48-D/E.. - TPS61-D/E..
9 Taking out of operation / 9.1 Shutting down the turbocharger
© Copyright 2020 . All rights reserved. HZTL2410_EN Rev.F March 2020

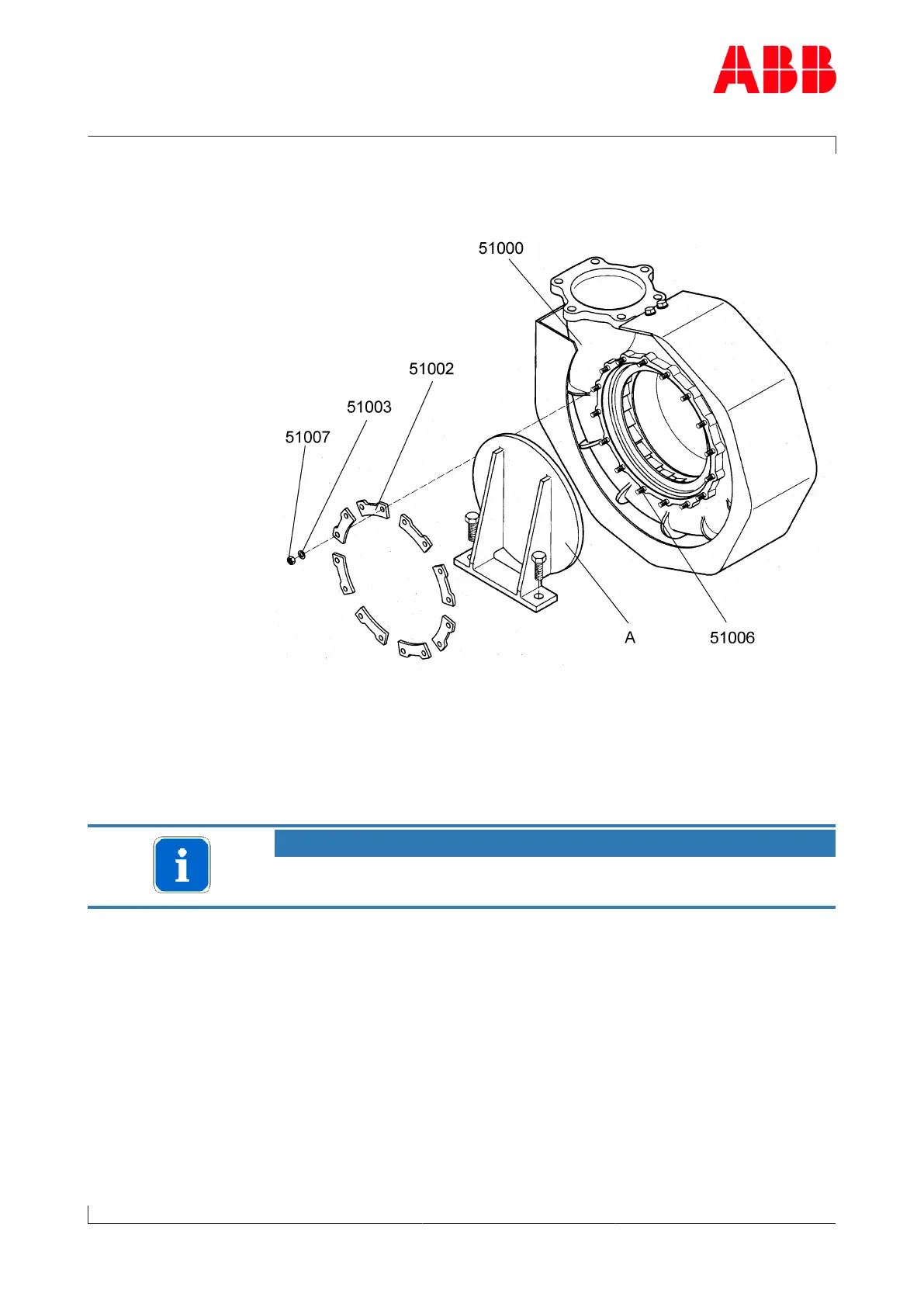

Fitting the cover plate
u Close the opening in the turbine casing using the cover plate (A).
u Fasten the cover plate on the turbine casing (51000) using the fasten-
ing strips (51002), Verbus Ripp® Verbusripp washers (51003) and nuts
(51007) and screw it down securely on the support.
NOTICE
Thoroughly clean the fastening strips (51002) before fitting them. Apply
high-temperature grease to the stud threads (51006).
Page 100 / 111
