Operation Manual / TPS48-D/E.. - TPS61-D/E..
4 Operation / 4.1 Noise emissions
© Copyright 2020 . All rights reserved. HZTL2410_EN Rev.F March 2020

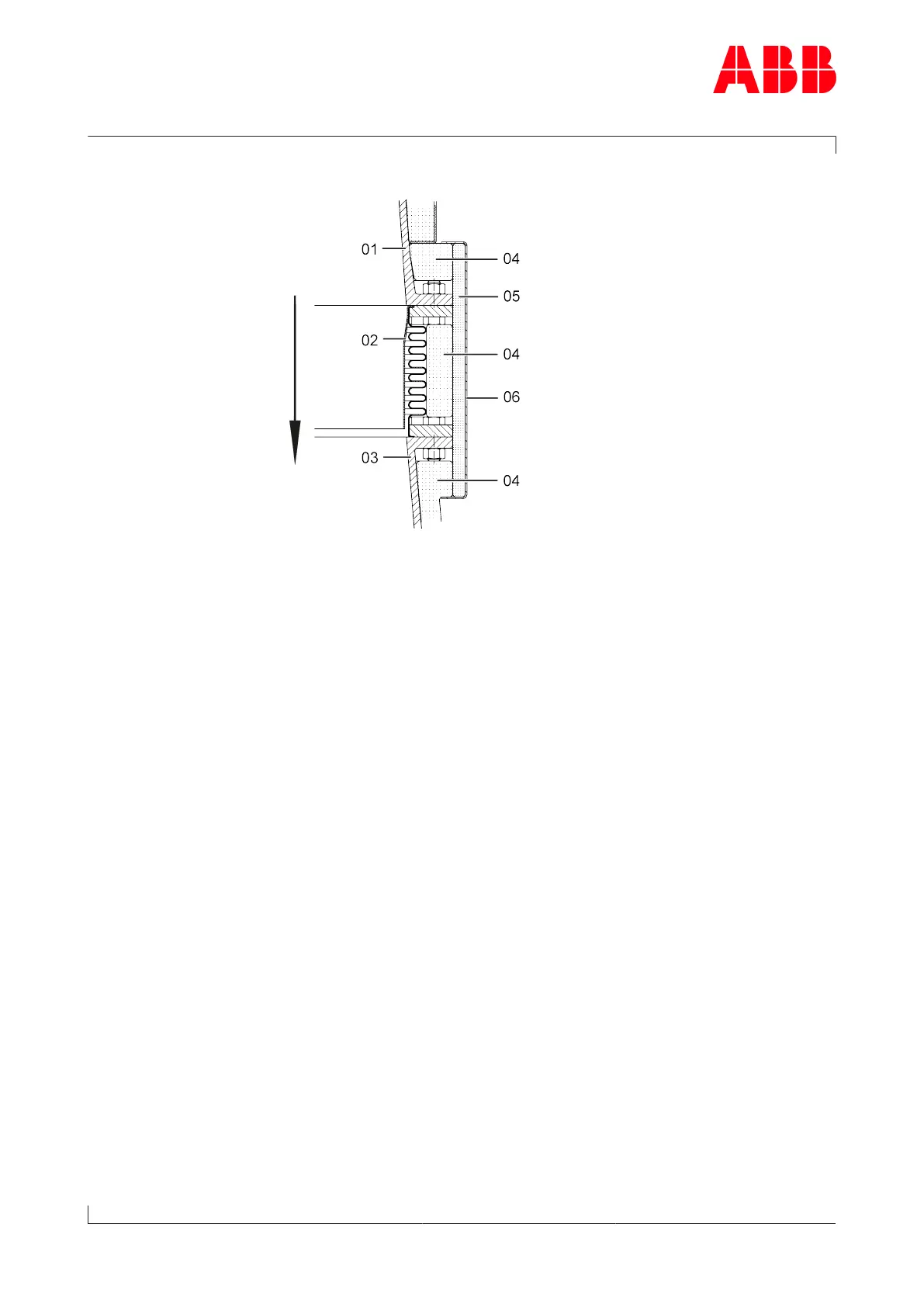

Suggestion for noise insulation of the bellows
01 Compressor casing 04 Insulation pads
02 Bellows 05 Insulation mat (at least 15 mm)
03 Charge air duct / scavenging
air line
06 Sheet metal cover
Page 36 / 111
