Operation Manual / TPS48-D/E.. - TPS61-D/E..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2410_EN Rev.F March 2020

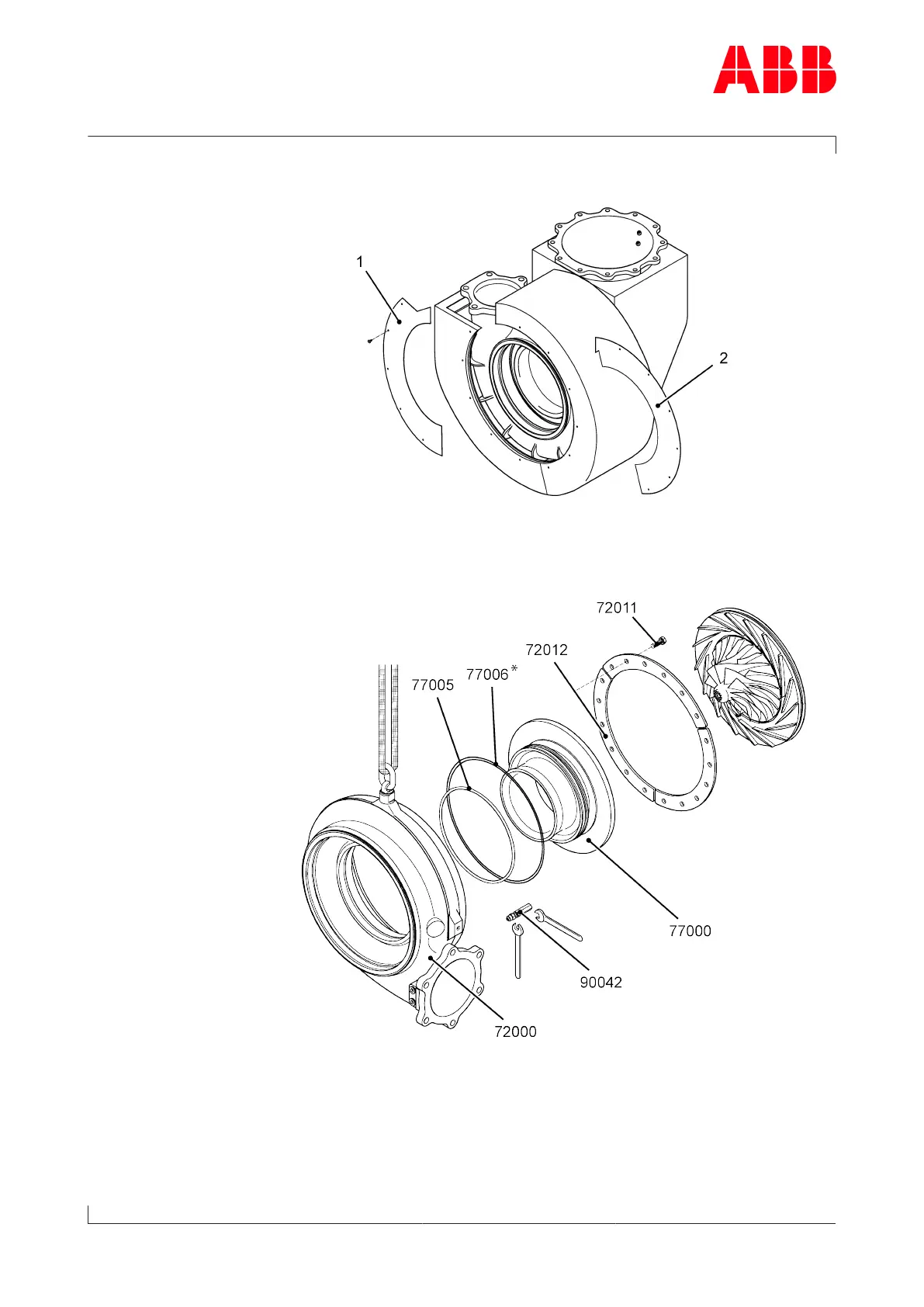

u Remove the insulation plates (1, 2).
u Slightly loosen the screws (72011) and turn the compressor casing
(72000) until the swivel lifting eye can be fastened to the lifting gear.
(77006* only provided with the wall insert with acceleration aid.)
