Operation Manual / TPS48-D/E.. - TPS61-D/E..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2410_EN Rev.F March 2020
Nozzle ring press fit for
multiple inlet turbine cas-
ing

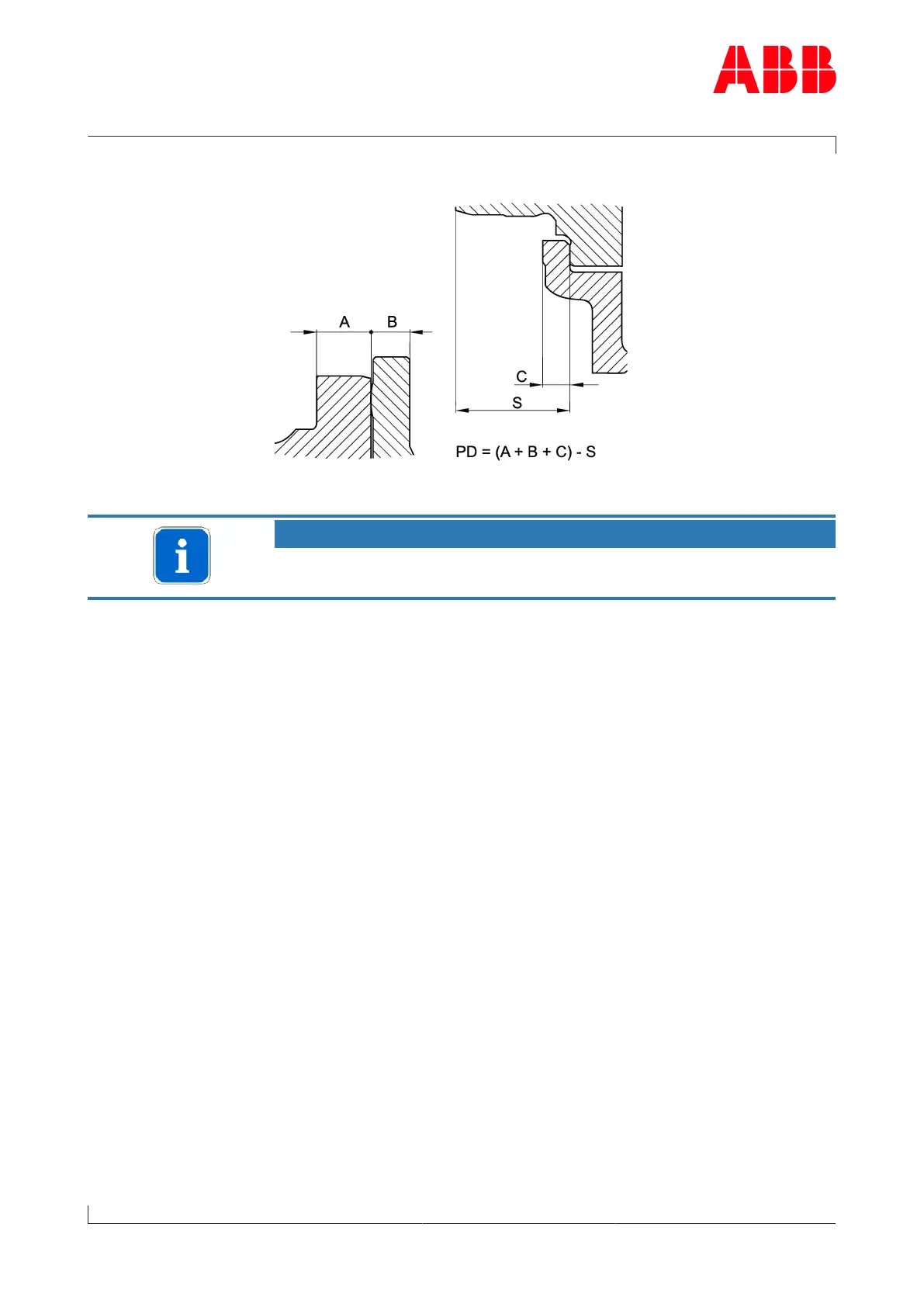

u Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is outside ±0.2 mm, an official ABB Tur-
bocharging Service Station must be contacted.
u Measure the axial and radial clearances (see the section Axial and ra-
dial clearances).
Page 90 / 111
