Operation Manual / TPS48-D/E.. - TPS61-D/E..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2410_EN Rev.F March 2020
If provided

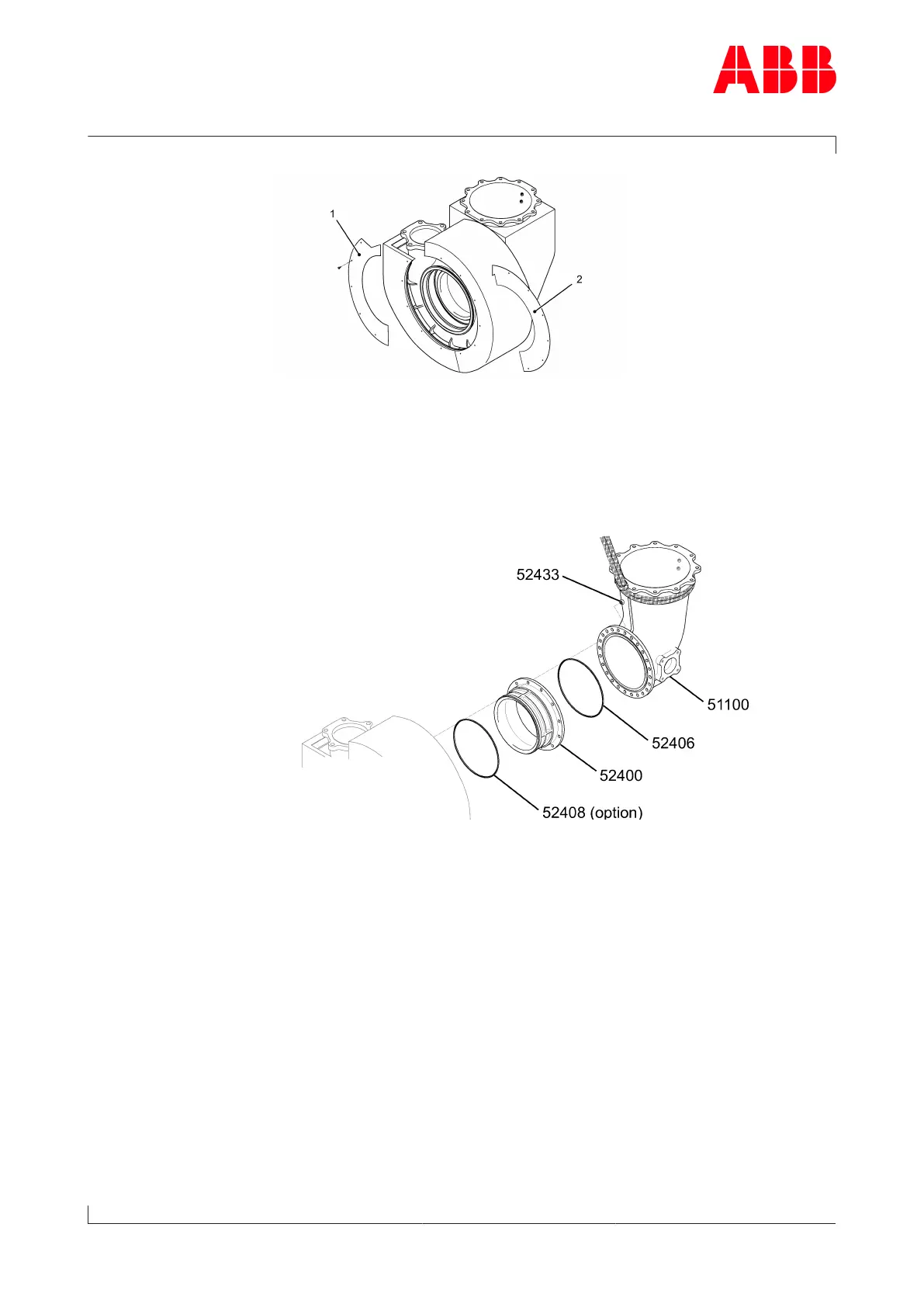

u Plug in the cable connector (86515) for the speed sensor (86505) and
fit the insulation plates (1, 2).
Removing gas outlet manifold and gas outlet flange
If provided
u Disconnect all lines in accordance with enginebuilder's instructions
and remove insulation (see also preceding chapter).
u Loop lifting gear around gas outlet manifold(51100).
u Remove gas outlet manifold(51100) and gasket(52406). Only gas
outlet manifolds from ABB have the gasket(52406).
u Remove gas outlet flange(52400) and, if fitted, C-ring(52408).
