Installation 4 – 8 Advant Controller AC 31 / Issued: 08.99
3

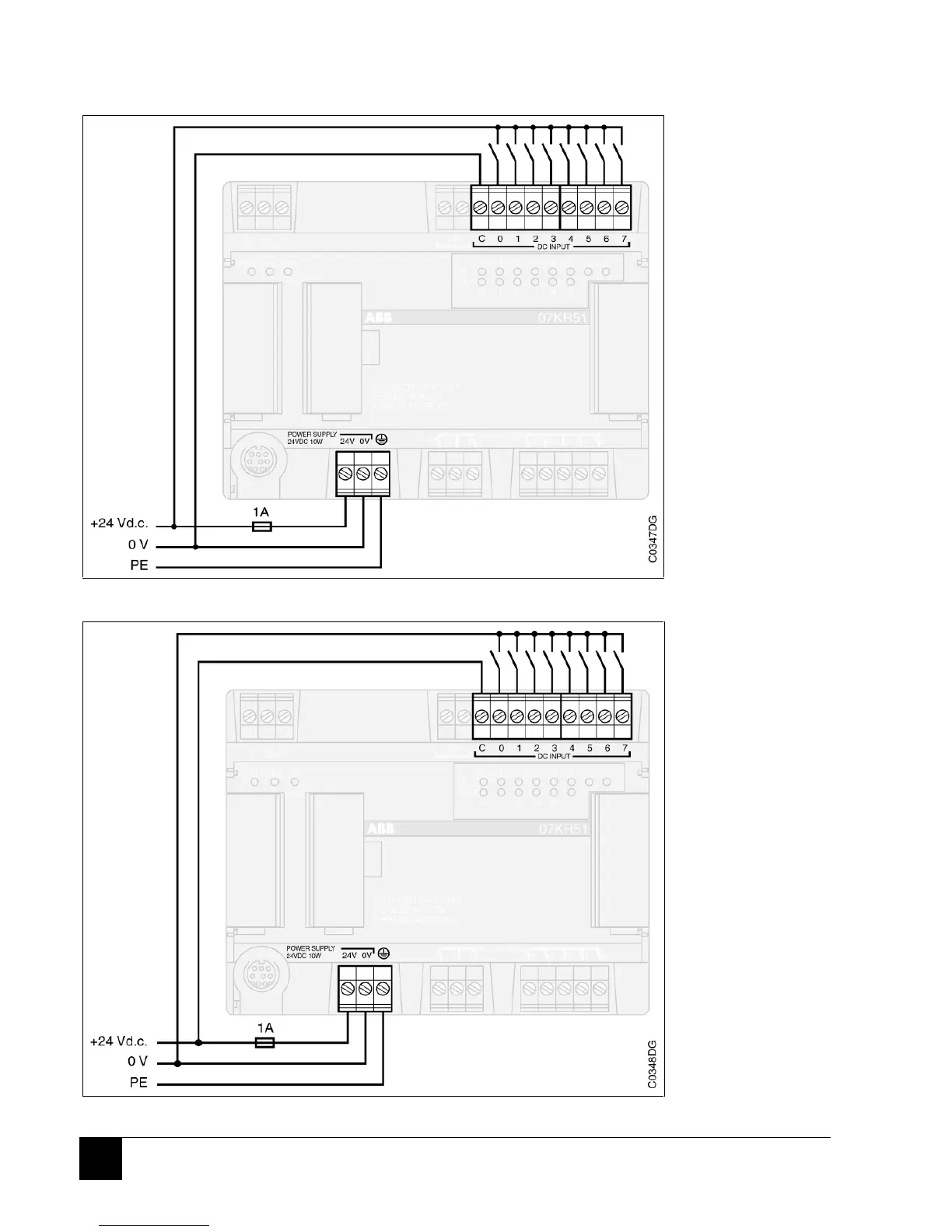

Cabling of inputs/outputs of the basic unit and remote units:
Figure 12: Positive logical inputs PNP 24 V d.c. power supply
Figure 13: Negative logical inputs NPN 24 V d.c. power supply
