3.7 Accessories
3.7.1 Programming cables: 07 SK 50 and 07 SK 52
These cables allow you to connect the 40 and 50 series basic units to a PC for programming
and testing.
The cables are 2 m in length and shielded.

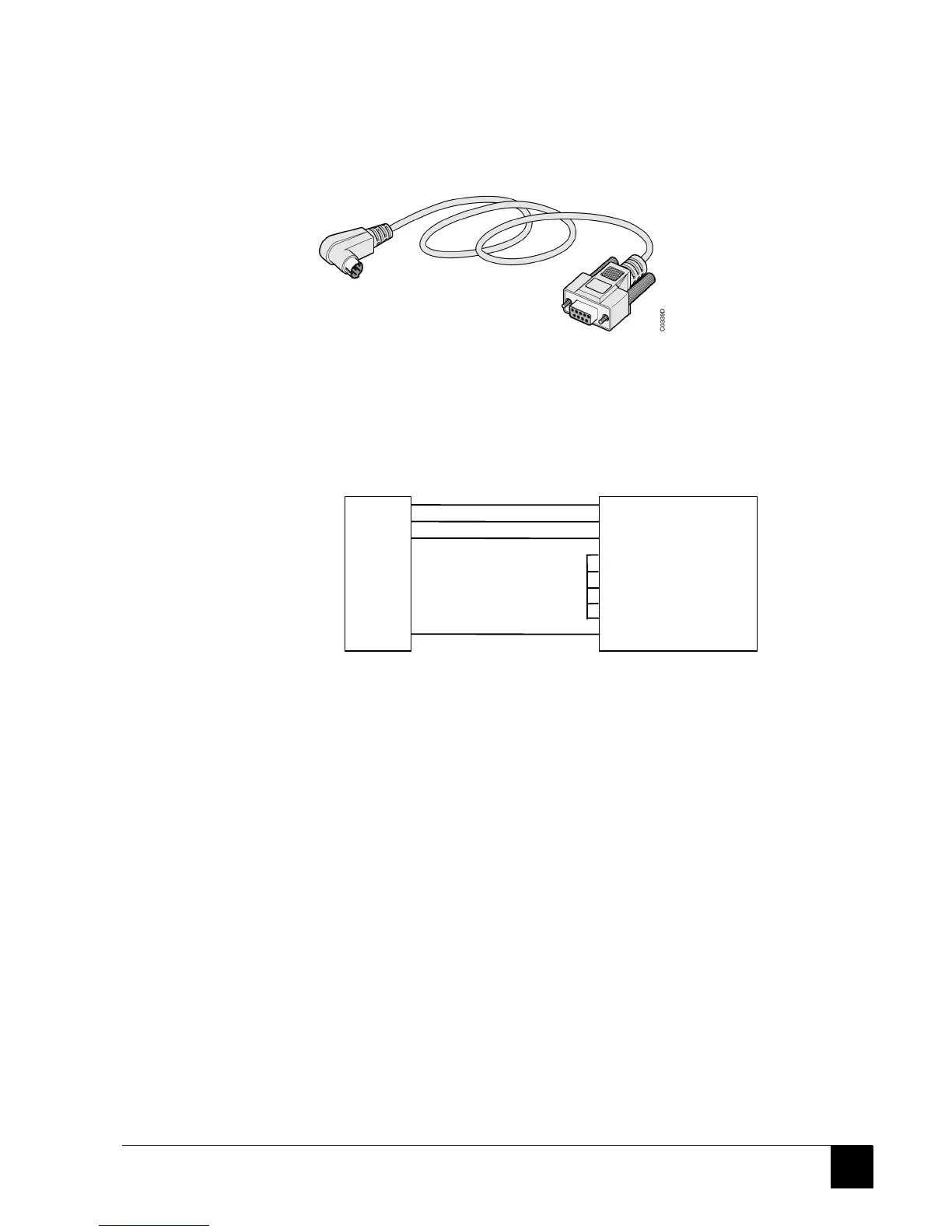

Figure 9: 07 SK 50 programming cable (grey)
07 SK 50 connection diagram (see Figure 9):
Central unit
MIN DIN 8
PC
SUB D9
RxD 1
TxD 2
GND 7
5
8
3
6
4
shield
3 TxD (yellow)
2 RxD (red)
5 GND (black)
8CTS
7RTS
1CD
4DTR
6DSR
shield
