INSTALLATION, OPERATIONS AND MAINTENANCE MANUAL
—
17
—

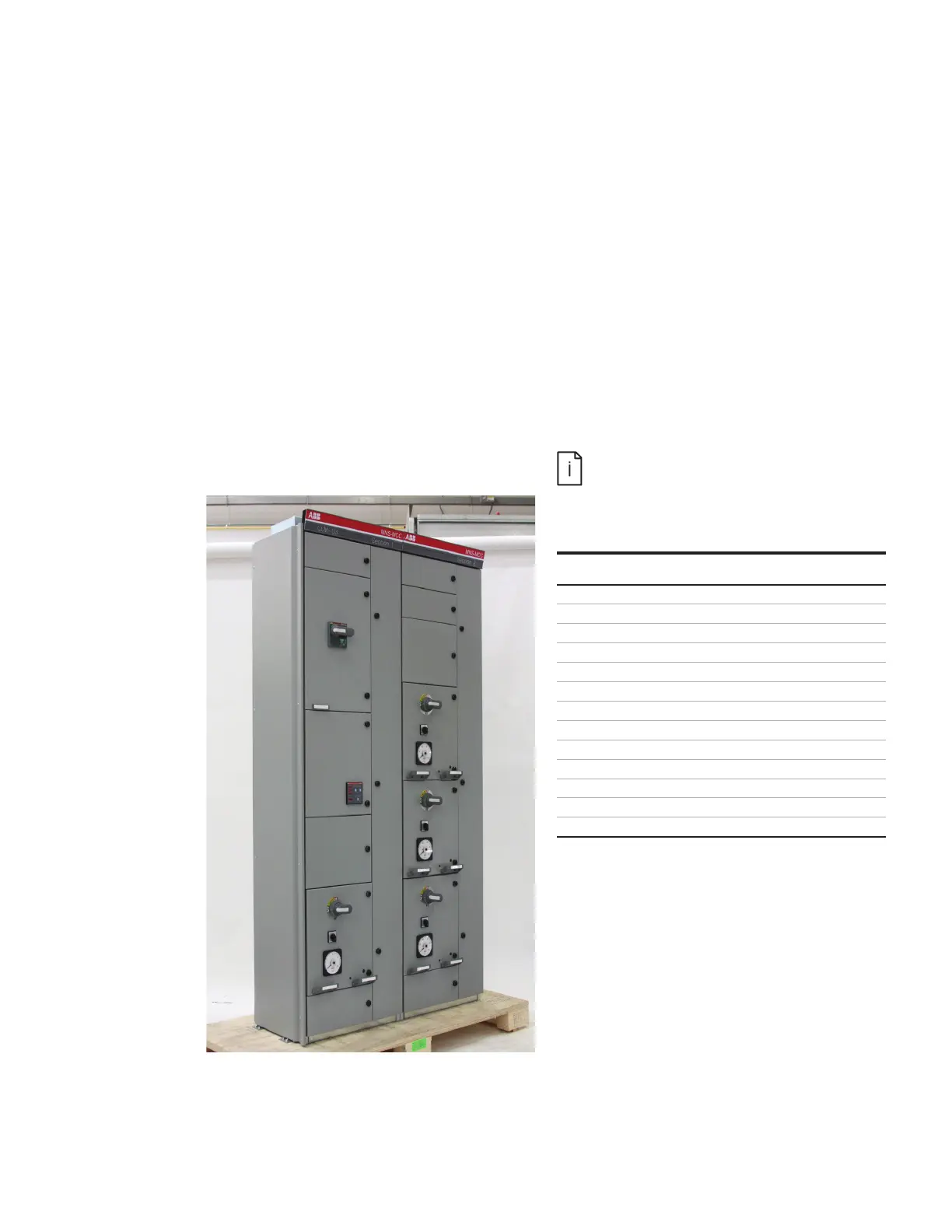

17 MCC General
arrangement -
shipping splits
The maximum length for a motor control center
shipping split is 1800 mm (71 in). The skid length,
for such Shipping split, will be 2100 mm (82 In), the
depth 900 mm (35 in) and the height 120 mm (5 in).
For shorter shipping splits, two shorter skid types
are available in 1700mm (67 In) or 1200 mm (47 in)
length.
Note: Some heavy units or sensitive parts
may be shipped separately
General
Packaging will be done using ABB standard
methods, unless the customer requires and
requests special packaging.
MCC as standard are shipped in shipping splits of
up to three sections. The width of shipping splits
depends on the type of equipment installed and
the width of the individual sections.
—
Packaging and handling
—
Table 2. Maximum approximate weight
Section Type
Maximum Approximate
Weight in Kg (Lbs)
SS Full Section
VFD Full Section
Withdrawable Module Section
