9. A mechanism opening spring is charged, see Fig. 18.
10. Turn the handle to the left and right for test, see Fig. 19.
11. Put the arrestor ring on the shaft, see Fig. 20.
12. Slide out the arrester ring to the position where it is possible to
turn the handle clockwise and close disconnector, see Fig. 21.
8 NAL/NALF – Mounting and operation manual

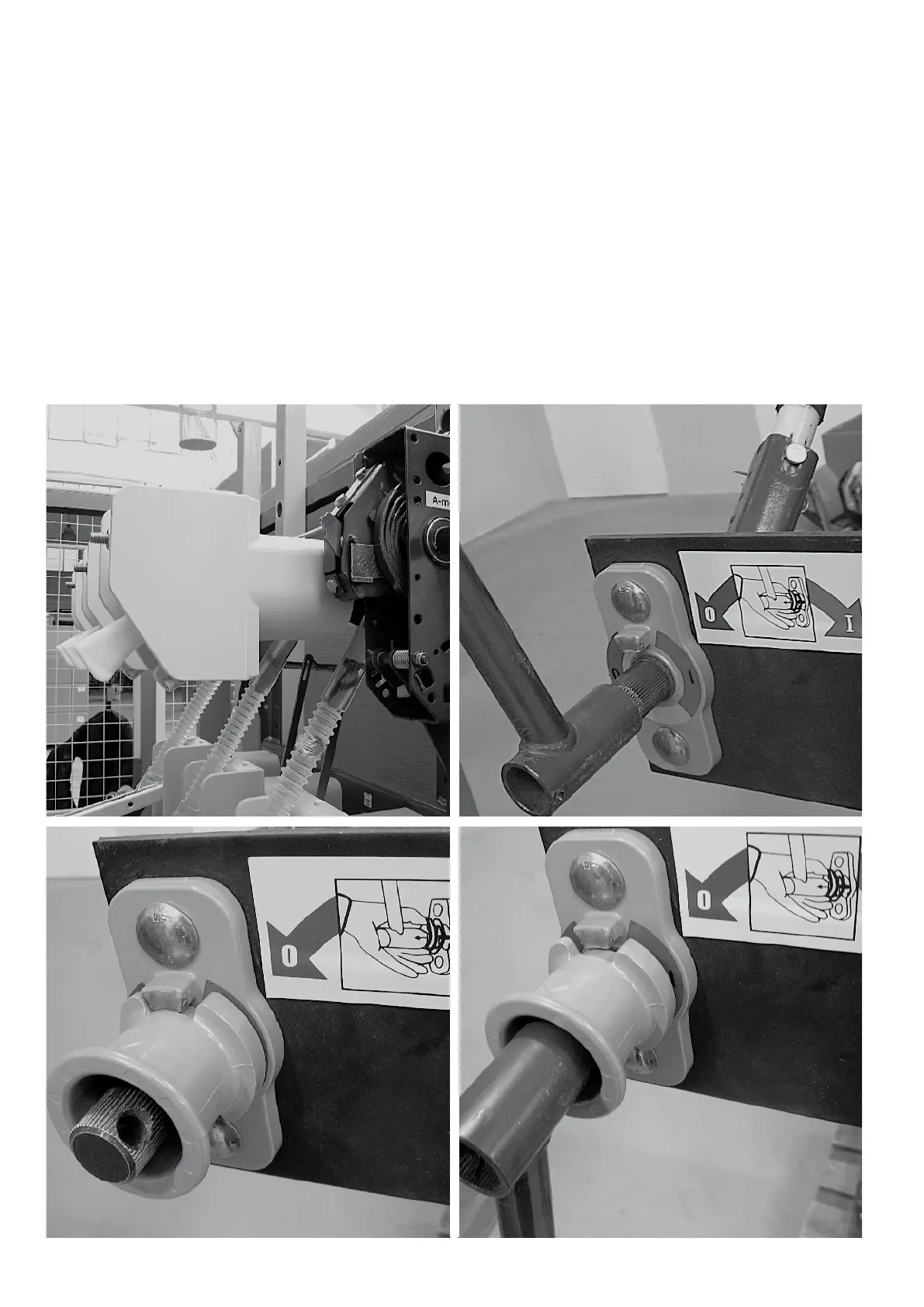

Fig. 18
Fig. 20
Fig. 19
Fig. 21
Fig. 18-21 Mounting of hand operating mechanism HE
