Remove all screws on the front and remove the front plate (Figure 4-4).

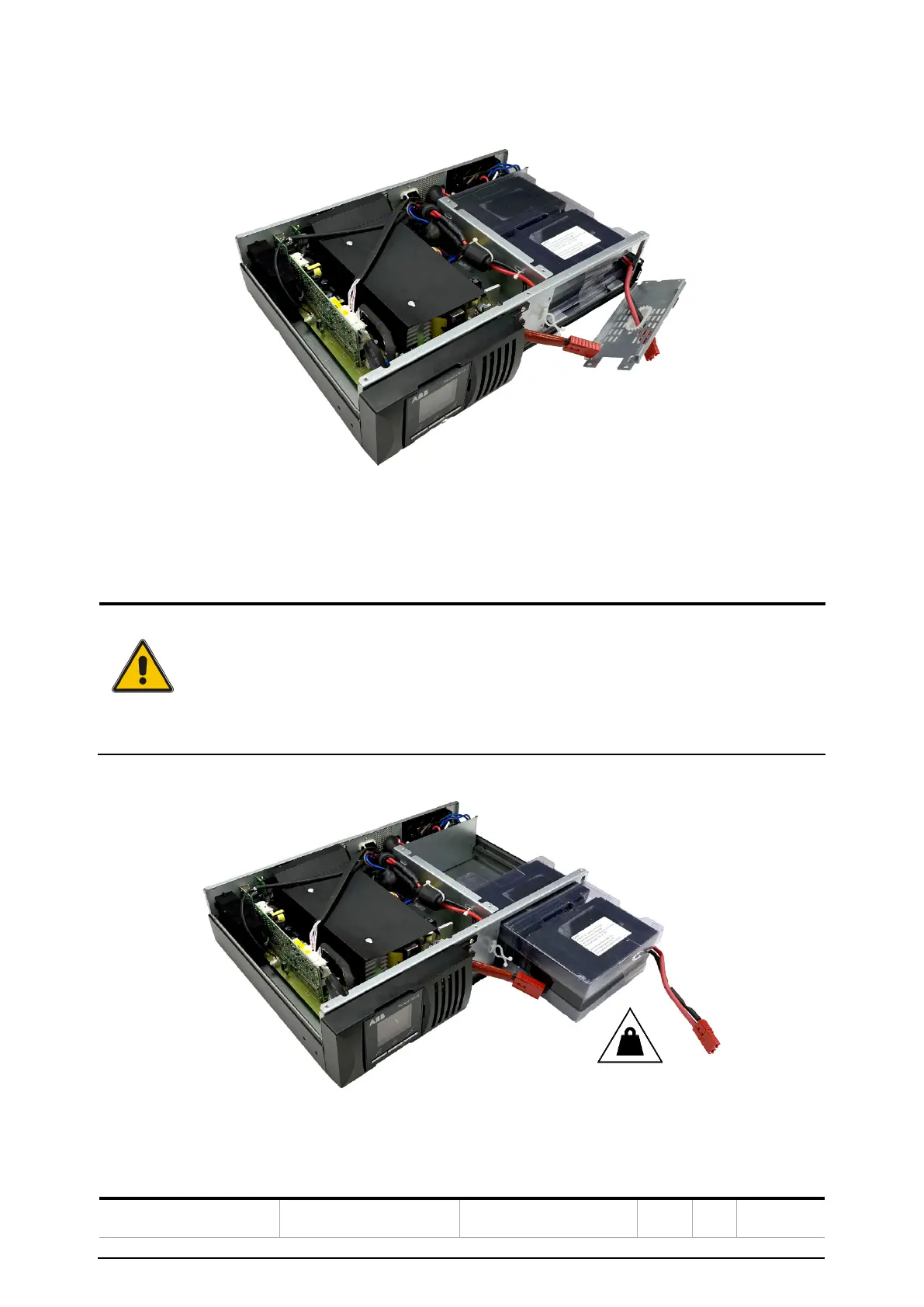

Figure 4-4 PowerValue 11 RT G2, front plate removed
Slide out the battery tray. In case of battery pack, one tray is used (Figure 4-5).
WARNING
VRLA BATTERY BLOCKS CONTAINS HAZARDOUS SUBSTANCES AS:
- INORGANIC LEAD, LEAD COMPOUNDS (Pb – CAS 7439-92-1);
- SULFURIC ACID (CAS 7664-93-9 - CAUSES SEVERE BURNS).
THE CONCENTRATION MAY CHANGE, DEPENDING ON THE MANUFACTURER.
CUTTING OR DAMAGING THE PLASTIC CASE, WILL EXPOSE ENVIROMENT TO
FURTHER HAZARDOUS SUBSTANCES AS LEAD MONOXIDE (CAS 1317-36-8 -HARMFUL
BY INHALATION AND IF SWALLOWED).
Figure 4-5 PowerValue 11 RT G2, battery tray slide out
