ABB PowerValue 11 T Series User Manual

04-3598_ABB_PVA11_T_1-3kVA_EN_REV-B.doc Page 24/29 ABB
Modifications reserved
5 COMMUNICATION
5.1 Interface
A USB port and an intelligent slot are provided for the monitoring software.
5.1.1 USB
The USB port is compliance with USB 1.1 protocol.
5.1.2 AS400 Interface (Option)
PowerValue 11 UPS has AS400 card (an optional accessory) for AS400 communication protocol. Please
contact your local distributor for details. The following is the pin assignment and description of DB-9
connector in AS400 card.
Pin #
Description
I/O
1
UPS Fail
Output
2
Summary Alarm
Output
3
GND
Input
4
Remote Shutdown
Input
5
Common
Input
6
Bypass
Output
7
Battery Low
Output
8
UPS ON
Output
9
Line Loss
Output
Table 6: AS400 Interface I/O

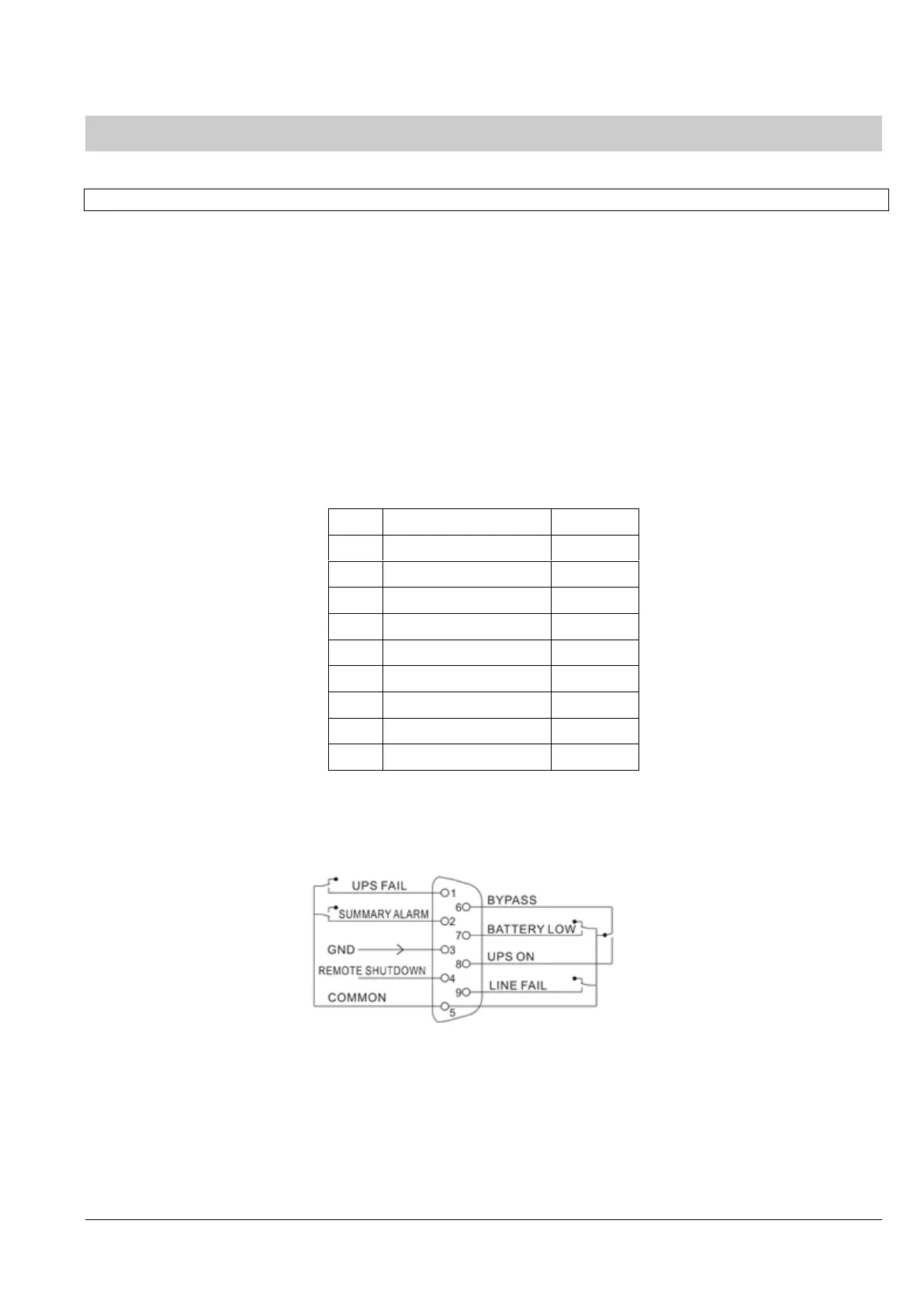

Figure 9: DB-9 Interface of AS400 communication protocol
