04-3598_ABB_PVA11_T_1-3kVA_EN_REV-B.doc Page 18/29 ABB
Modifications reserved
4.1.2 LCD Display
The LCD display gives the user a complete overview on the status of the UPS. It shows information
regarding the input, output, battery, load parameters, working mode and the settings on voltage,
frequency and bypass presence.

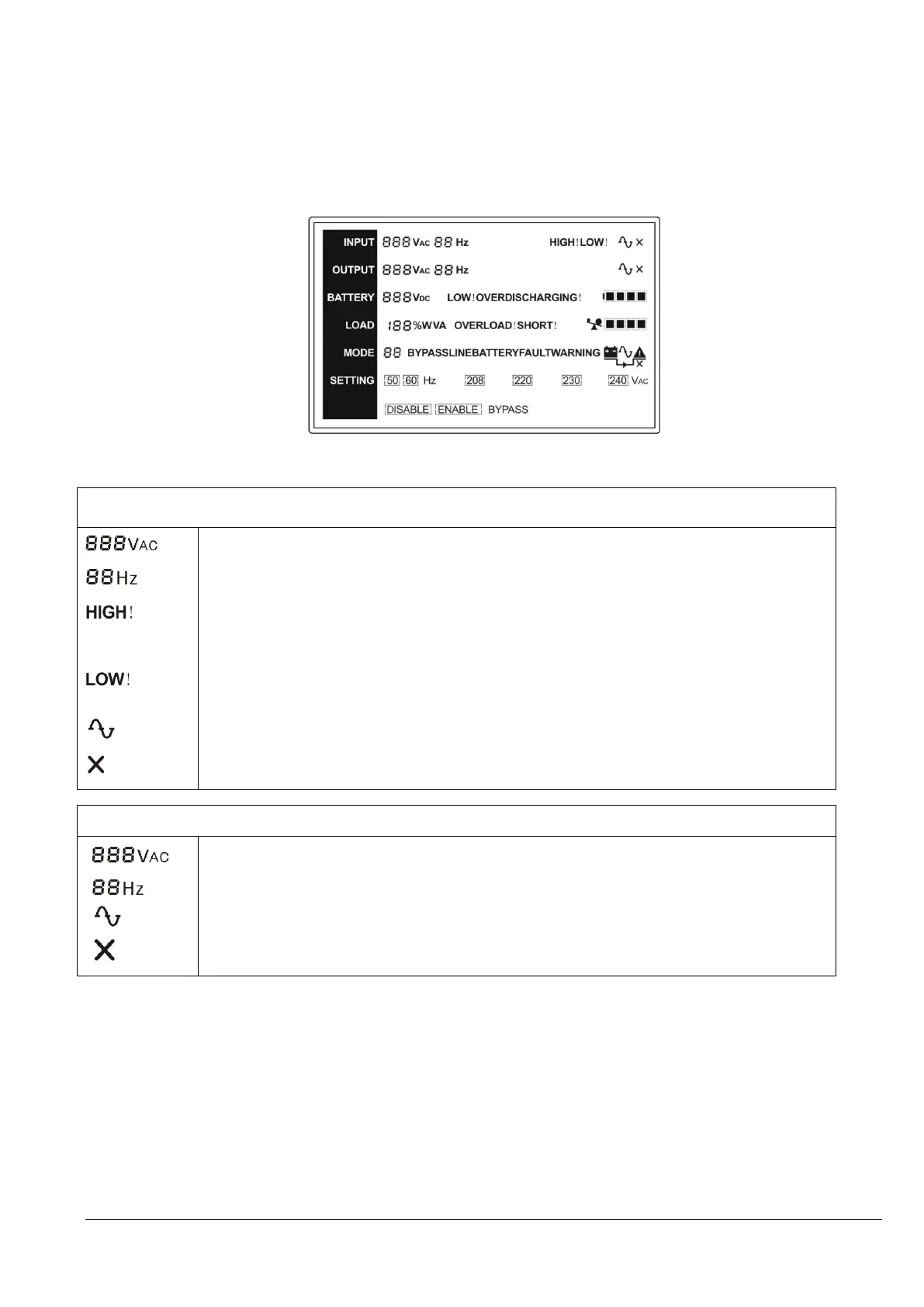

Figure 4: The LCD Display
Indicates the input line voltage value.
Indicates the frequency value of input line voltage.
Indicates that the input line voltage is higher than the specified range: UPS in
Battery mode.
Indicates that the input line voltage is lower than the specified range: UPS in
Battery mode.
Indicates the presence of the mains.
Indicates that the mains is not present
Indicates the UPS output voltage value.
Indicates the frequency of the UPS output voltage
Indicates the presence of power in the output
Indicates that there is no power in the output of the UPS.
(*) In the User Settings, this filed is used to configure the operation mode.
“UPS” means the setting of normal inverter mode (Line mode).
“ECO” means the setting of economy mode.
“CVF” means the setting of converter mode.
The detail illustration of the three modes and the operation of the setting are presented in the following
section.
