ABB REF 54 Series Technical Reference Manual, General

76
1MRS750527-MUM
Feeder Terminal
Technical Reference Manual, General
REF 54_
A050772

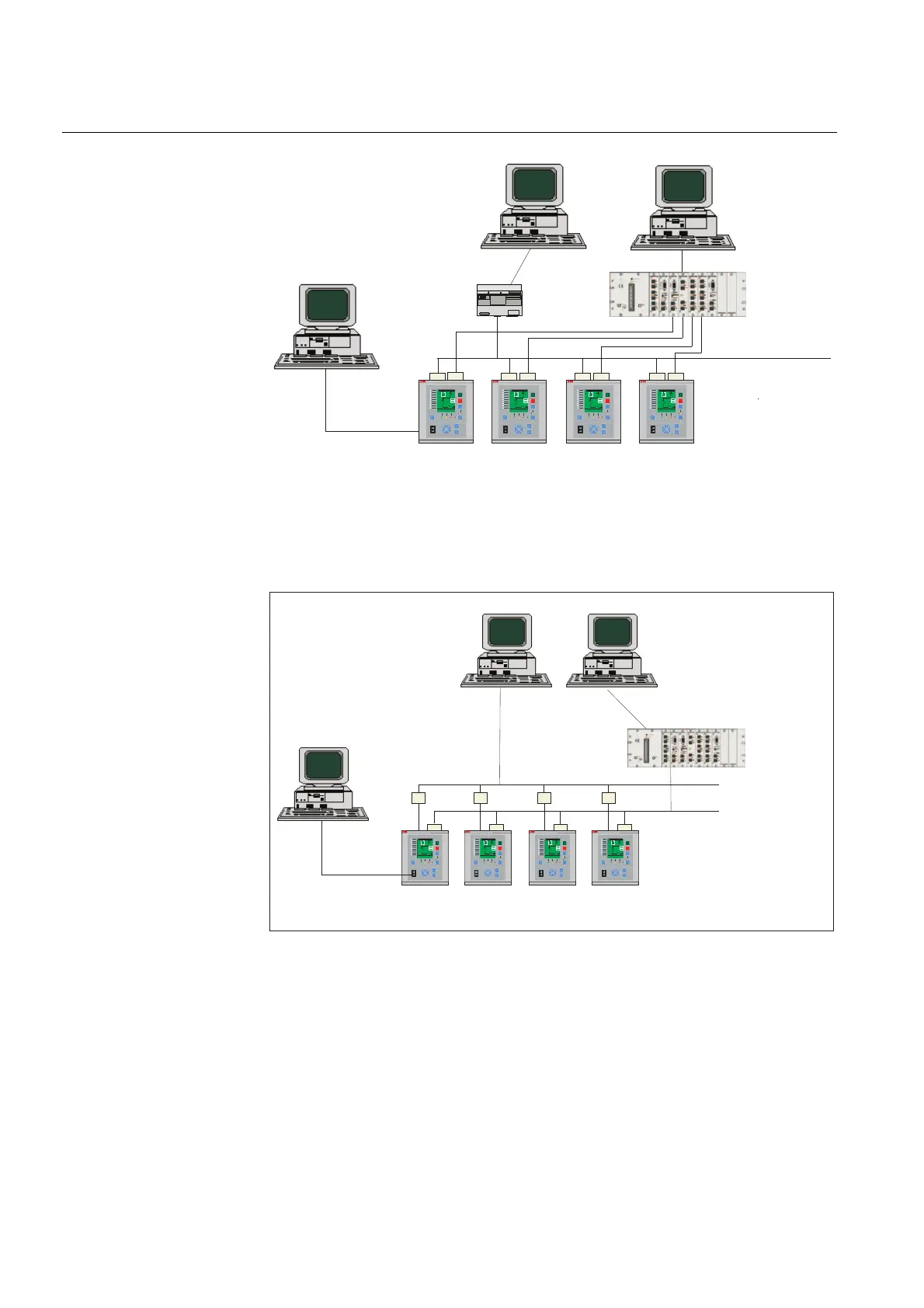

Fig. 5.1.13.9.-2 LON- and SPA-based substation automation system
The REF 54_ feeder terminals are connected to the IEC_103 master device using
RER 123 on connector X3.2.
A050773
Fig. 5.1.13.9.-3 IEC_103- and LON-based substation automation system
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
SPA -Z C 2 2
SPA-ZC 22
SYS 500
COM 500
SMS 510
CAP 505
Protocol 2: SPA
Protocol 3: LON
SPA Fibre-optic
REF 54_ terminals connected via
RER 103 to LON and via RER 123 to SPA
LON Fibre-optic
RER 111 LON
star-coupler
CAP 501/505
SMS 510
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
REF 541
Uaux = 80...265 Vdc/ac
fn = 50 Hz
In = 1/5 A (I)
1MRS xxxxxx
98150
9509
Ion = 1/5 A (Io)
Un = 100/110 V (U)
Uon = 100/110 V (Uo)
21 kV
CB OK
AROFF
SMS 510
CAP 505
IEC_103
MASTER
Protocol 2: IEC_103
Protocol 3: LON
REF 54_ terminals connected
via RER 103 to LON and via RER 123 to IEC_103
RER 111 LON
star-coupler
CAP 501/505
SMS 510
RS-485
Optical
LON
IEC_103
