27. Terminal diagrams

GUID-4BA6AD56-1833-4BA6-B3CC-3C44FD9767BF V1 EN

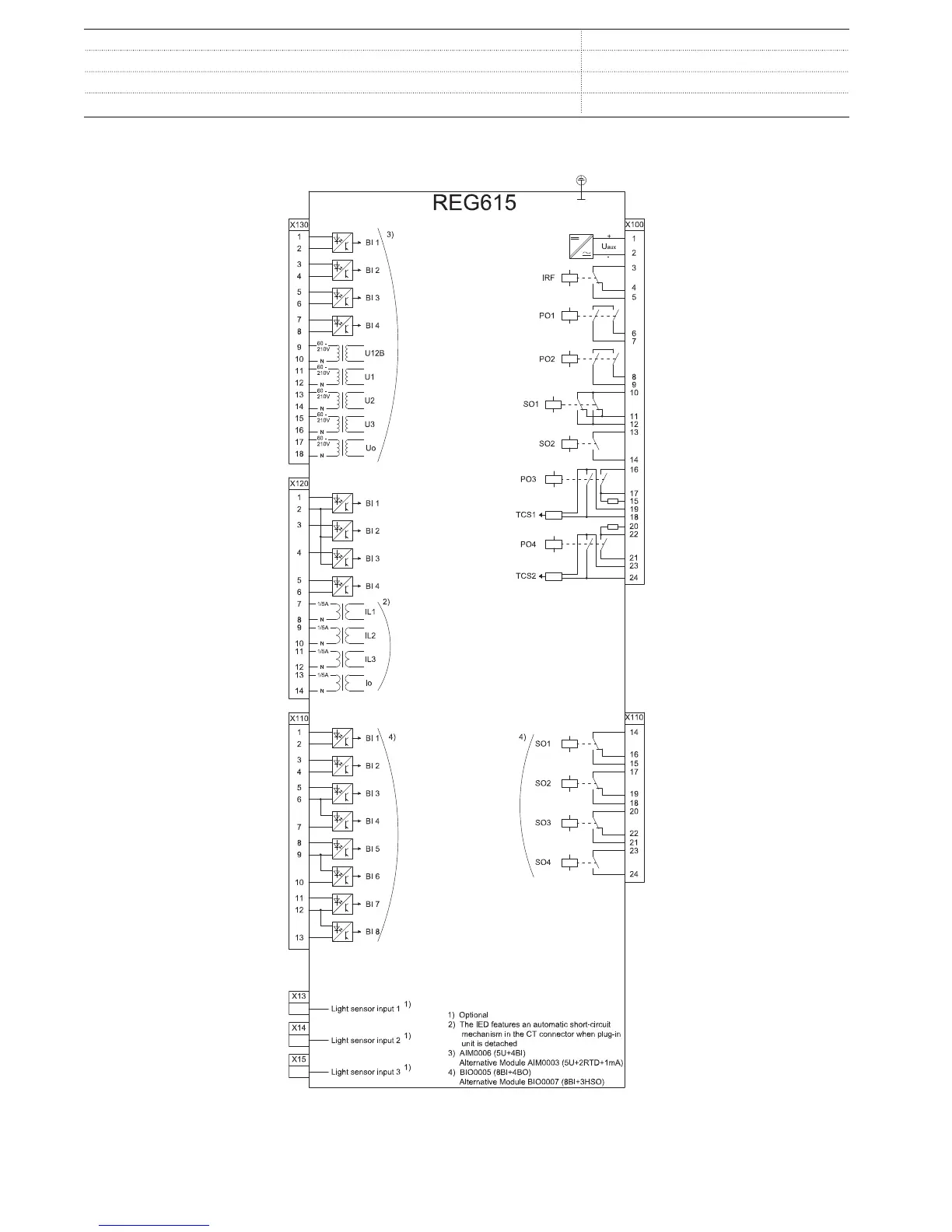

Figure 19. Terminal diagram of standard configuration A

Generator and Interconnection Protection

1MRS758279 B

REG615

Product version: 5.0 FP1

66 ABB
