1
2 3
GUID-4286BBCC-F0E2-4779-9C03-6AAEB2F69143 V2 EN

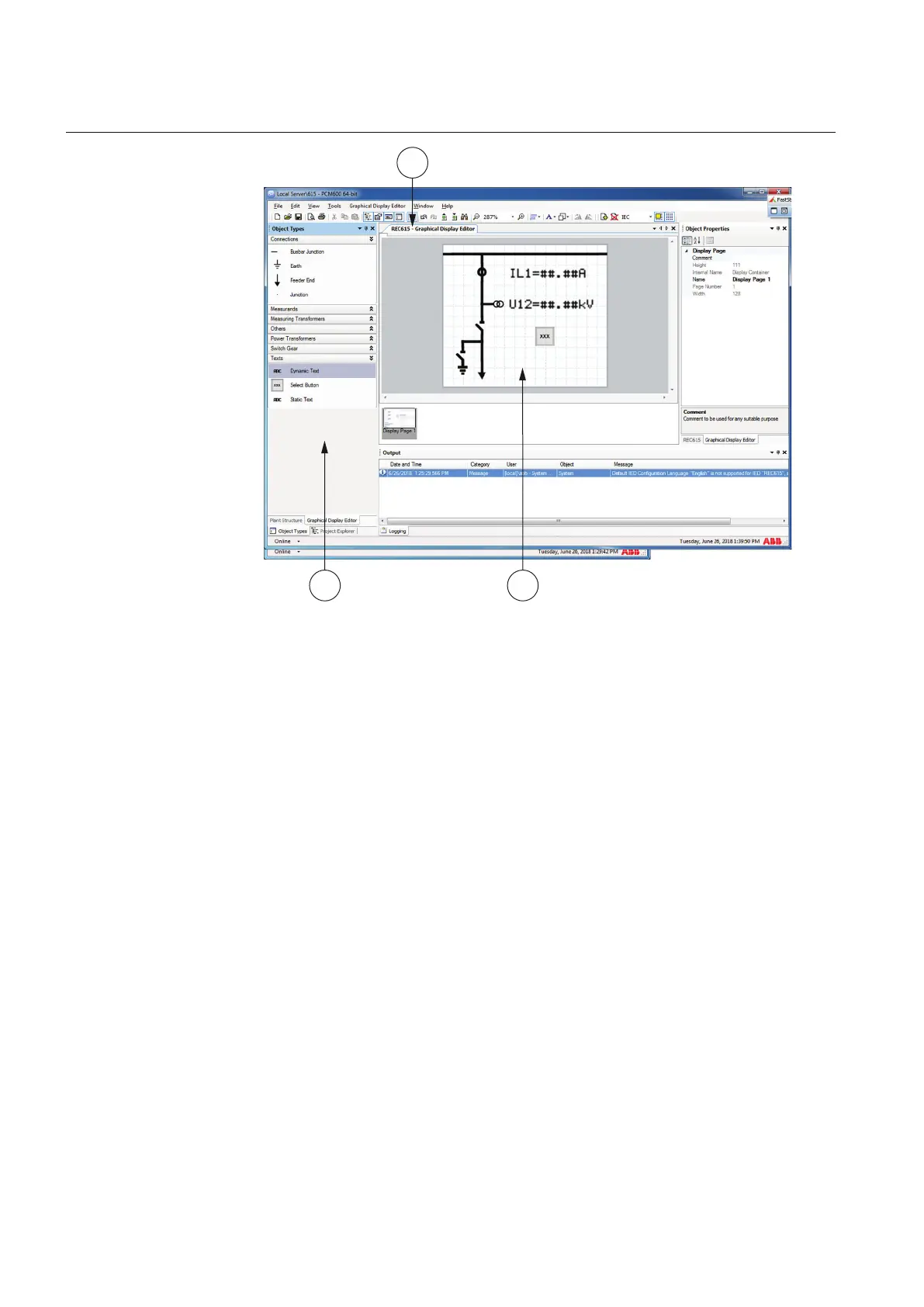

Figure 64: Graphical Display Editor: active view
1
HMI display page
2 Object types
3 Protection relay's HMI display window
The Graphical Display Editor has a stationary symbol library window on the left side
of the view. The window is empty when no page exists for the protection relay. A
default single-line diagram presentation is displayed if standard configurations are
used.
Additional single-line diagram HMI display pages can be added or removed with the
Add Display Page or Remove Display Page commands in the Graphical Display
Editor menu.
6.1.1.1 Display window and sequence order
The HMI pages are handled according to rules.
Section 6 1MRS757810 C
LHMI engineering
92 REC615 and RER615
Engineering Manual
