ABB RVC User Manual

19

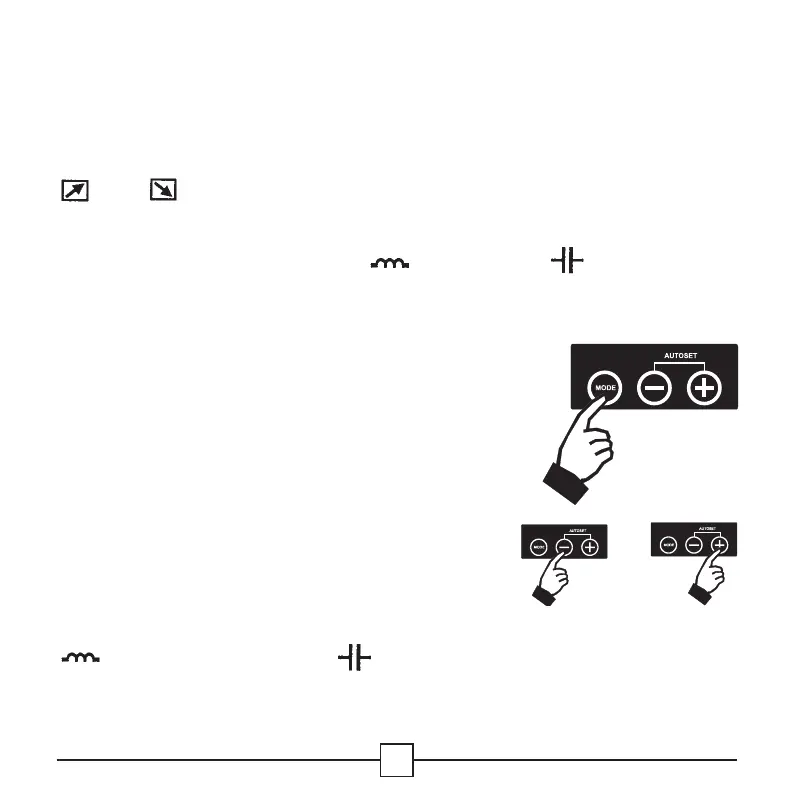

10. Manual Operation
In the AUTO Mode, press on the Mode button once to activate the MAN Mode
Switching on or off is done manually by pressing on the + or – button.
and respectively indicate the demand to switch on or off one step is being
processed.
The display indicates the measured cos
ϕ
, for inductive and for capacitive.
11. Programming
11. A. Manual setting of the parameters
• To navigate between the different modes, use the
Mode button as represented on the flow
chart p. 8.
• To adjust the selected parameter,
use the - or + buttons
1. Target cos
ϕ
indicates an inductive PF and indicates a capacitive PF.
The programmed target cos
ϕ
value is displayed.
ou

ABB RVC Specifications

General

Frequency	50/60 Hz
Temperature Range	-25°C to +55°C
Mounting	Panel Mounting
Manufacturer	ABB
Protection Class	IP20
Communication	Modbus RTU
Number of Steps	4, 6, 8, 12
