1.4. Calibration scales and correct axis position
3HAC 16578-1 Revision: E16
© Copyright 2003-2007 ABB. All rights reserved.
&DOLEUDWLRQVFDOHV,5%

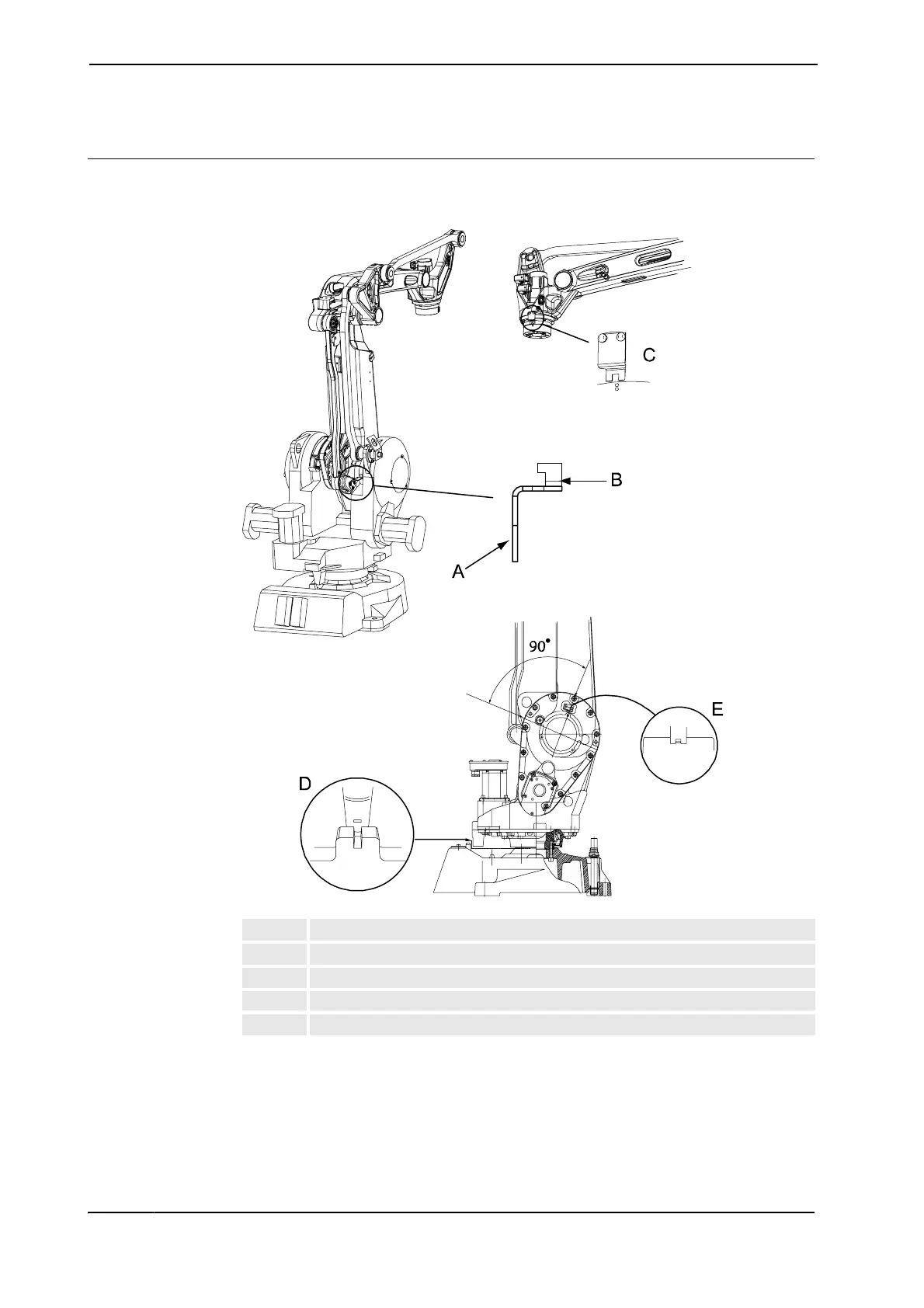

When axis 3 is put in calibration position, the mark on the calibration plate is visible above
the mechanical stop, as shown in the figure below.
xx0500002485
A Mechanical stop of axis 3
B Calibration mark on calibration plate, axis 3
C Calibration plate and marking, axis 6
D Punch, axis 1, 3HAB8223-1
E Punch, axis 2, 3HAB8223-1 (1 marking)
