3UHSDULQJWKHHTXLSPHQW

2.4. Checking of sensors

3HAC 16578-1 Revision: E34

&KHFNLQJRIVHQVRUV

*HQHUDO

This section details how to check the sensors if they have been manually calibrated according

to section &DOLEUDWLRQRIVHQVRUVFDOLEUDWLRQSHQGXOXPDQG/HYHOPHWHURQSDJH.

No check is necessary if the sensors have not been calibrated manually.

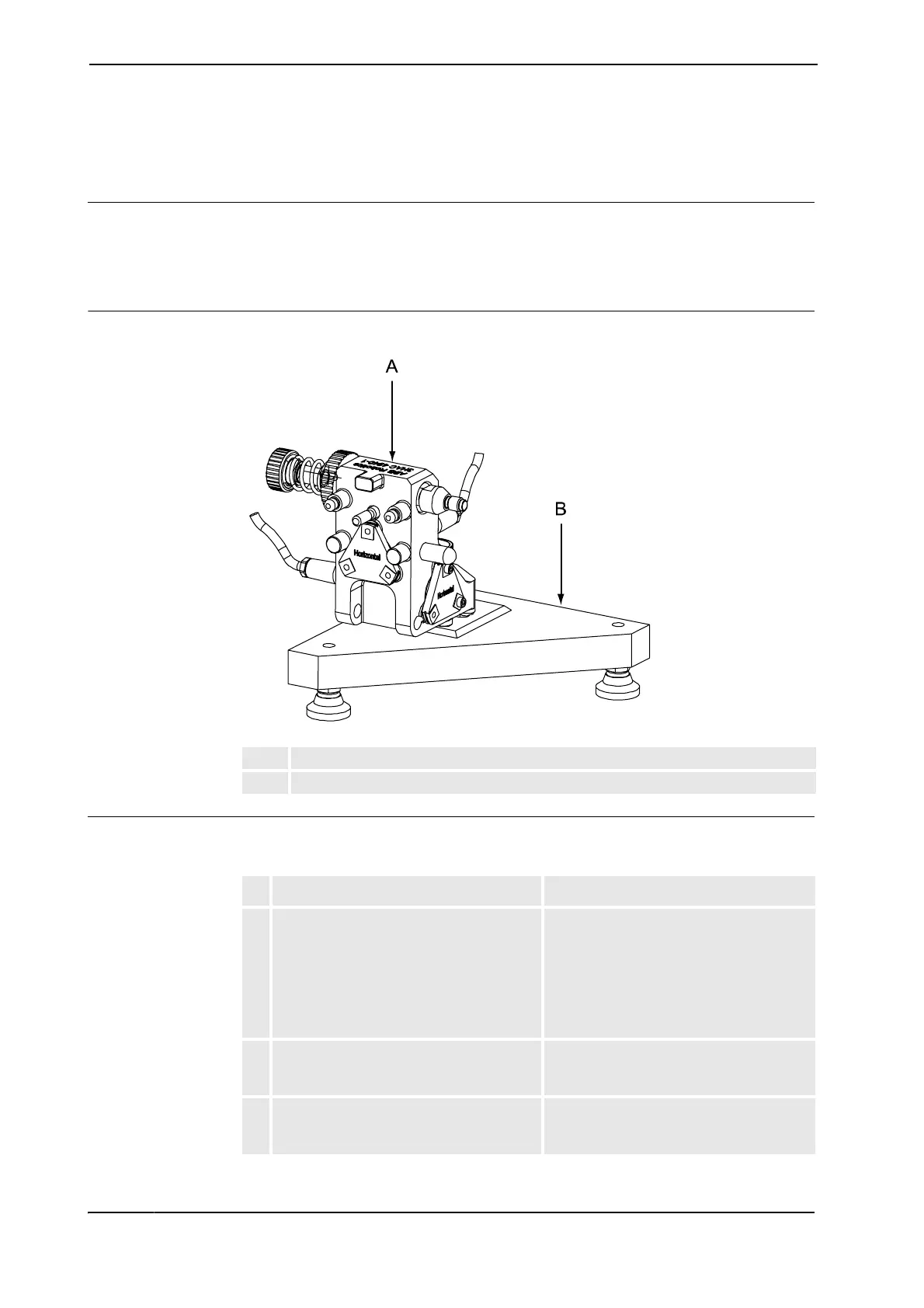

6HQVRUILWWHGWRFDOLEUDWLRQSODWH

xx0300000152

&KHFNRIVHQVRU

The procedure below details how to check individual sensors with the Levelmeter 2000.

A Sensor (calibration pendulum) (3HAC 4540-1)

B Calibration plate (3HAC 020552-002)

$FWLRQ 1RWH,OOXVWUDWLRQ

1. Place the calibration plate on a steady and

flat foundation. Clean the surface of the

calibration plate with isopropanol.

Clean the contact surface of the sensor

with isopropanol.

Fit the sensor in one of the two possible

positions.

2. Adjust the instrument to read the sensor

“A” and “B”.

If the instrument reads anything else,

adjust it as described in step 2- 5,

&DOLEUDWLRQRIVHQVRUVRQSDJH.

3. Wait a couple of seconds for the sensors to

stabilize, read the value shown by the

instrument.

&RQWLQXHVRQQH[WSDJH
