3.2.5. Calibration sensor mounting positions, CalPend
553HAC 16578-1 Revision: E
© Copyright 2003-2007 ABB. All rights reserved.

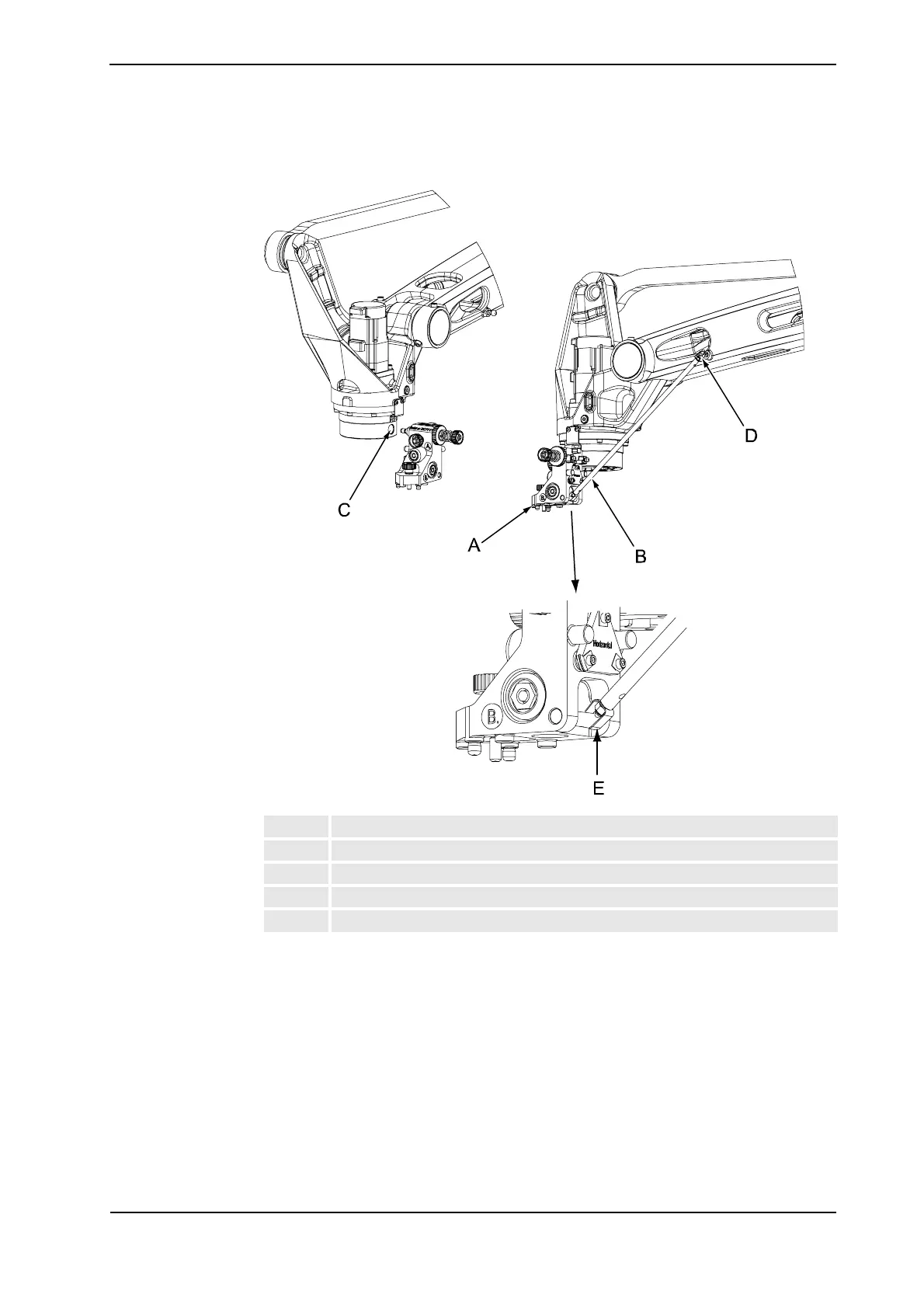

Axis 6, IRB 260
xx0500002481
A Calibration sensor, axis 6
B Calibration bar, attached between the sensor and a ballplug on the robot
C Tapered attachment hole on the turning disk
D Ballplug where to attach the calibration bar
E 1RWH Make sure to fit the calibration bar at the extreme right of the sensor pin.
&RQWLQXHG
&RQWLQXHVRQQH[WSDJH
