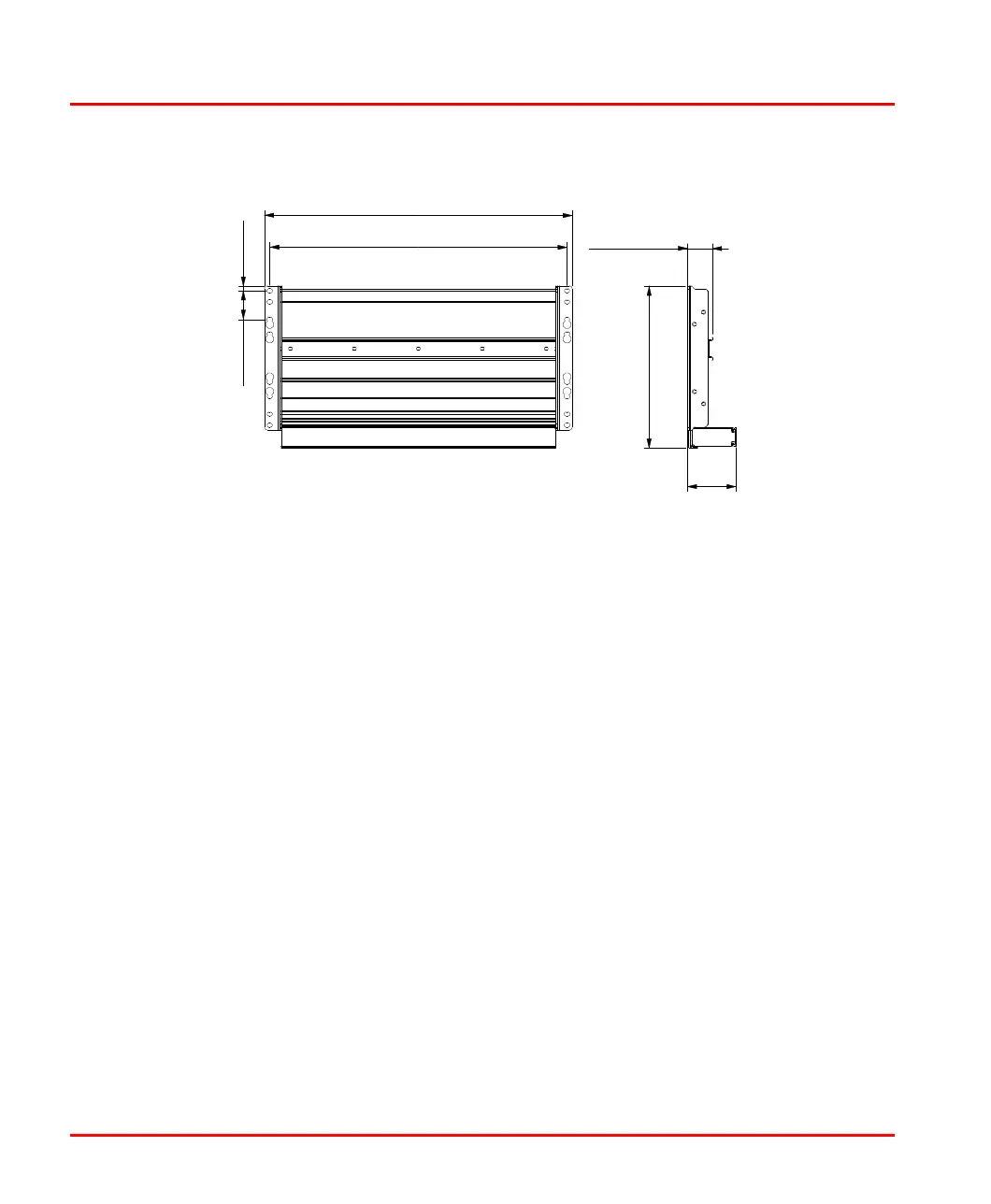

Figure 49. Prefabricated Aluminium Profile Dimensions
482 mm (19")
465 mm (18.31")
7.73 mm
(0.29")
44.45 mm
(1.75")
40 mm (1.57")
253.3 mm (9.97")
76 mm
(2.99")
