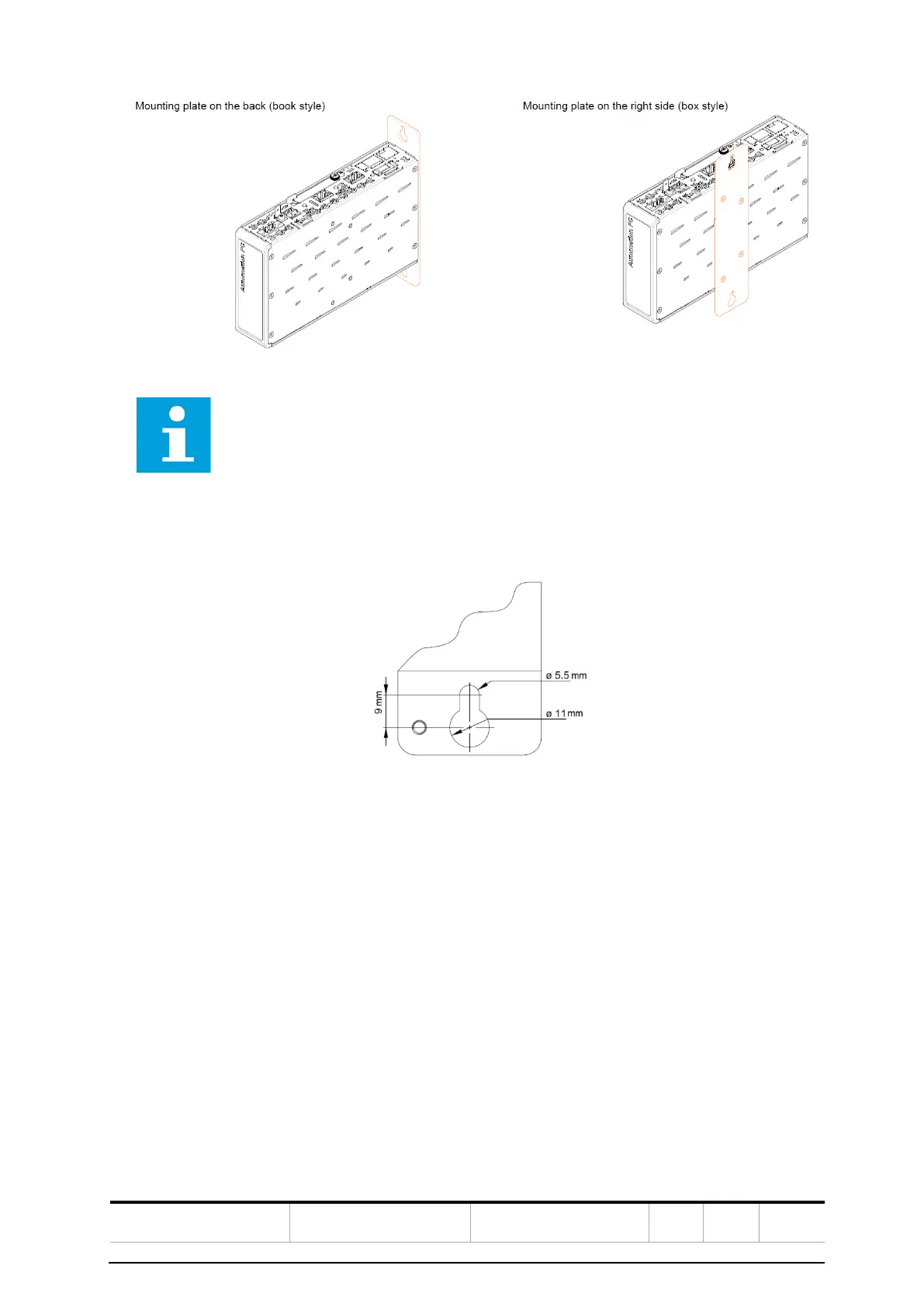

Note: Ensure the TGP QR code is reachable for scanning
The device is installed with the mounting holes located on the mounting plate. The mounting holes
are designed for M5 screws.
4.2.3 Drilling template
Use this template for drilling the wholes for the mounting bracket of the TGP.
