6 Installation
6.1 Mechanical installation
Procedure

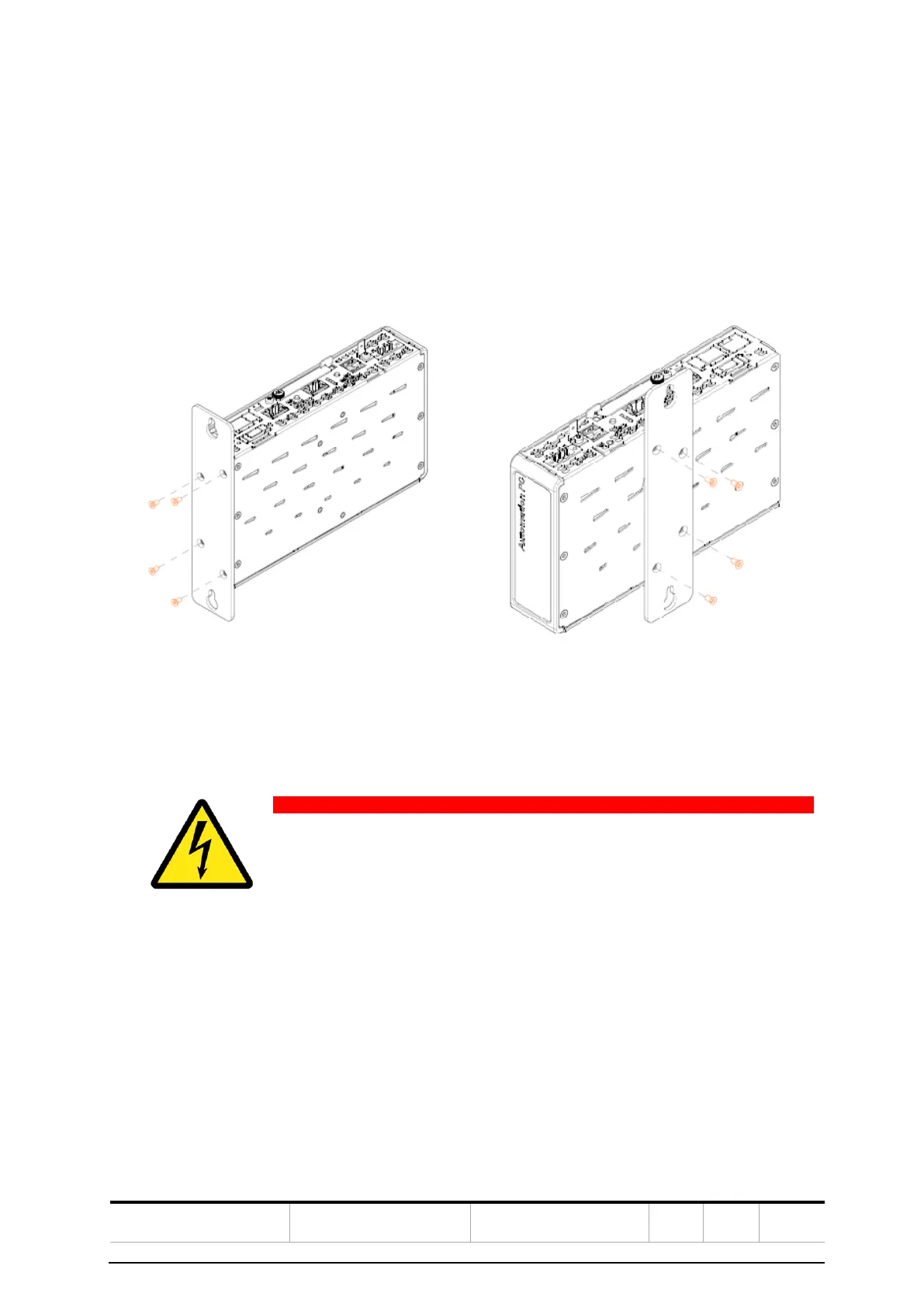

1. Choose the suitable mounting method (book or box style). Refer to section 4.2.2.
2. If necessary, remove the mounting bracket and reinstall it using the selected mounting
method with the Torx screws (T20) removed earlier (max. tightening torque 0.5 Nm).
3. Provide the mounting surface with the necessary holes. For the exact position of the
mounting holes see the drilling templates. Refer to section 4.2.3.
4. Install the TGP with M5 screws (max. tightening torque 0.5 Nm).
6.2 Electrical installation
The entire power supply to the TGP must be interrupted. Before connecting the
DC power cable, it must be checked whether it has been disconnected from the
voltage source (e.g. power supply).
6.2.1 Wiring
Install the DC power cable on the terminal block (power supply connector) as shown in the figure
below. Conductors with a cross section of 0.75 mm2 to 1.5 mm2 and wire end sleeve must be used.
6.2.2 Installing screw clamp terminal block 0TB103.9
Secure the conductors with wire end sleeves in the terminal contacts ➁ as shown in the figure below
and tighten the screw clamp terminals ➀ with a screwdriver (tightening torque max. 0.4 Nm).
When wiring, pay attention to the pinout of the power supply connection on the device!
