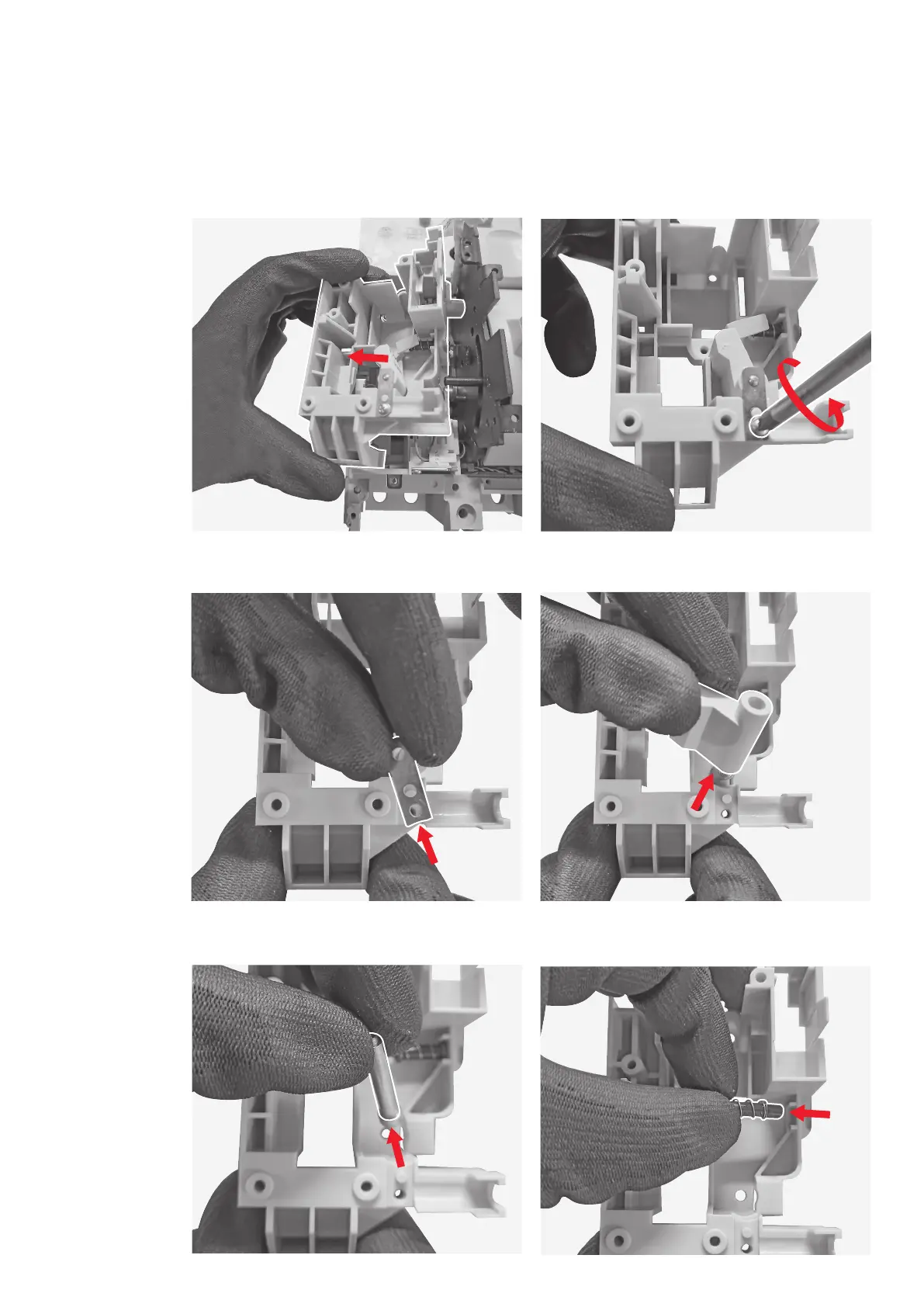

Disassembly instruction tmaX Xt Xt7
41
Manually pull the left base group as indicated
by the arrow and after complete the removal.
43
Manually remove the guide plate pin
42
By means of the cross screwdriver unscrew the
screw fixing the guide plate pin to the left base
group.
44
Manually remove the block lever.
45
Manually remove the pin.
46
Manually remove the pin.
