16
INSTRUCTION HANDBOOK
47

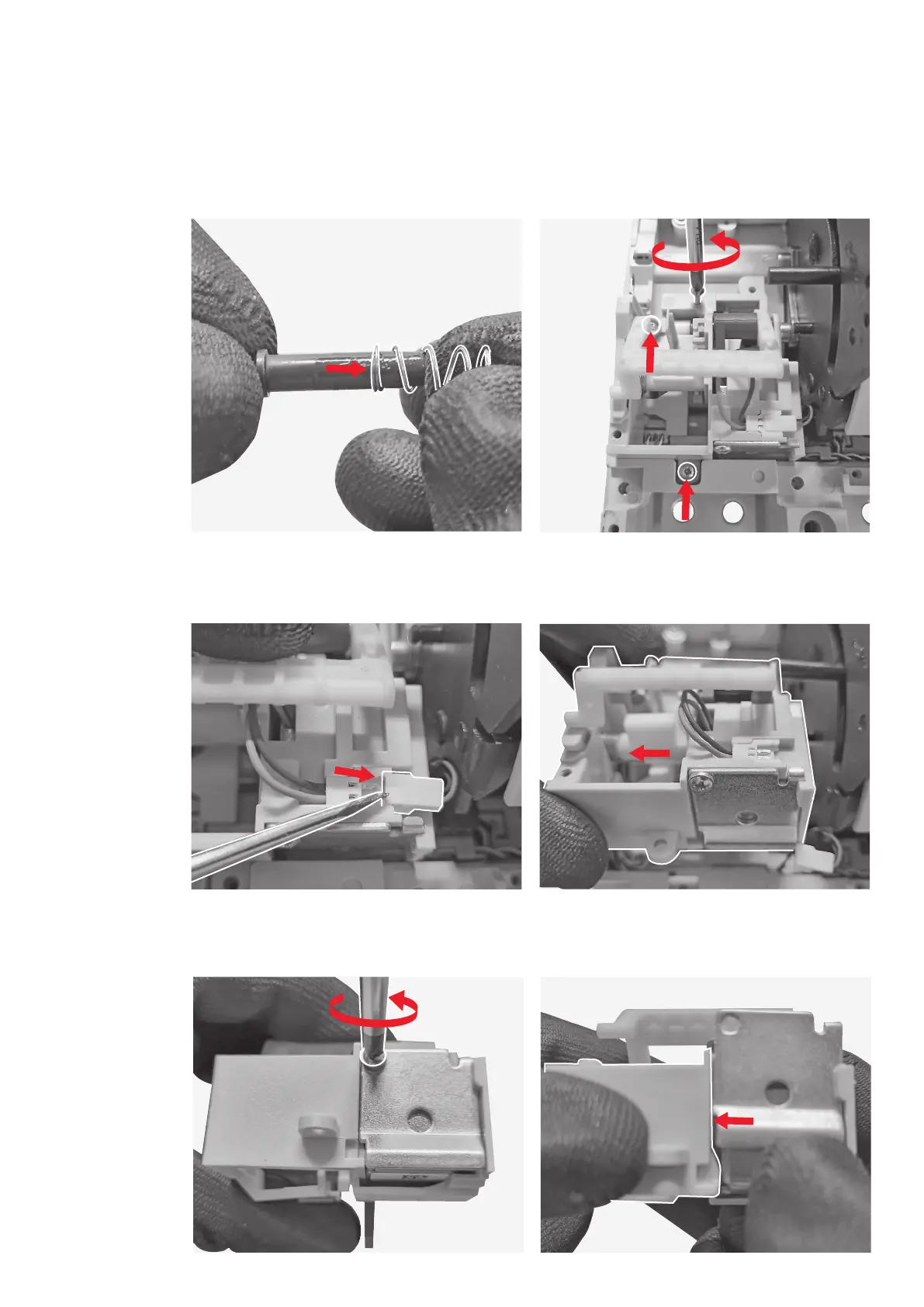

Manually separate the spring from the pin
removed at picture 46.
49
By means of the flat screwdriver unhook the
connector from the trip coil group.
51
By means of the cross screwdriver unscrew the
screw fixing the lower plate to the trip coil.
52
Manually push the lower plate in order to
complete the removal.
48
By means of the cross screwdriver unscrew the
3 screws fixing the trip coil group to the circuit
breaker main structure.
50
Manually remove the trip coil group pulling it in
the direction indicated by the arrow.
