INSTRUCTION HANDBOOK
79

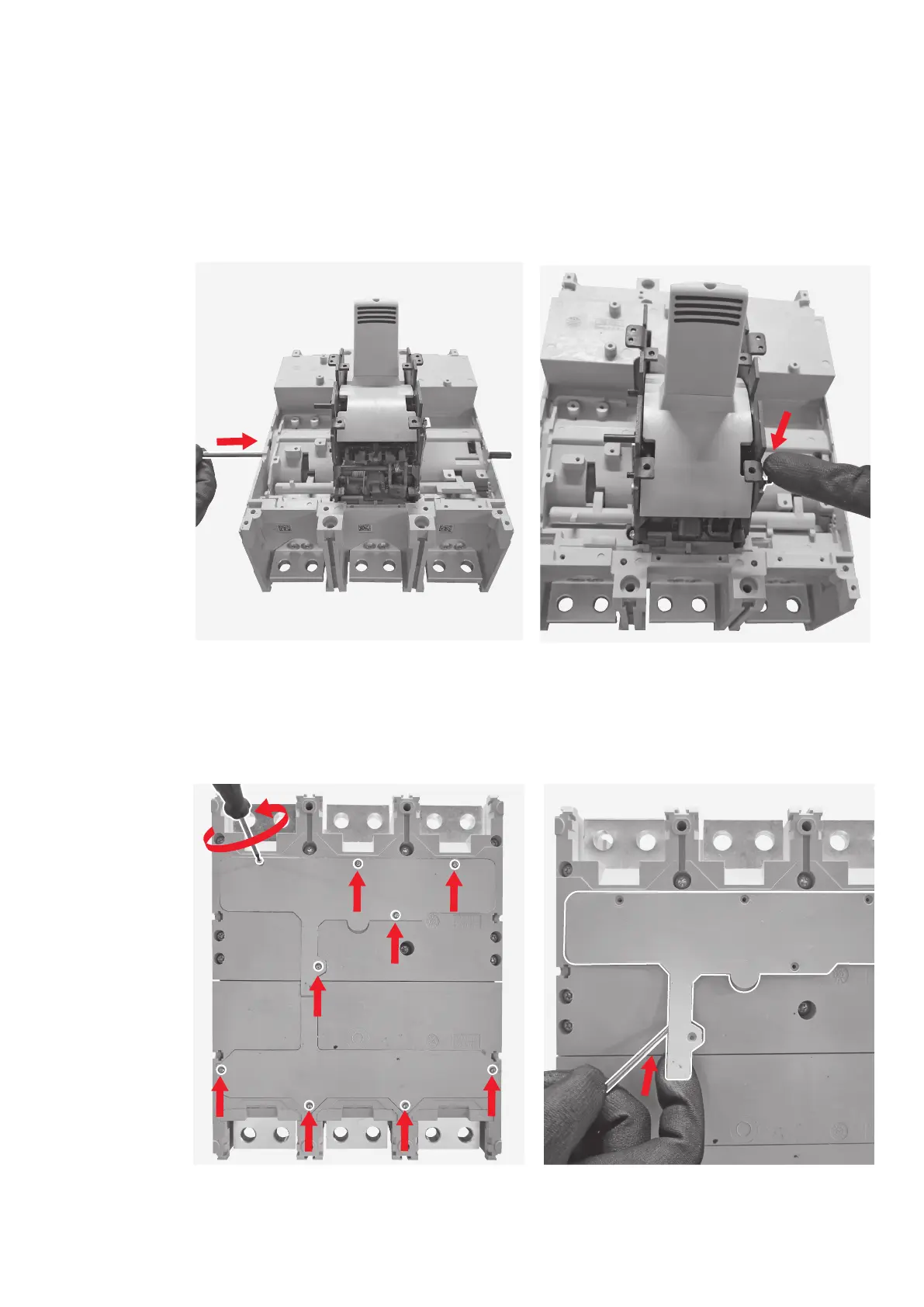

Put the circuit breaker with front up and push
the rod as indicated by the arrow until the pin
comes out from the hole left by the cover cap
on the right side of the circuit breaker and
after remove the rod.
81
By means of the torx key (size 6) unscrew the 9
screws fixing the 2 rear plates mounted on the
back part of the circuit breaker.
80
Manually push the lever mounted on the right
side of the operating mechanism in order to
put the circuit breaker in trip position.
82
By means of the flat screwdriver remove the
rear plate mounted on the upper part of the
circuit breaker.
