23

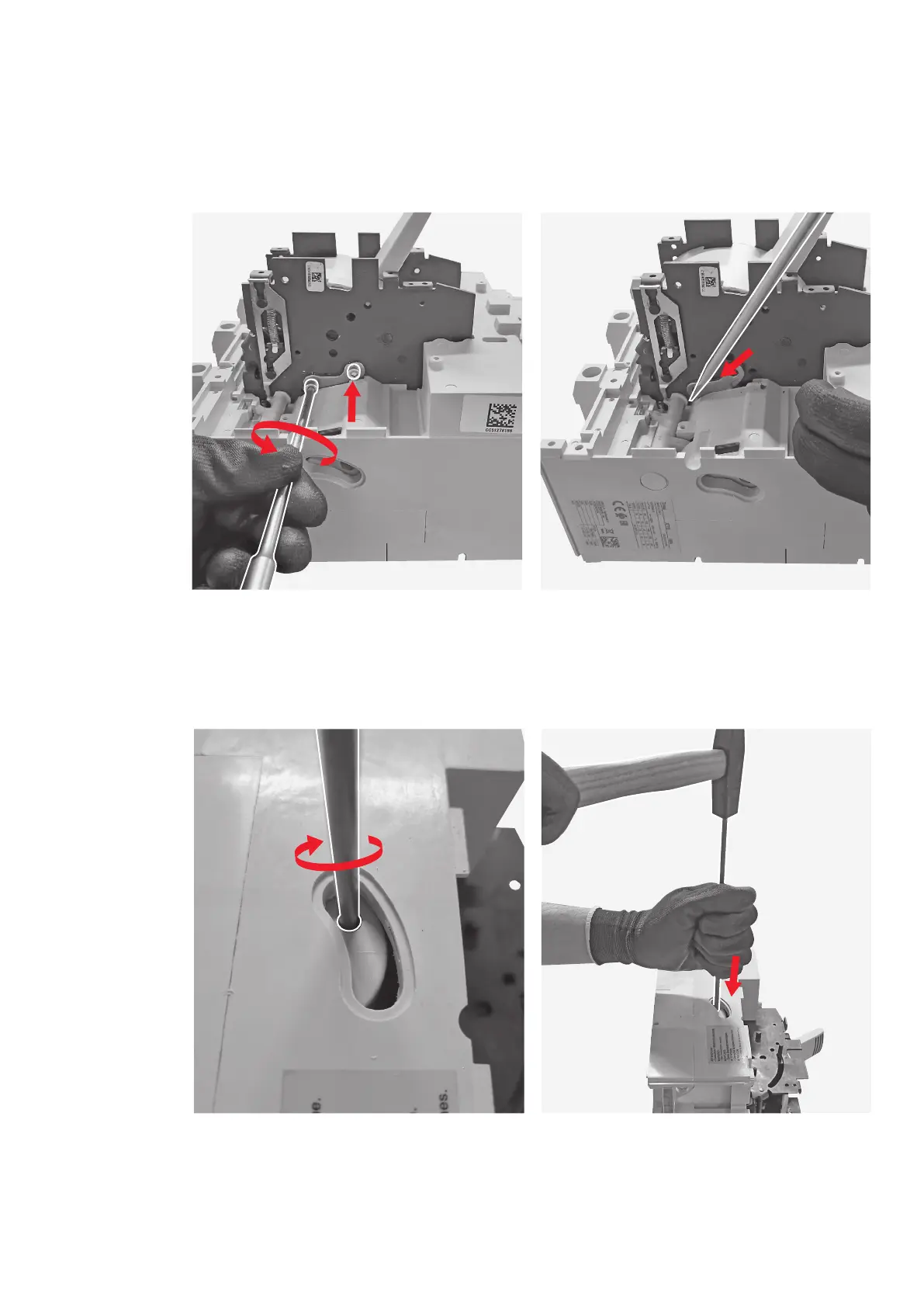

Disassembly instruction tmaX Xt Xt7
75
By means of the allen key unscrew the 2 screws
located on the right side of the operating
mechanism.
77
Put the circuit breaker with the left side up and
insert the rod in the hole left by the cover cap.
78
Push down the rod using the hammer.
76
By means of the flat screwdriver push the shaft
support as indicated by the arrow.
