INSTRUCTION HANDBOOK
10

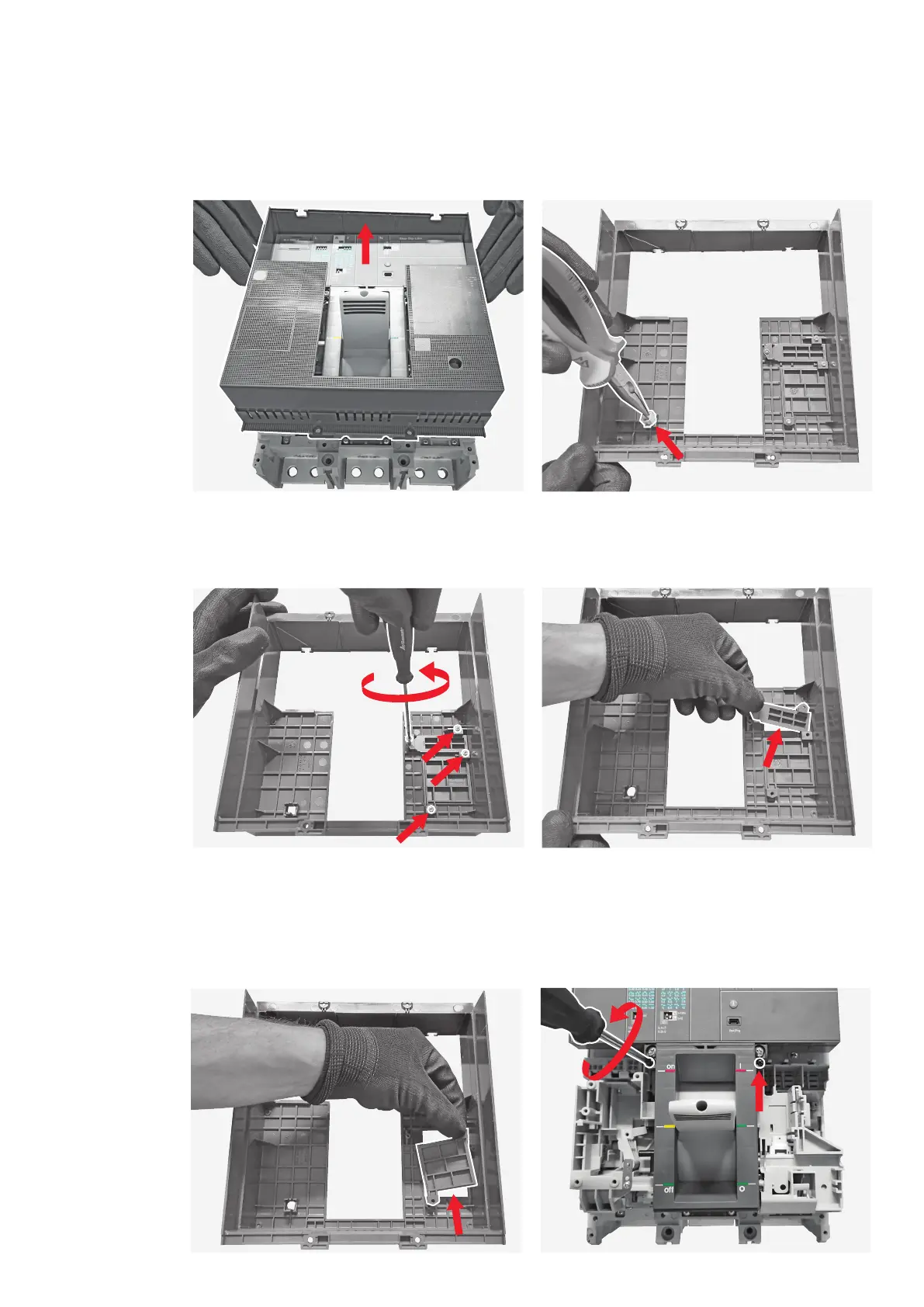

Manually lift the circuit breaker front cover to
complete the removal.
12
By means of the tork key remove the 4 screws
fixing the 2 keylock caps to the circuit breaker
front cover.
11
By means of the pliers remove the trip test
button.
15
By means of the cross screwdriver, unscrew
the 2 screws located in the upper part of the
operating mechanism front cover fixing the
operating mechanism cover to the circuit
breaker main structure.
13
Manually remove the upper keylock cap.
14
Manually remove the lower keylock cap.
