ABB TPL-B Series User Manual

Operation Manual / TPL85-B14/-B15/-B16
Preliminary remarks
1
Layout and function
1.2
Page 6
© Copyright 2016 ABB. All rights reserved.
May 2016 HZTL2491_EN Revision B

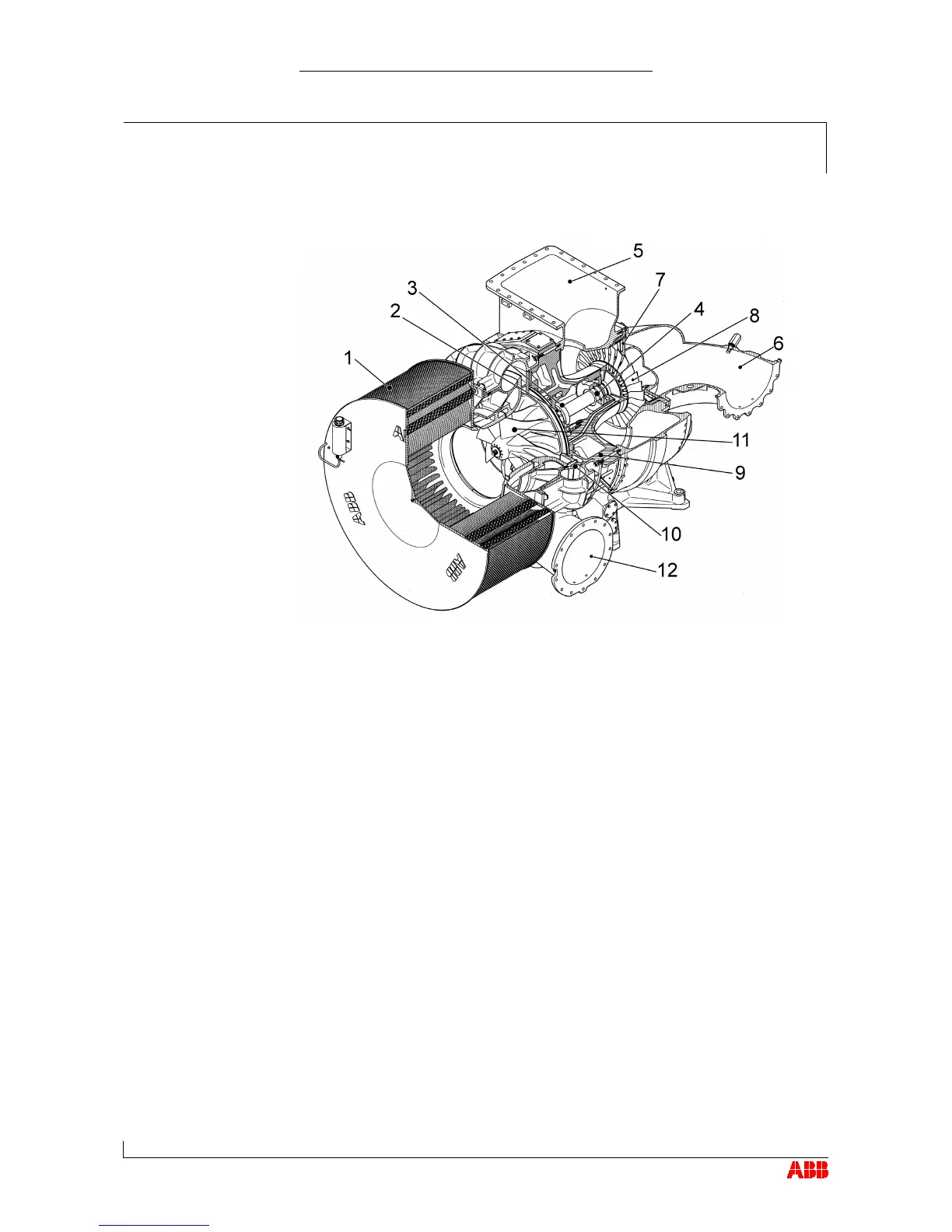

Layout and function
1.2
1 Filter silencer 7
Nozzle ring
2 Radial plain bearing 8
Turbine wheel
3 Thrust bearing 9
Bearing casing
4 Radial plain bearing 10
Diffuser
5 Gas outlet casing 11
Compressor wheel
6 Gas inlet casing 12
Compressor casing
