Assembly Instructions / TPL67-C ... TPL71-C, TPL67VC
4 Installing the turbocharger /
© Copyright 2020 ABB. All rights reserved. HZTL455311P0014_EN Rev.A July 2020
Step 1

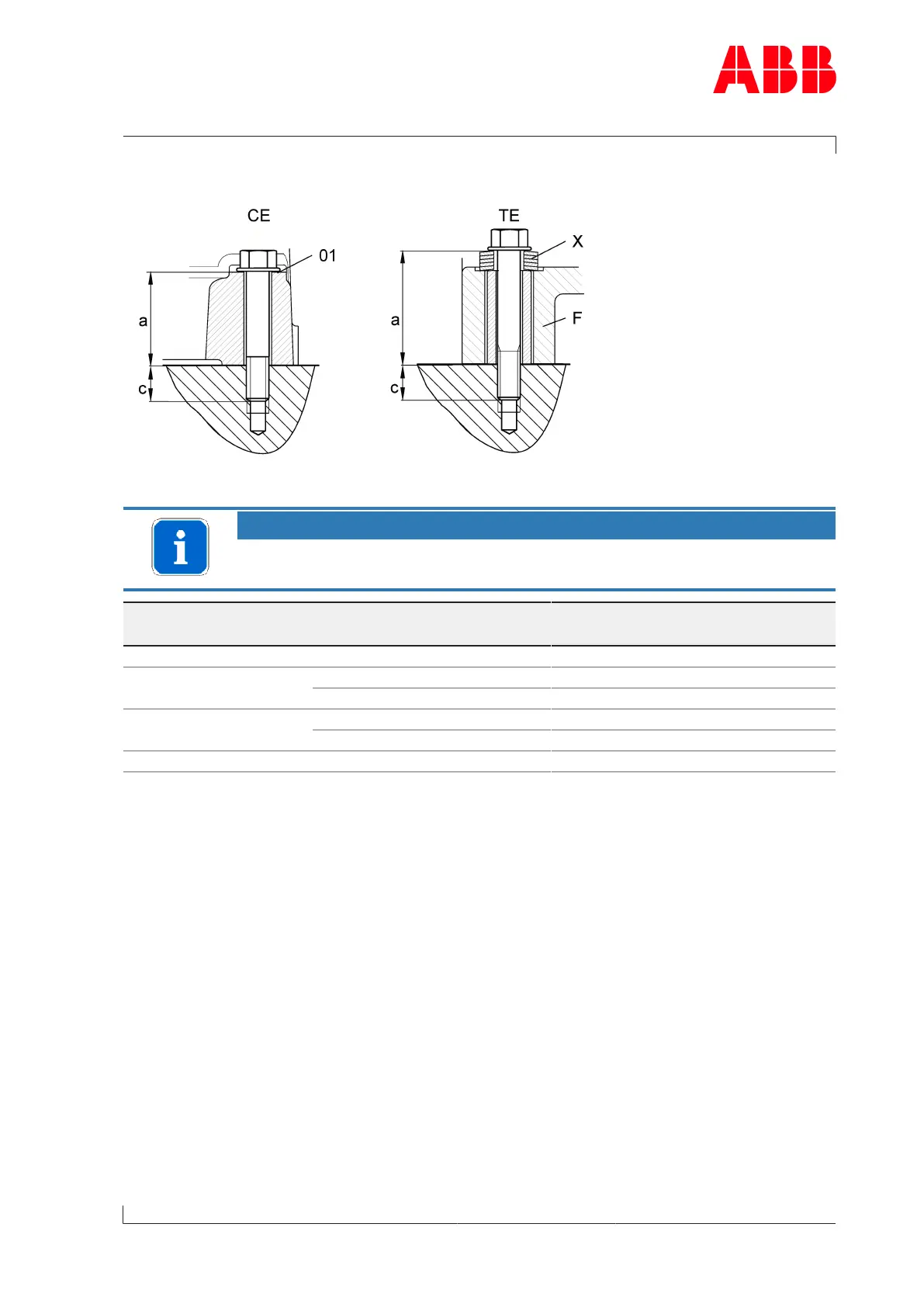

u Determine the screw strength and screw lengths for the assembly using the table below.
NOTICE
The screw-in length of the thread (c) must be at least 1.5 times the nominal
thread diameter.
Product
strength class
TPL67-C
10.9
TPL67VC32
10.9
TPL71-C
10.9
Foot M24 M24 M24
CE a 75/62 75/62 75
c 36 36 36
TE a 92 92 95
c 36 36 36
Number of cup springs (X) 5 5 6
Table7
--------------------------------------------------------------------------------------------------
Step 2:
u Insert the CE foot screws with one washer (01) each. Take into account the thickness of
the washers.
--------------------------------------------------------------------------------------------------
