ABB TPL-C Series Assembly Instructions

Assembly Instructions / TPL67-C ... TPL71-C, TPL67VC
4 Installing the turbocharger / 
© Copyright 2020 ABB. All rights reserved. HZTL455311P0014_EN Rev.A July 2020

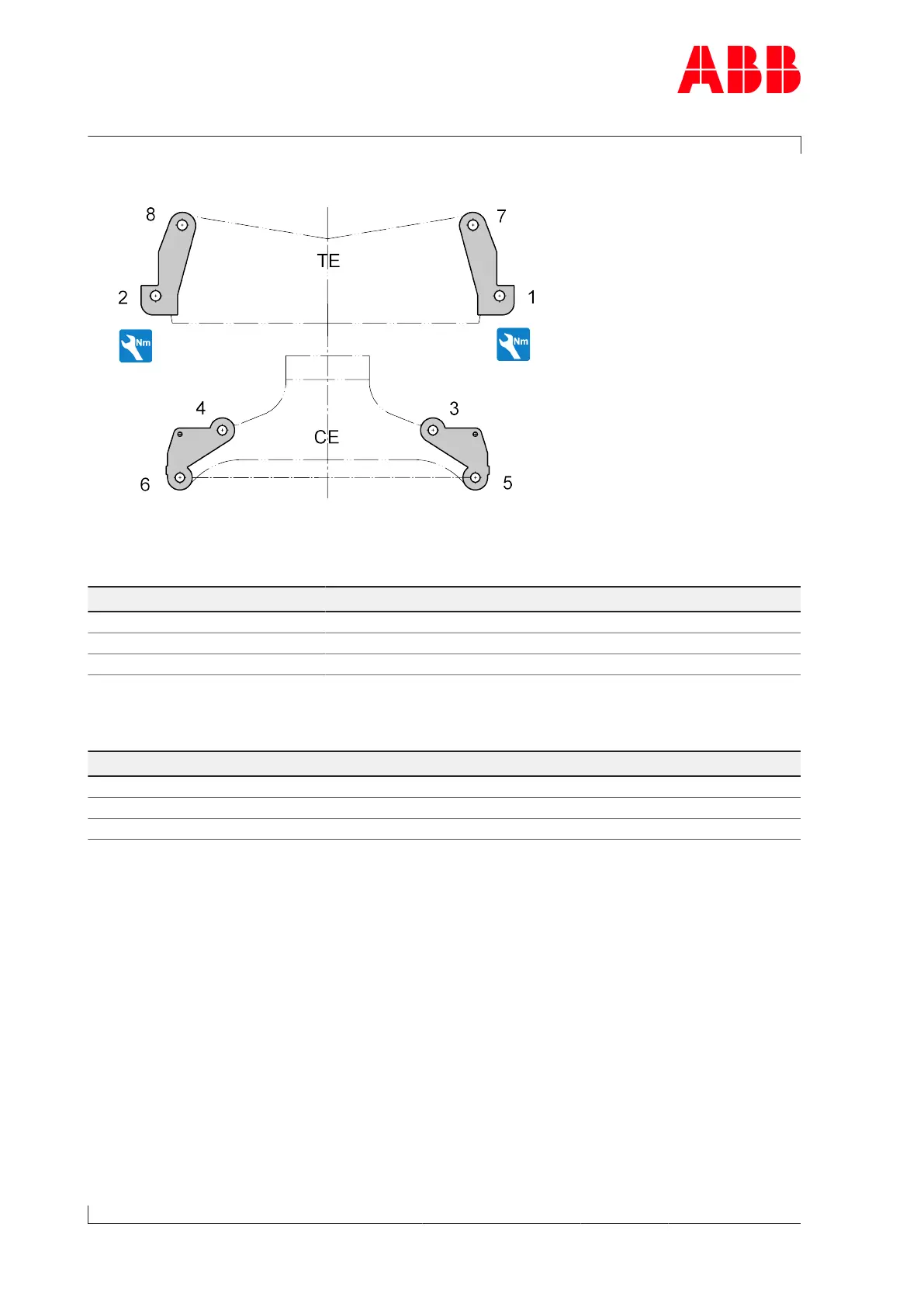

Step 3:
u Tighten the CE foot screws (3, 4, 5, 6) with the pre-tightening torque.
Table: Pre-tightening torque sequence
Gas outlet branch position TPL67-C / TPL67VC32 / TPL71-C
NB000 (045 / 315) 3, 4, 5, 6
NB090 3, 6, 5
NB270 4, 5, 6
Table8
Table: Pre-tightening torque
Product Thread size [mm] Pre-tightening torque [Nm]
TPL67-C M 24 160
TPL67VC32 M 24 160
TPL71-C M 24 160
Table9
--------------------------------------------------------------------------------------------------
Page 12 / 21
