Assembly Instructions / TPL67-C ... TPL71-C, TPL67VC
4 Installing the turbocharger /
© Copyright 2020 ABB. All rights reserved. HZTL455311P0014_EN Rev.A July 2020
Step 4:
CAUTION

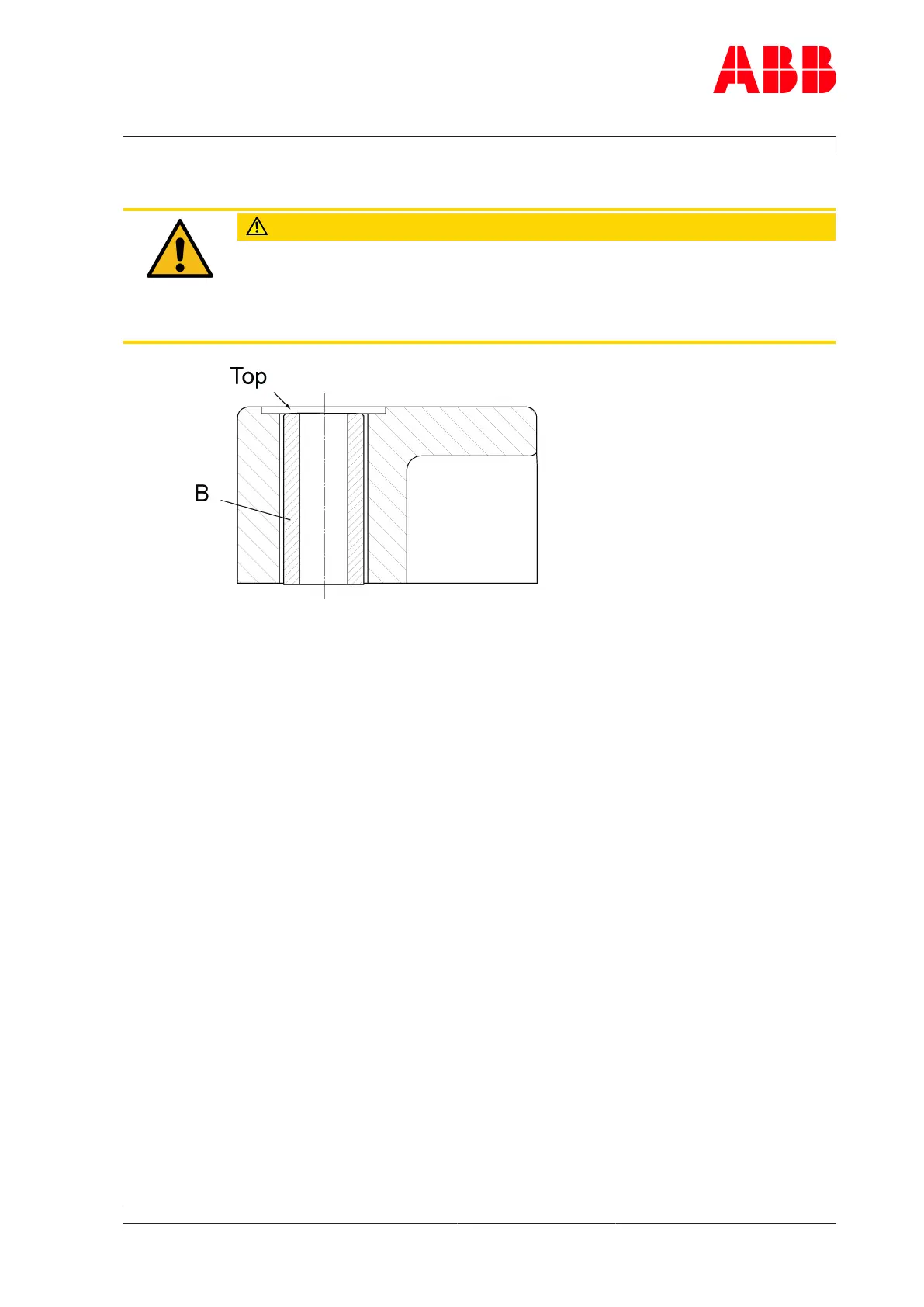

Bush geometry
Changing the geometry of the bushes can cause serious damage to the en-
gine or property.
u Always leave bush (B) in its original condition.
u Insert bushes (B) into TE foot. Make sure marking Top on bush face is upwards.
Step 5:
u In order to determine the position of the bushes, insert the TE foot screws into the
bushes without the cup springs and screw them in by two turns.
--------------------------------------------------------------------------------------------------
Page 13 / 21
