ABB TPL-C Series Assembly Instructions

Assembly Instructions / TPL67-C ... TPL71-C, TPL67VC
4 Installing the turbocharger / 
© Copyright 2020 ABB. All rights reserved. HZTL455311P0014_EN Rev.A July 2020

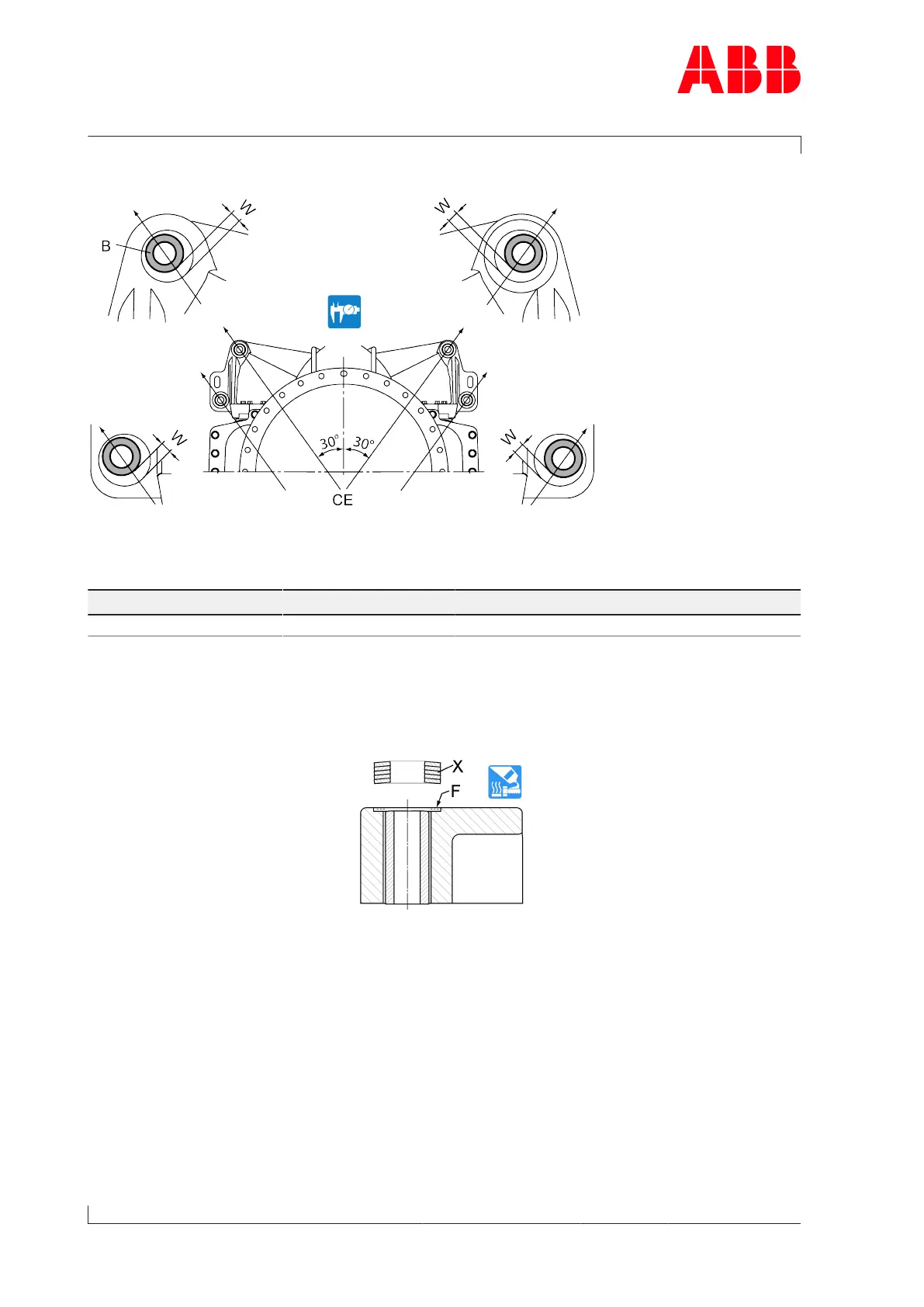

Step 6:
u Check position and clearance (W) of bushes (B).
Table: Minimum bush clearance
Dimension [mm] TPL67-C TPL67VC32 TPL71-C
W
min
3.0 3.0 3.5
Table10
--------------------------------------------------------------------------------------------------
Step 7:
u Remove TE foot screws.
u Grease the contact surface (F) for the cup springs (X) on the foot at the turbine end with
high-temperature grease (do not grease bush surfaces).
--------------------------------------------------------------------------------------------------
Page 14 / 21
