ABB TPL-C Series Assembly Instructions

Assembly Instructions / TPL67-C ... TPL71-C, TPL67VC
4 Installing the turbocharger / 
© Copyright 2020 ABB. All rights reserved. HZTL455311P0014_EN Rev.A July 2020
8th operation:
u Insert number of cup springs (X) into foot at turbine end. (See table for 1st operation.)
--------------------------------------------------------------------------------------------------

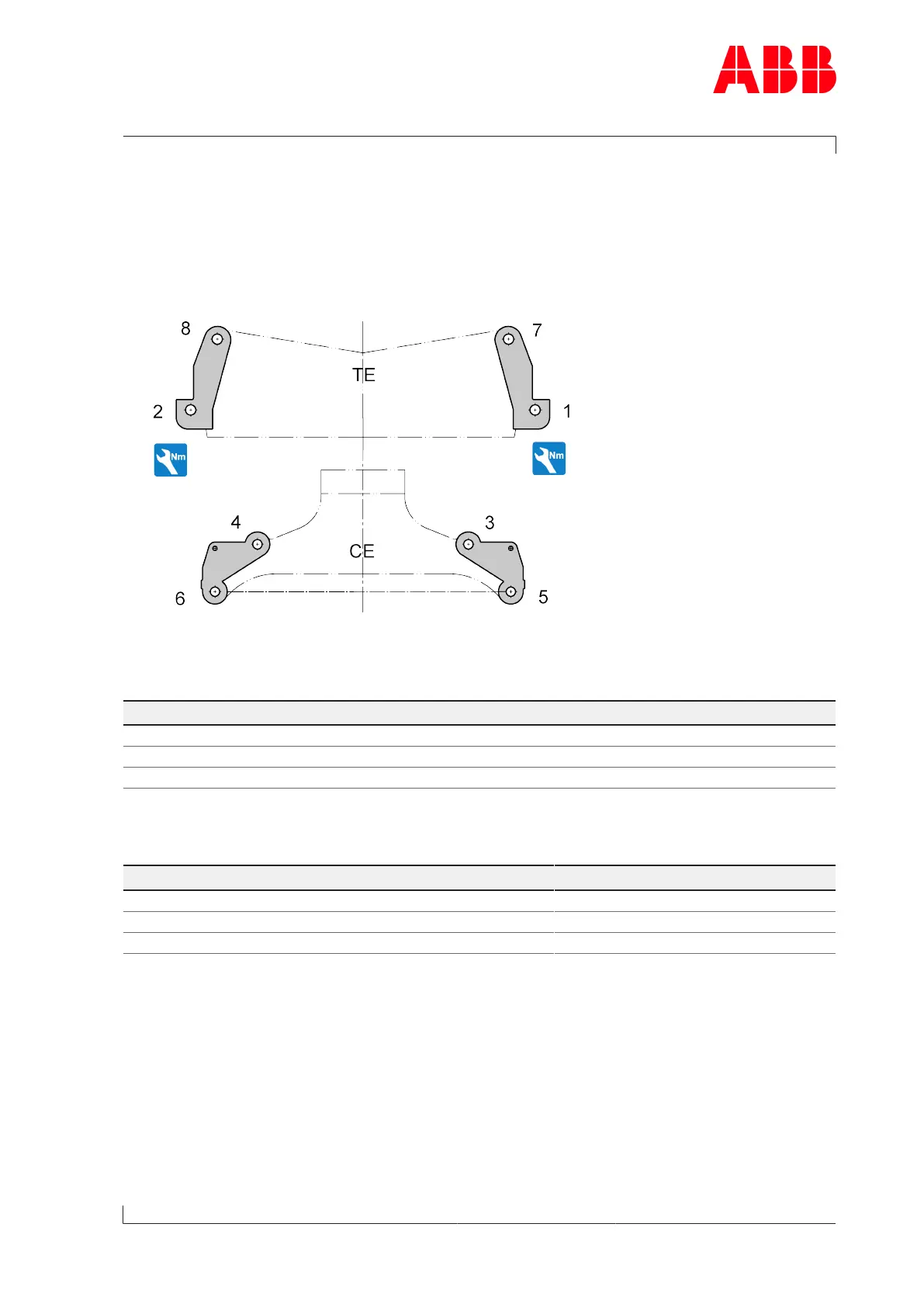

Step 9:
u Insert the TE foot screws (1, 2, 7, 8) and tighten them with the pre-tightening torque.
Table: Pre-tightening torque sequence
Gas outlet branch position TPL67-C / TPL67VC32 / TPL71-C
NB000 (045 / 315) 1, 2, 7, 8
NB090 1, 8, 7
NB270 2, 7, 8
Table11
Table: Pre-tightening torque
Product Thread size [mm] Pre-tightening torque [Nm]
TPL67-C M 24 160
TPL67VC32 M 24 160
TPL71-C M 24 160
Table12
--------------------------------------------------------------------------------------------------
Page 15 / 21
