5.2 Cleaning the filter silencer

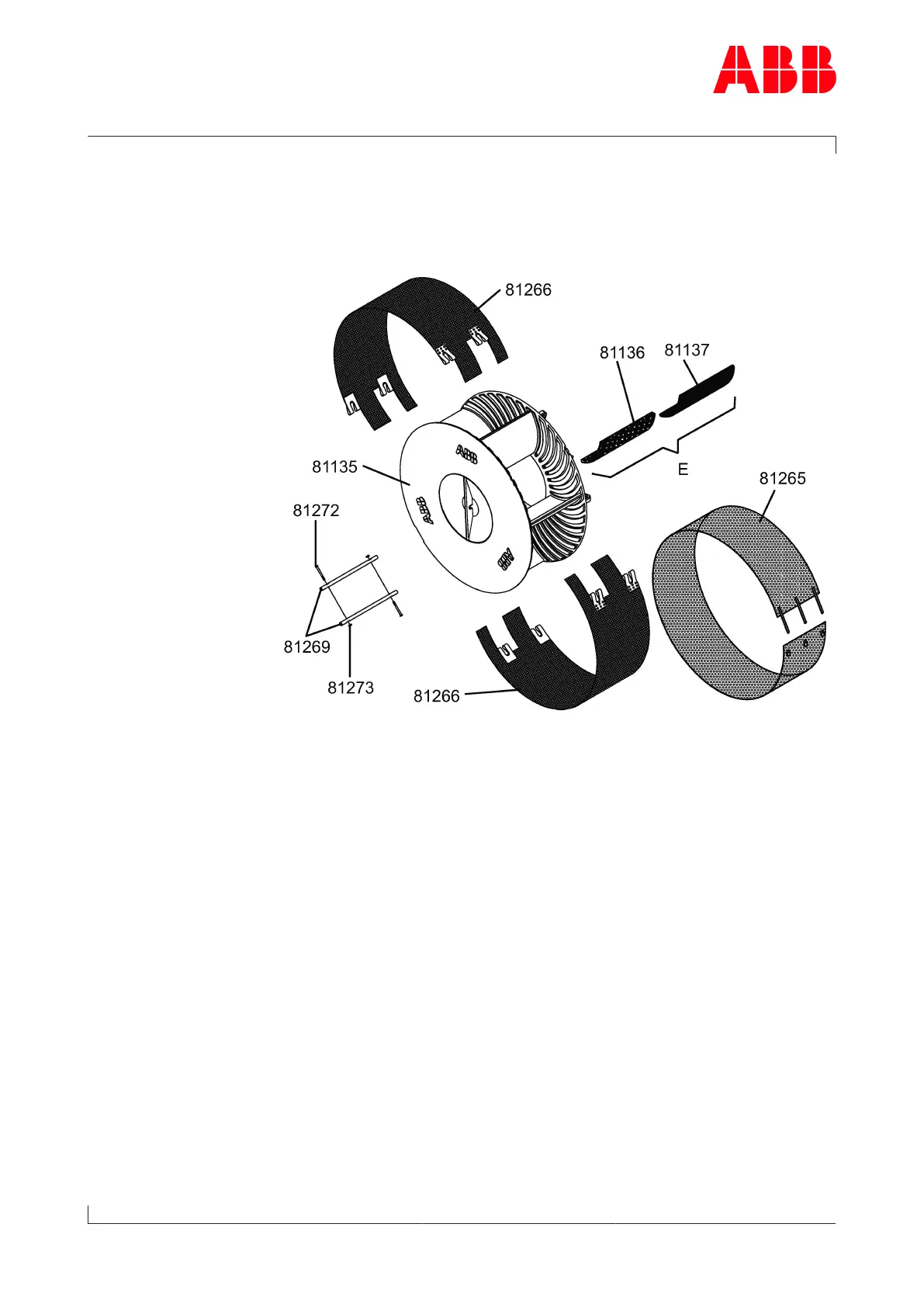

5.2.1 Filter silencer and connecting rod
81265 Filter ring (if provided) 81136 Absorption segment
81269 Connecting rods 81137 Sheet-metal covering
81266 Cover grid 81135 Filter silencer body
81272 Screw 81273 Lock nut
E Insert unit = absorption segment + sheetmetal covering
