Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
8 Disassembly and assembly / 8.2 Module weights
© Copyright 2020 . All rights reserved. HZTL2498_EN Rev.F December 2020
8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.

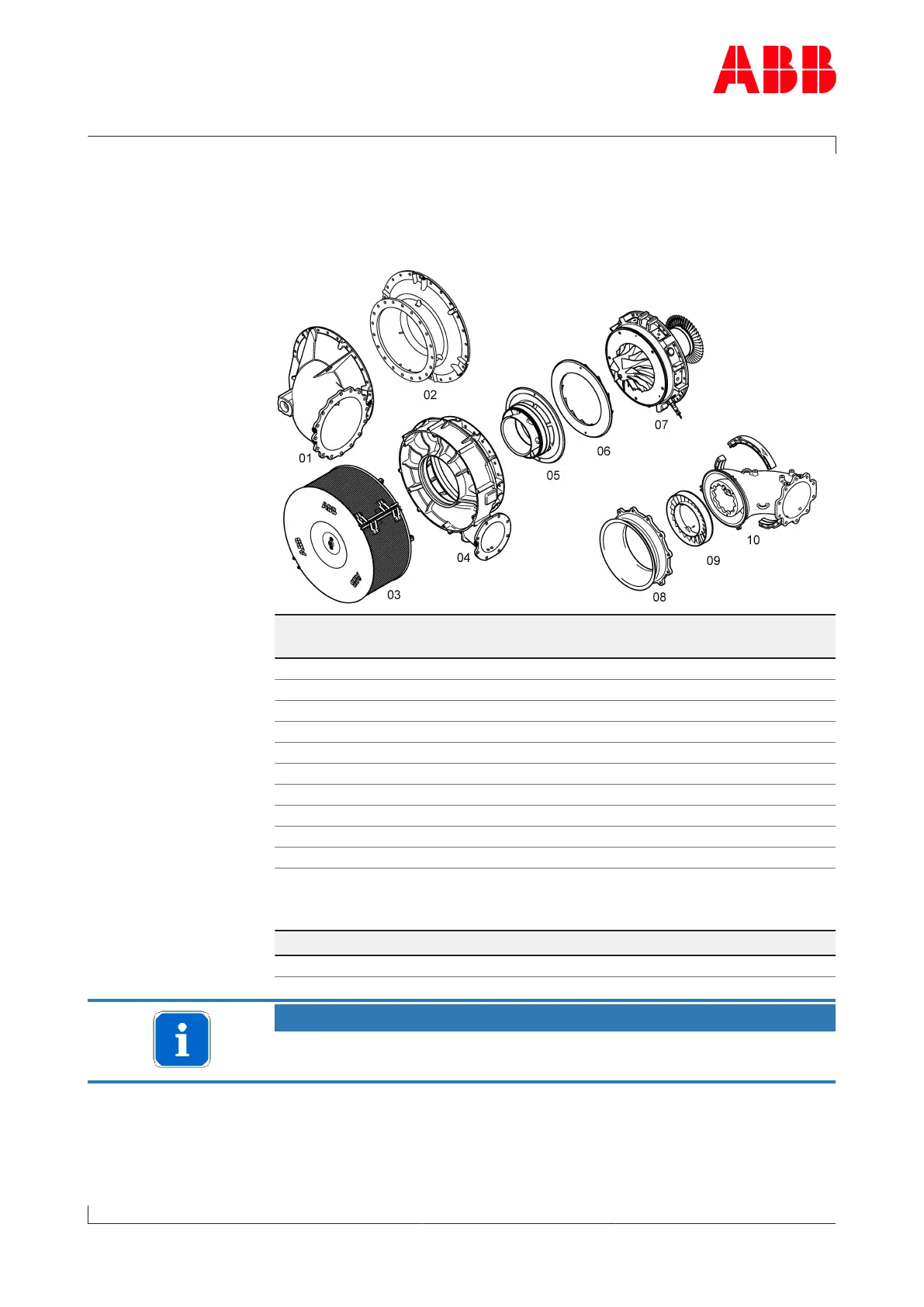

Assemblies
Weights [kg]
Designation TPL65-A32 / -A33 / -
A36
TPL69-A32 / -
A33
01 Radial air suction branch 5050 70
02 Axial air suction branch 3535 - -
03 Filter silencer 130130 220
04 Compressor casing 180180 260
05 Wall insert 4040 65
06 Diffuser 1919 35
07 Cartridge group 290290 360
08 Turbine diffuser 3030 50
09 Nozzle ring 1010 17
10 Gas inlet casing, radial 5050 55
Complete compressor casing
Weight [kg]
TPL65-A32 / -A33 / -A36 TPL69-A32 / -A33
Complete compressor casing 240 360
NOTICE
The total weight of the complete compressor casing is an addition of
the weights of the compressor casing, the diffuser and the wall insert.
