Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
7 Removal and installation / 7.2 Removing the turbocharger
© Copyright 2020 . All rights reserved. HZTL2498_EN Rev.F December 2020

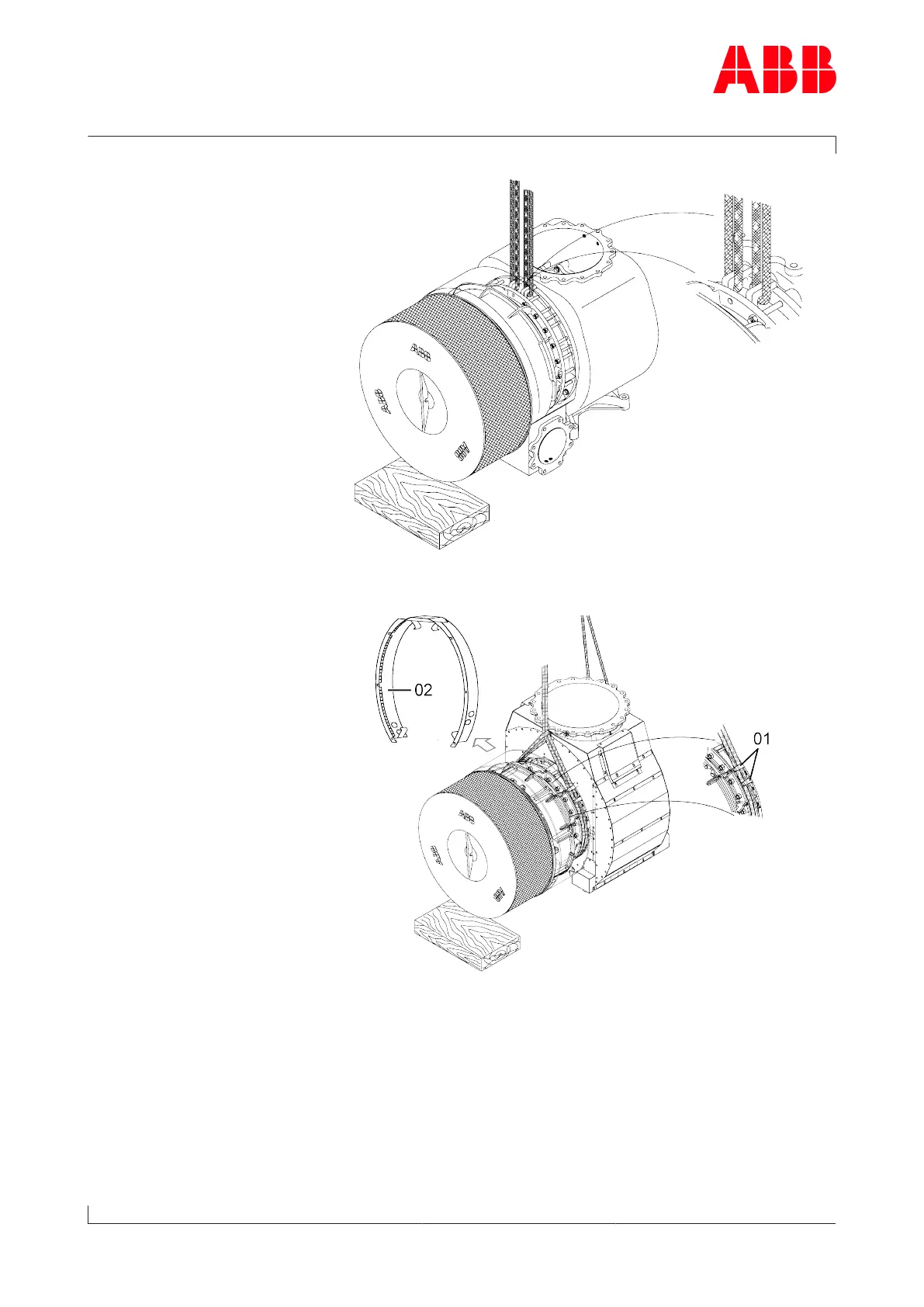

u Fasten separate lifting gear to each of the two ribs on the bearing
casing provided for this purpose.
w Ribs (01) not in the middle at the top:
u Completely remove the bearing casing insulation (02) and place a
sling around the bearing casing.
u Loosen the fixing screws at the foot.
u Lift the turbocharger off the engine and set it down to one side.
Page 75 / 123
