Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2020 . All rights reserved. HZTL2498_EN Rev.F December 2020

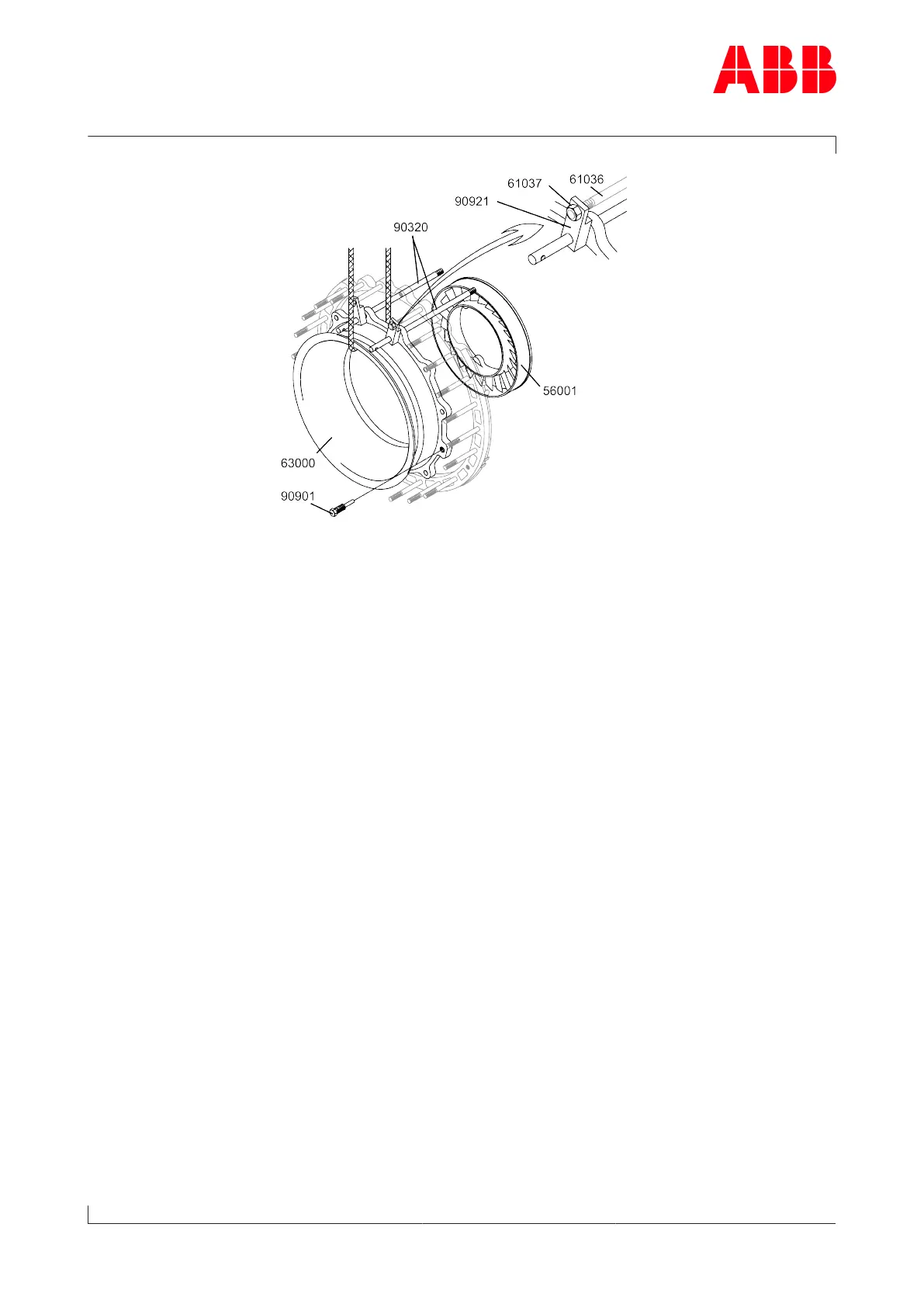

u Replace two screws (61056) in the gas outlet casing with two guide
studs (90320) in the upper section of the turbine diffuser (63000).
u Fit clamps (90921) over guide studs (90320) and fit studs (61036).
u To secure the work, screw nuts (61037) onto start of stud threads
(61036).
u Remove the remaining screws (61056) and Verbus Ripp® washers
(61057).
u Press the turbine diffuser (63000) free using the press-off screws
(90901) and pull it out until the clamp (90921) is touching the nut
(61037).
u Loop the lifting gear around the turbine diffuser (63000) and secure it
to a crane.
u Remove nuts (61037) and clamps (90921).
u Withdraw the turbine diffuser all the way and remove it.
u Remove guide stud (90320).
u Pull nozzle ring (56001) forward and remove.
Installing the turbine diffuser and nozzle ring
u Install the nozzle ring and turbine diffuser in the reverse order of re-
moval.
u Coat the screw threads with high-temperature grease.
u Align nozzle ring with holes or cams in gas inlet casing.
