ABB TPL67-C Series - Cleaning the Filter Silencer

Operation Manual / TPL67-C.. - TPL71-C..
Maintenance
5
Cleaning the filter silencer
5.2
Page 52
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D
Cleaning the filter silencer
5.2

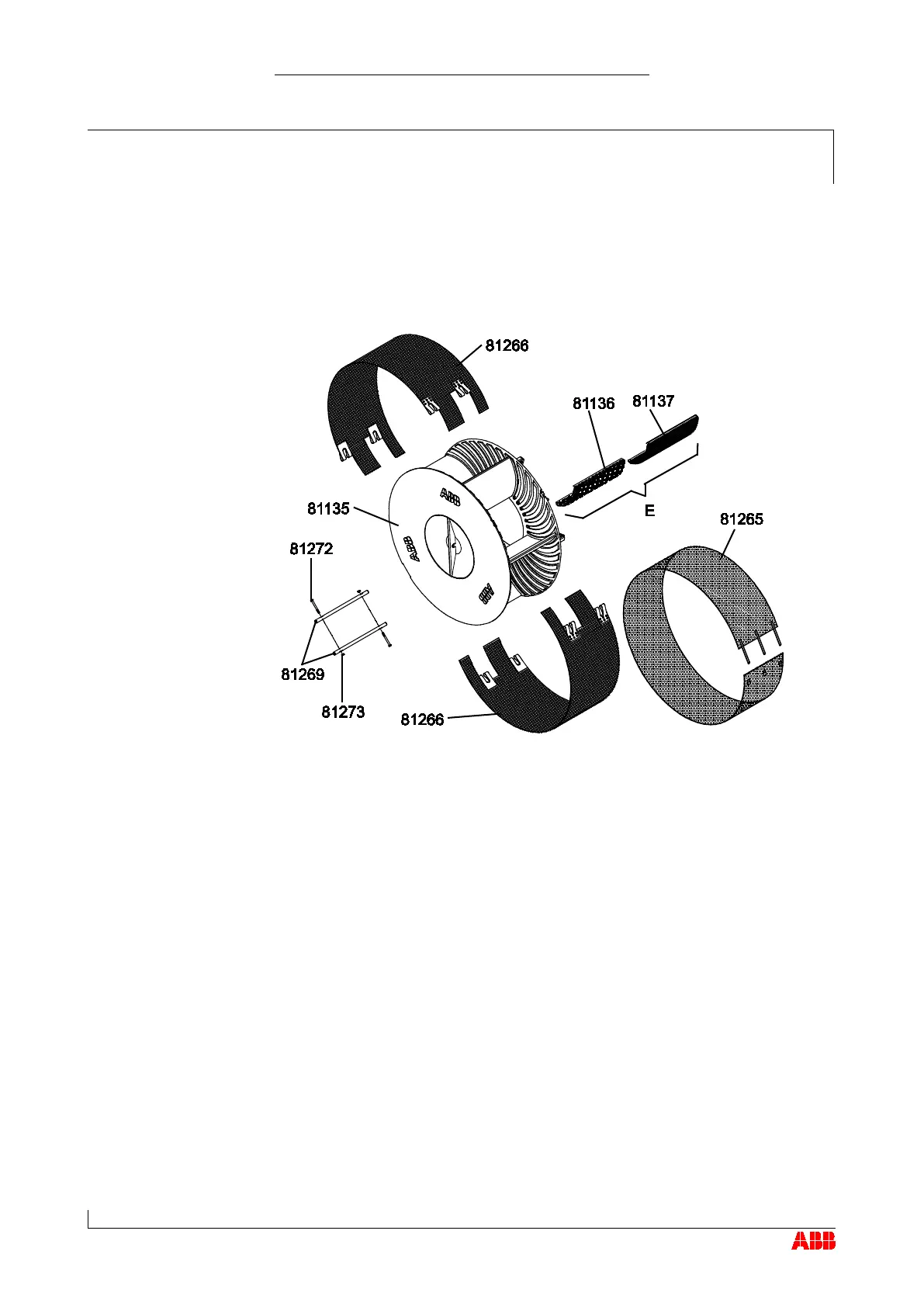

Filter silencer and connecting rod
81265
Filter ring (if provided)
81136
Absorption segment
81269 Connecting rods 81137 Sheet-metal covering
81266 Cover grid 81135 Filter silencer body
81272
Screwdriver
81273
Lock nut
E Insert unit = absorption segment + sheetmetal covering
5.2
5.2.1
