ABB TPL67-C Series

Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8
Removing cartridge group
8.5
Page 97
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D


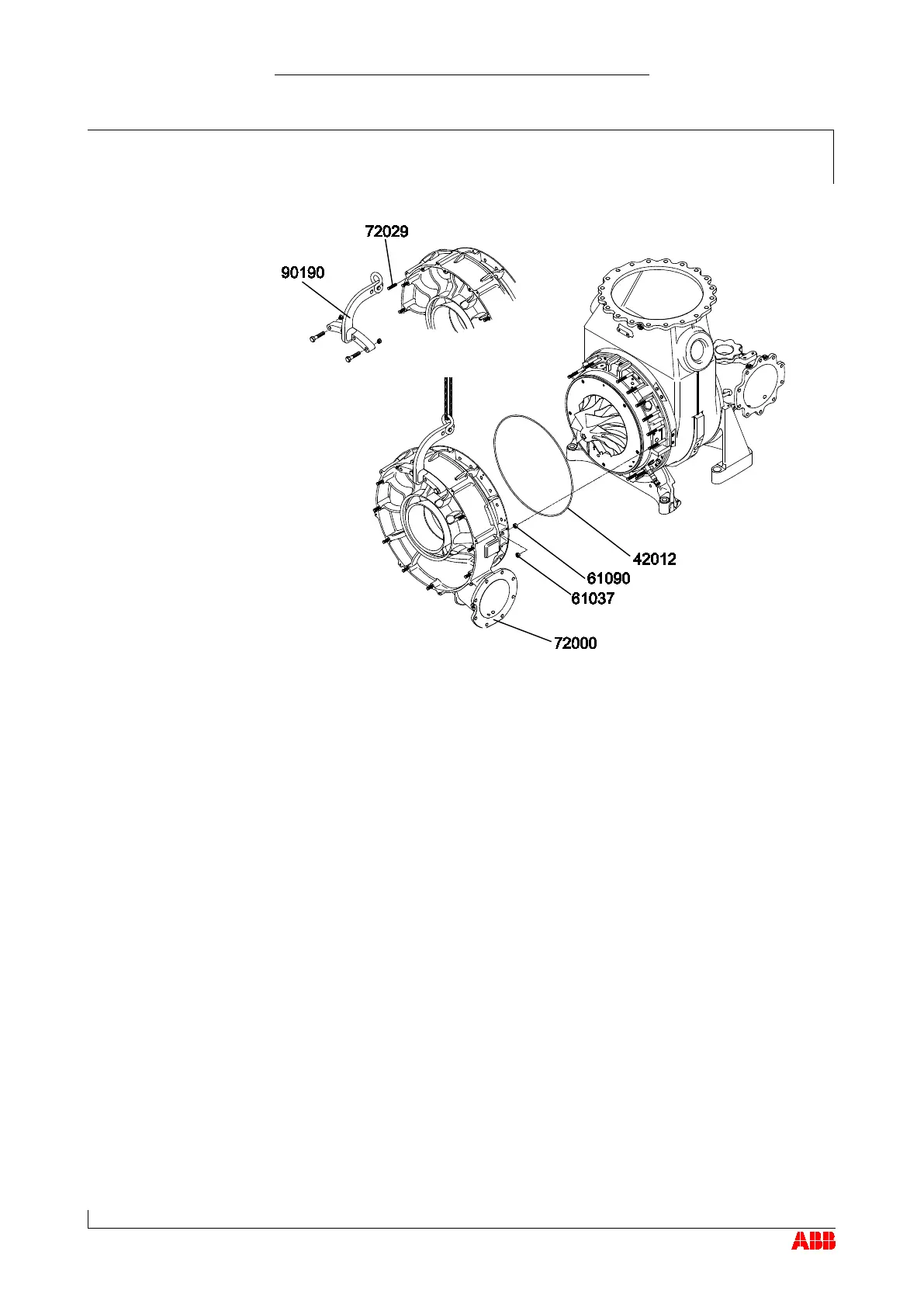

Remove three studs (72029) at top.
 Attach lifting device (90190) to compressor casing (72000), then fas-
ten and secure it to crane using lifting gear.
 Unscrew and remove nuts (61037).
 Uniformly press off compressor casing (72000) using three press-off
nuts (61090) fitted on bearing casing side.
 Slightly lift and pull out compressor casing (72000).
 Remove the O-ring (42012).
