2 - Characteristics
Accessory components (installable on the inverter)
For all inverter models accessory components are available that add
specic functions to the inverter.
The accessories can be bought separately and installed directly by a qualied technician or
by the installer.
The main characteristics of the accessory components are listed in the
following paragraphs.
For information on the installation, compatibility and use, refer to the relevant accessory com-
ponent documentation.
“Wifi Logger Card” accessory card

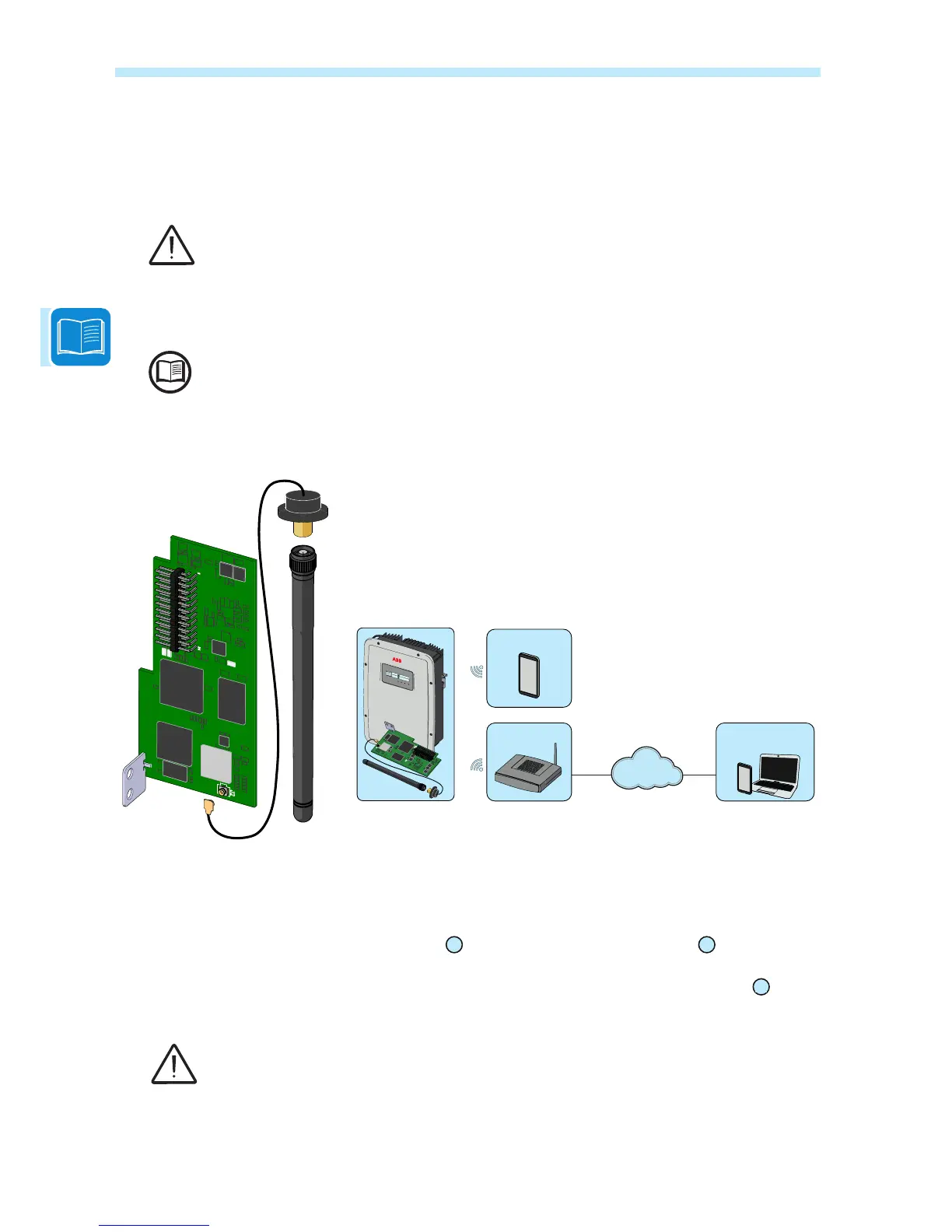

The Wi Logger Card is a useful accessory for adding a wireless com-
munication line (WiFi) for connecting the inverter with a WLAN local
network permitting data transmission to the Aurora Vision Plant Viewer/
Aurora Vision
®
web portal for remote monitoring of the inverter/system
via an internet or mobile browser App (Aurora Vision Plant Viewer
for Mobile
)
The code to use when ordering the accessory is: VSN300 Wi Logger Card
TRIO
POWER ALARM GFI ESC UP DOWN ENTER
J1
U8
U3
U11
U7
J2
1
2
23
24
Aurora Vision
Plant Viewer
WI-FI router
INTERNET
Aurora Vision
Aurora Vision Plant Viewer™
web platform
®
for Mobile
The accessory is made up of three components:
- Scheda WiFi
- Antenna
- Cable for connection between WiFi card and antenna
The Wi Logger Card is installed in the inverter on the connector referred
to as SLOT 1
27
on communication and control card
06
.
The Wi Logger Card is in turn connected with a wire ending in an adap-
ter to be installed in place of one of the service cable glands
16
(on the
outside of the inverter) with a connector on which to install the antenna.
Installation of the Wi Logger Card makes it impossible to use the “ETHERNET expansion
board” accessory as both use the same connector on the inverter
J1
U8
U3
U11
U7
J2
1
2
23
24
