TZIDC, TZIDC-110, TZIDC-120 DIGITAL POSITIONER | CI/TZIDC/110/120-EN REV. E 47
Sample parameters
‘Change the zero position of the LCD display from clockwise
(CLOCKW) to counter-clockwise limit stop (CTCLOCKW)’
Initial situation: the positioner is in bus operation on the
operating level.
1. Switching to the configuration level:
Press and hold down and simultaneously,
additionally quickly press and release ENTER,
Wait for the countdown to go from 3 to 0,
• Release and .

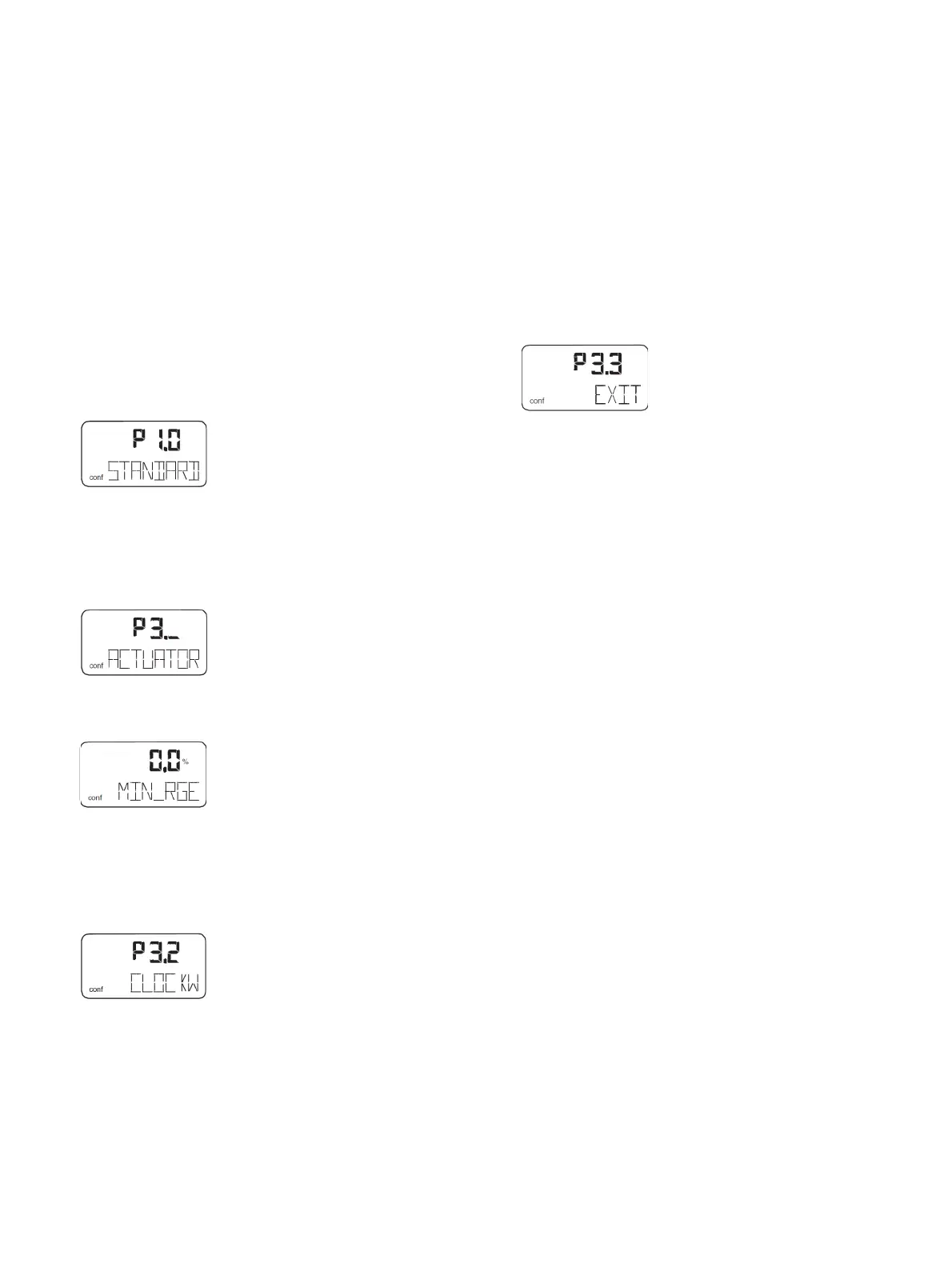

The following is now shown in the display:
M10906i
2. Switching to parameter group 3._:
Press and hold down MODE and ENTER simultaneously,
additionally quickly press and release 2×,
The following is now shown in the display:
M10906j
• Release MODE and ENTER .
The following is now shown in the display:
M10906k
3. Selecting parameter 3.2:
Press and hold down MODE,
additionally quickly press and release 2×,
The following is now shown in the display:
M10906l
— Release MODE.
4. Changing parameter settings:
Quickly press and release to select CTCLOCKW.
5. Switching to parameter 3.3 (Return to operating level) and
saving the new settings:
Press and hold down MODE,
additionally quickly press and release 2×,
The following is now shown in the display:
M10906m
• Release MODE,
Quickly press and release to select NV_SAVE,
• Press ENTER and hold down until the countdown goes
from 3 to 0.
The new parameter setting is saved and the positioner
automatically returns to the operating level. It continues in the
operating mode that was active prior to the configuration level
being called up.
Setting the option modules
Setting the mechanical position indication
1. Loosen the screws for the housing cover and remove it.
2. Rotate the position indicator on the shaft to the desired
position.
3. Attach the housing cover and screw it onto the housing.
Tighten the screws so that they are hand-tight.
4. Attach the symbol label to mark the minimum and maximum
valve positions on the housing cover.
Note
The labels are located on the inside of the housing cover.
