1ZSE 5492-124 en, Rev. 6 | Maintenance guide UCG 25
y u
Fig. 11. Indicator lamp connection during contact timing test.
x-contacts
v-contacts

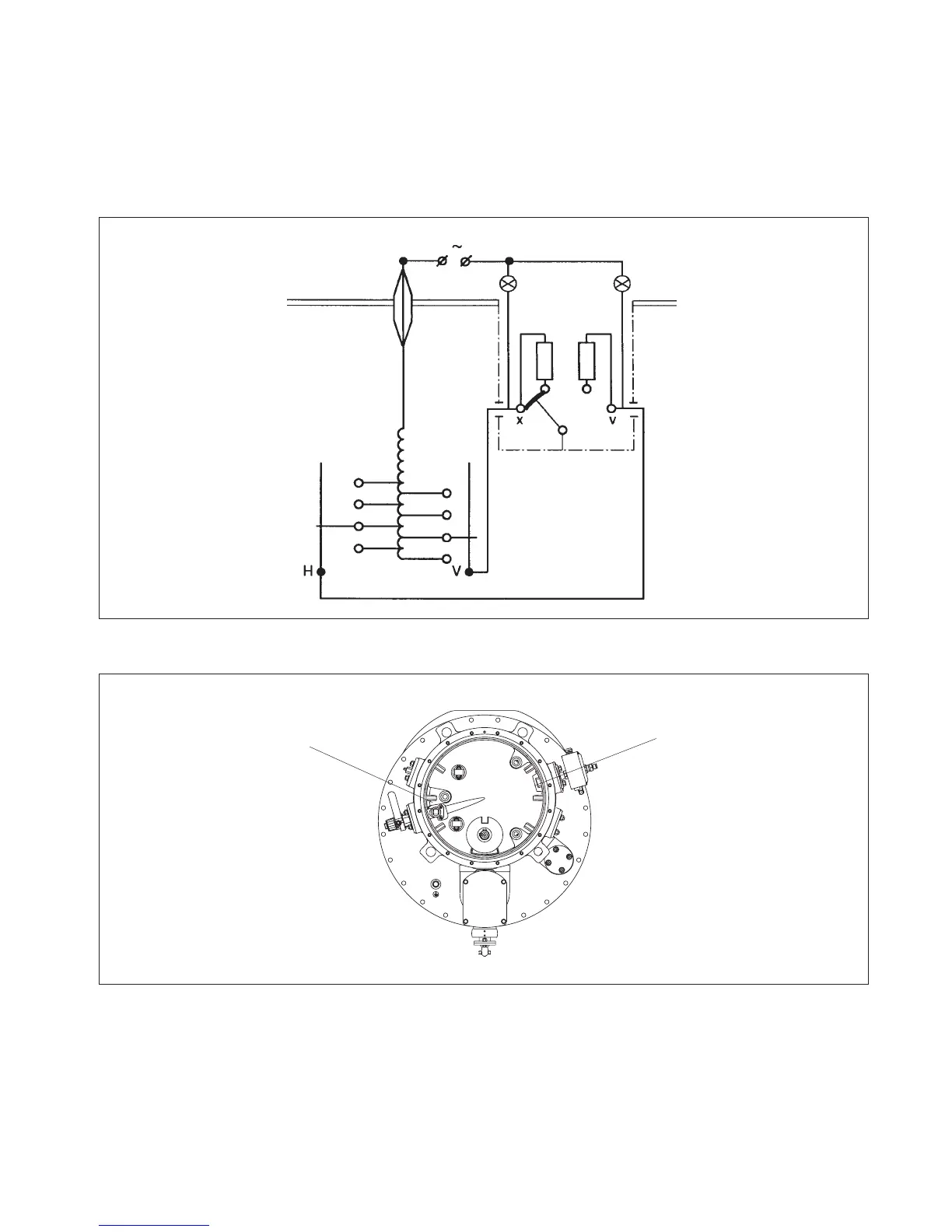

Fig. 12. The diverter switch outlet marking.
