Other recommended type of substation clock is LANTIME M400 manufactured by Meinberg.
It supports GPS / GLONASS clock and synchronization of IEEE 1588-2008 (PTPv2) compatible
clients via IEEE C37.238-2011 Power Profile, two step clock. Refer to www.meinberg.de for
additional information.

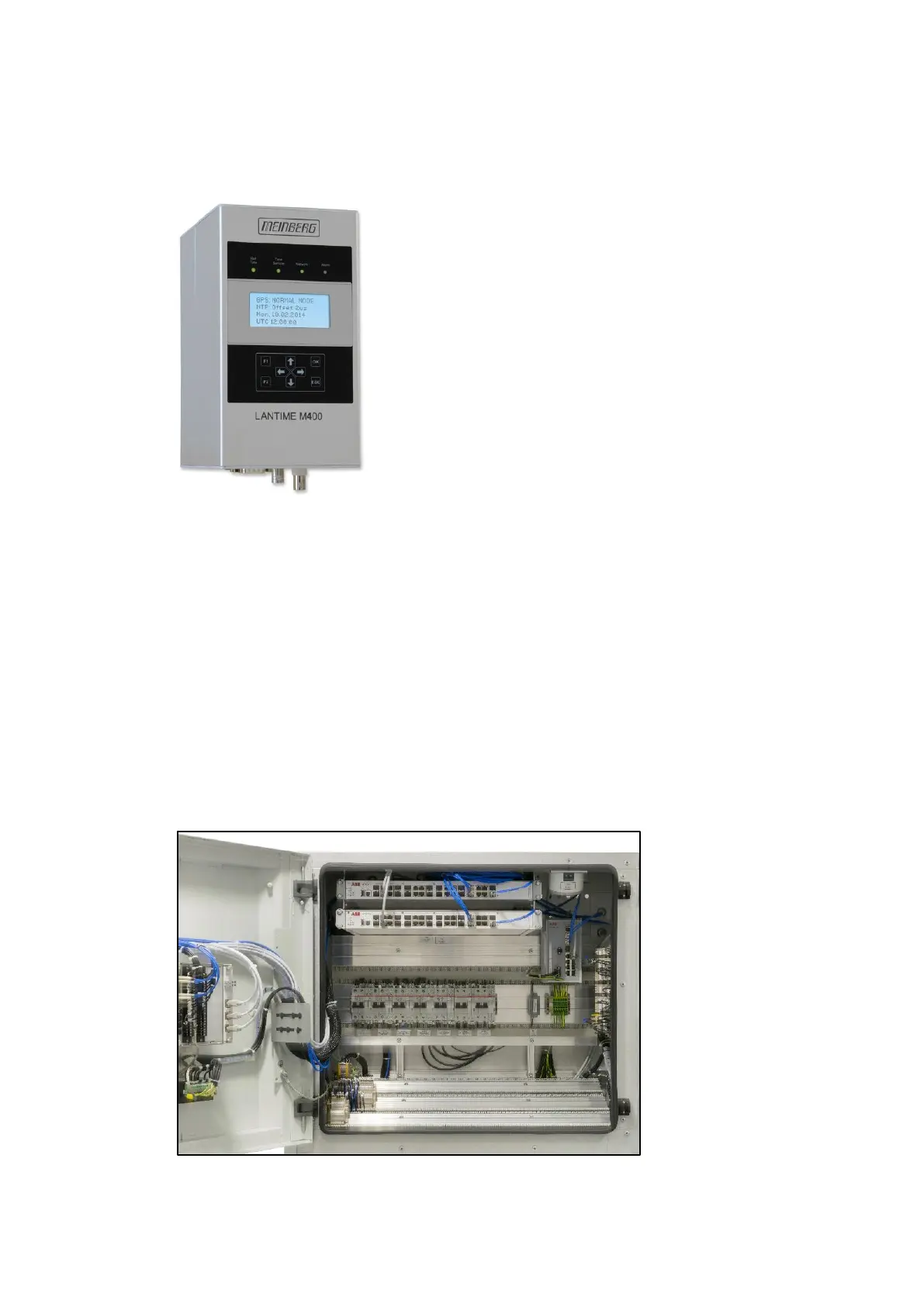

Figure 79: Example of satellite controlled clock from Meinberg
Layout
The communication devices are usually mounted inside the low voltage compartment of the
panel. Therefore, the panels are ready for connection. The main benefits of this solution are:
– Cubicles are ready for connection
– Saving space in substation building
– Shorter communication links
– Cheaper solution
Protection relays are connected to the Ethernet network in compliance with the Network
Overview Diagrams. It is recommended to wire communication link from Ethernet switch to
protection relays and keep minimal allowed bend radius especially for fiber optic patch cords.
Figure 80: Low Voltage Compartment of UniGear panel

ABB UniGear Series Specifications

General

Rated Voltage	Up to 24 kV
Rated Current	Up to 4000 A
Rated Short-Time Withstand Current	Up to 50 kA
Frequency	50/60 Hz
Rated Short-Circuit Breaking Current	Up to 50 kA
Rated Lightning Impulse Withstand Voltage	Up to 125 kV
Loss of Service Continuity Category	LSC2B
Partition Class	PM
Type Tested Assembly	IEC 62271-200
Operating Mechanism	Spring-operated, motor-operated
Dimensions	Varies depending on configuration. Consult manufacturer's documentation.
Weight	Varies depending on configuration. Consult manufacturer's documentation.
Protection Degree	Up to IP4X
