ABB UniGear Series User Manual

ENGINEERING ETHE RNE T
1VLG5 00007 E 79
3.5.10.2 Time Settings <Mandatory>
Time / PTP / Global
PTPv2 must be configured in case SMV (IEC 61850-9-2LE) is used.
Operation IEEE 1588 / PTP = ON
Configuration IEEE 1588 / PTP / PTP Version-Mode
– V2-transparent-clock; used only to correct and forward PTP messages. The device cannot
become a PTPv2 master.

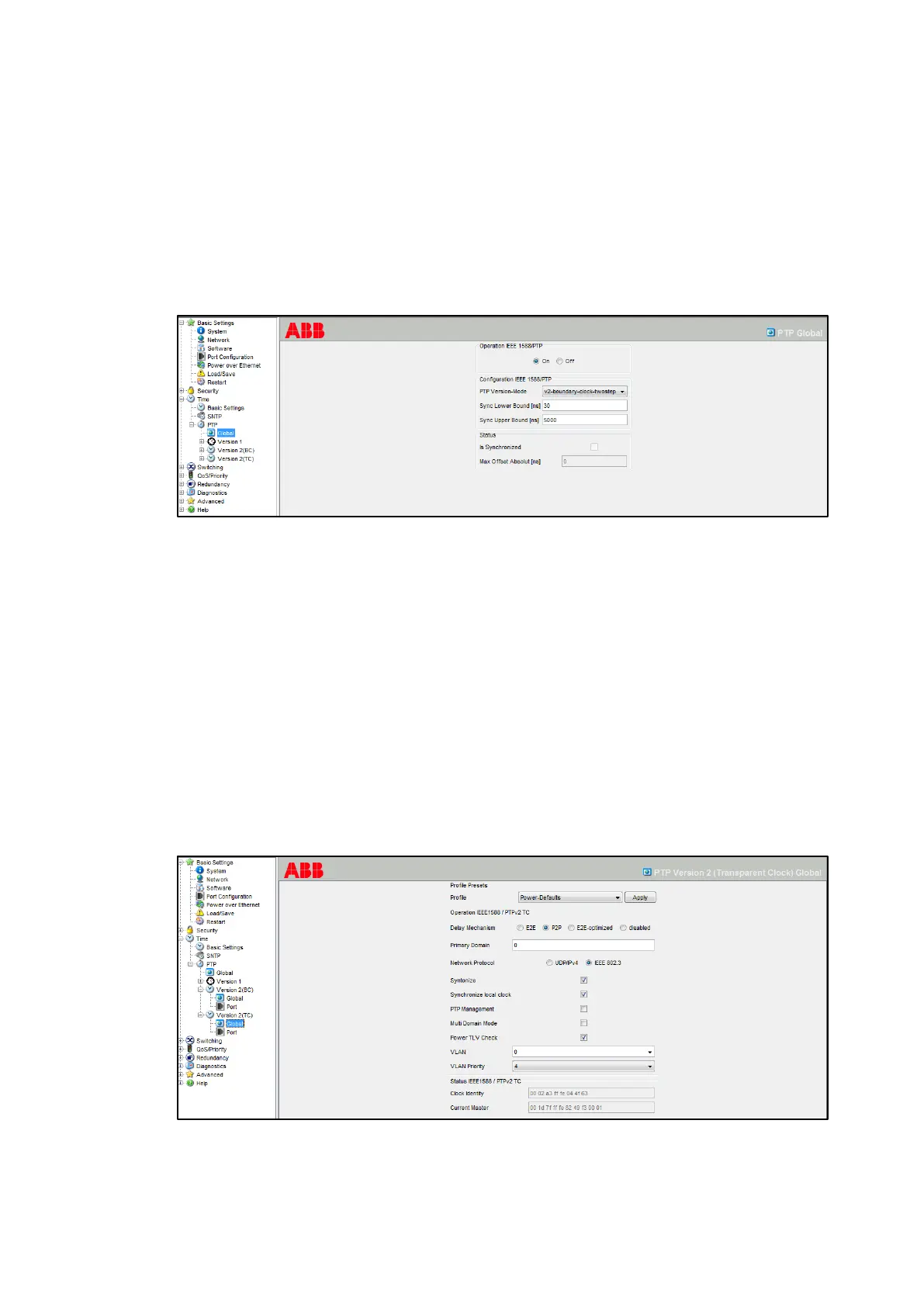

Figure 103: PTP Global dialog
Time / PTP / Version 2(TC) / Global
Profile Presets / Profile = Power - Defaults
Operation IEEE 1588 / PTPv2 TC
– Delay mechanism = P2P (Peer to Peer)
– Primary Domain = 0
– Network protocol = IEEE 802.3
– Syntonize = enabled to synchronize also local time
– Power TLV Check = enabled
– VLAN = 1
Figure 104: PTP Version 2 (Transparent Clock) Global dialog

ABB UniGear Series Specifications

General

Rated Voltage	Up to 24 kV
Rated Current	Up to 4000 A
Rated Short-Time Withstand Current	Up to 50 kA
Frequency	50/60 Hz
Rated Short-Circuit Breaking Current	Up to 50 kA
Rated Lightning Impulse Withstand Voltage	Up to 125 kV
Loss of Service Continuity Category	LSC2B
Partition Class	PM
Type Tested Assembly	IEC 62271-200
Operating Mechanism	Spring-operated, motor-operated
Dimensions	Varies depending on configuration. Consult manufacturer's documentation.
Weight	Varies depending on configuration. Consult manufacturer's documentation.
Protection Degree	Up to IP4X
