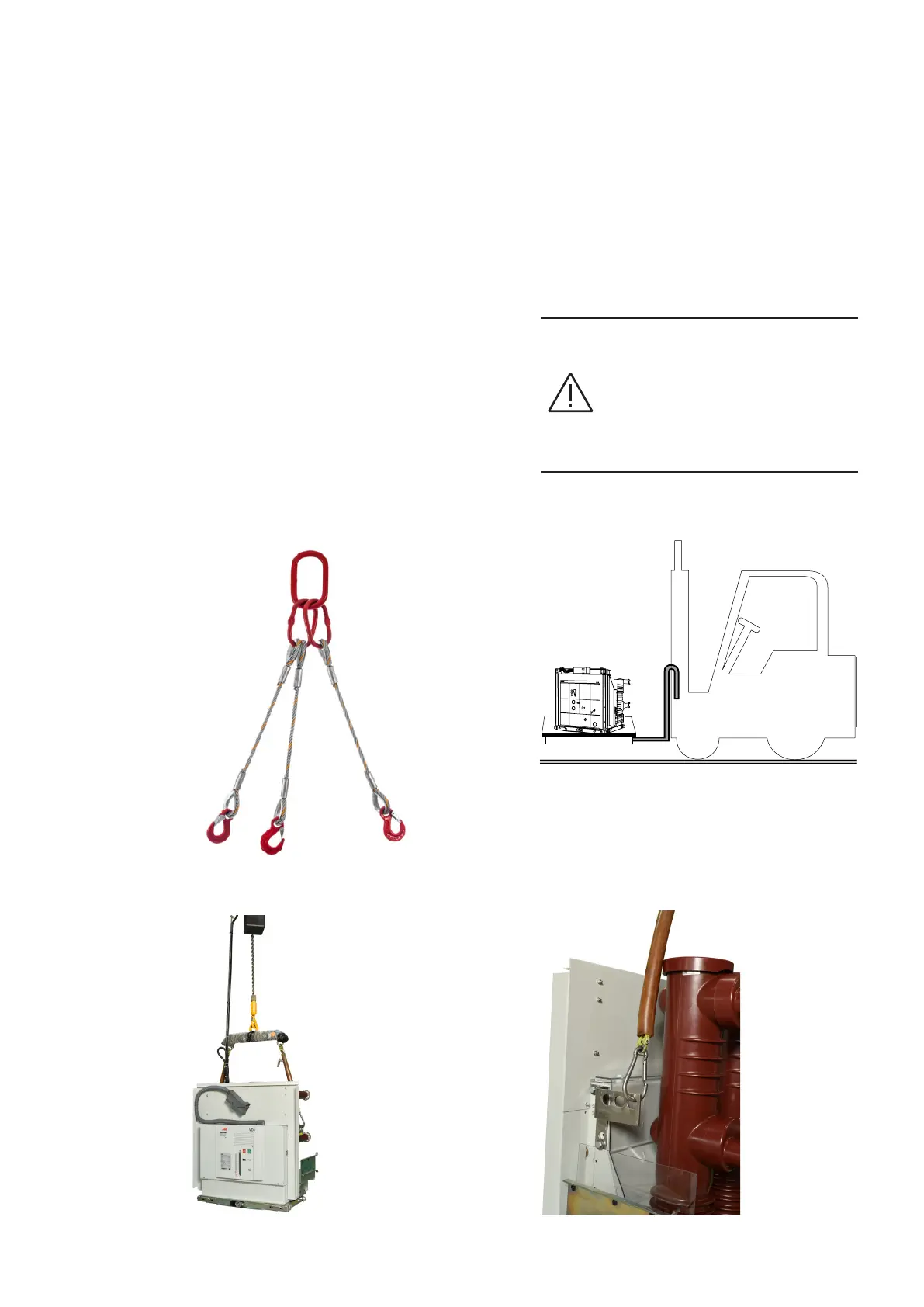

Handling with slings:
- To lift and handle the circuit-breaker, use the
hooks (figure 7.1 & 7.2).
- Put the hooks in the holes prepared in
the lifting bracket fixed on circuit-breaker
frame and lift with appropriate capacity
overhead crane.
Always take great care during handling not to
stress the insulating parts and the circuit-breaker
terminals.
Fig 7.1
Fig 7.2
Fig 7.3
In any case, it is always advisable to carry out
lifting using the supports (figure 7.4,& 8.1) in
position C.
Fig 7.4
While using forklift :
The apparatus must not be handled
by inserting forks of the truck
directly under the apparatus itself.
Should it be necessary to use this
method, place the circuit-breaker on
a sturdy supporting surface
(Wooden pallet) (see figure 7.3).
