9

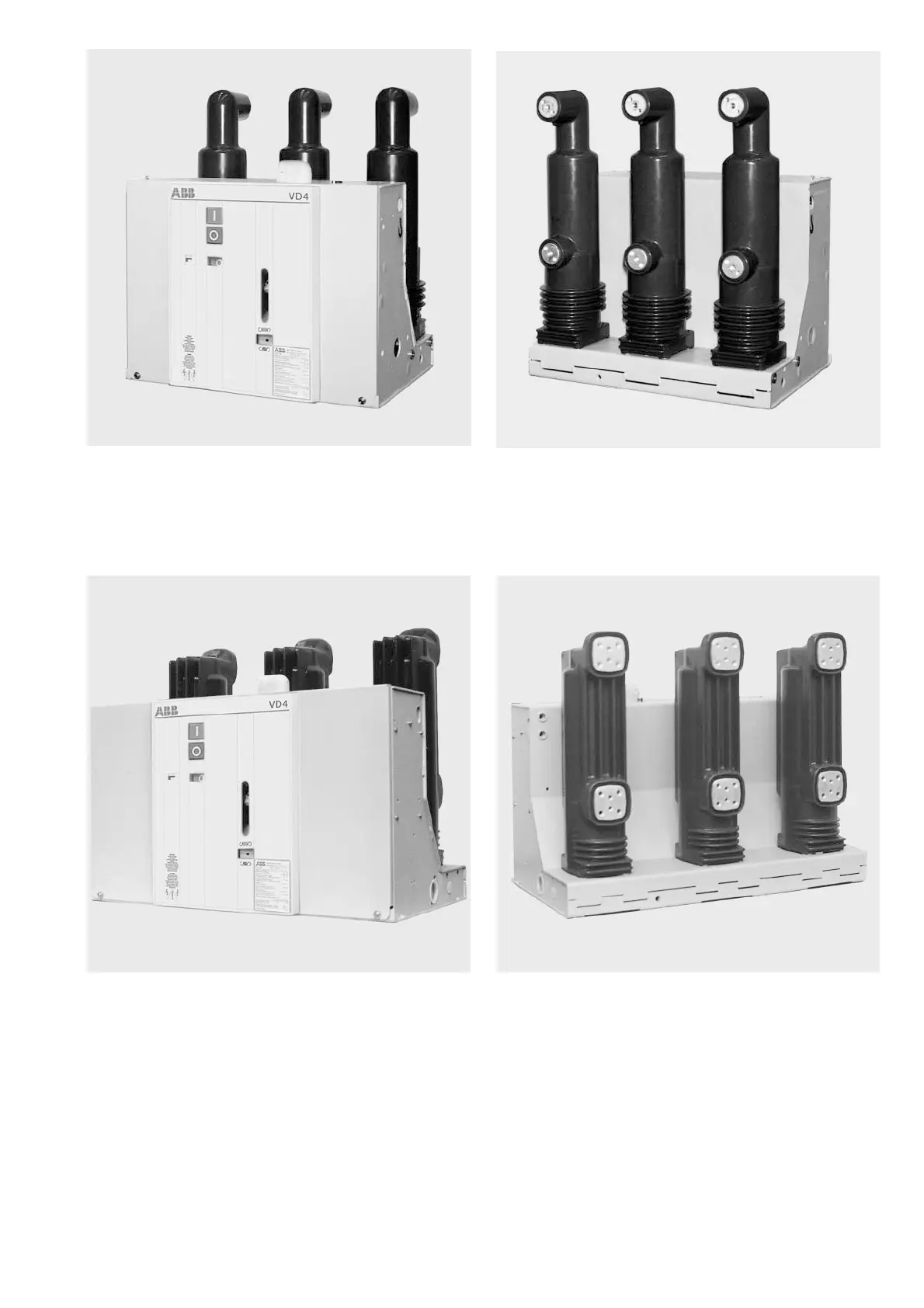

Figure 2/5: Vacuum circuit-breaker, type VD4, high-current,
for 12 kV and rated current 2000 A, mechanism side
Figure 2/6: Vacuum circuit-breaker, type VD4, high-current,
for 12 kV and rated current 2000 A, pole side
Figure 2/3: VD4 circuit-breaker for fixed installation,
24 kV, 1250 A, mechanism side
Figure 2/4: VD4 circuit-breaker for fixed installation,
24 kV, 1250 A, pole side
