8

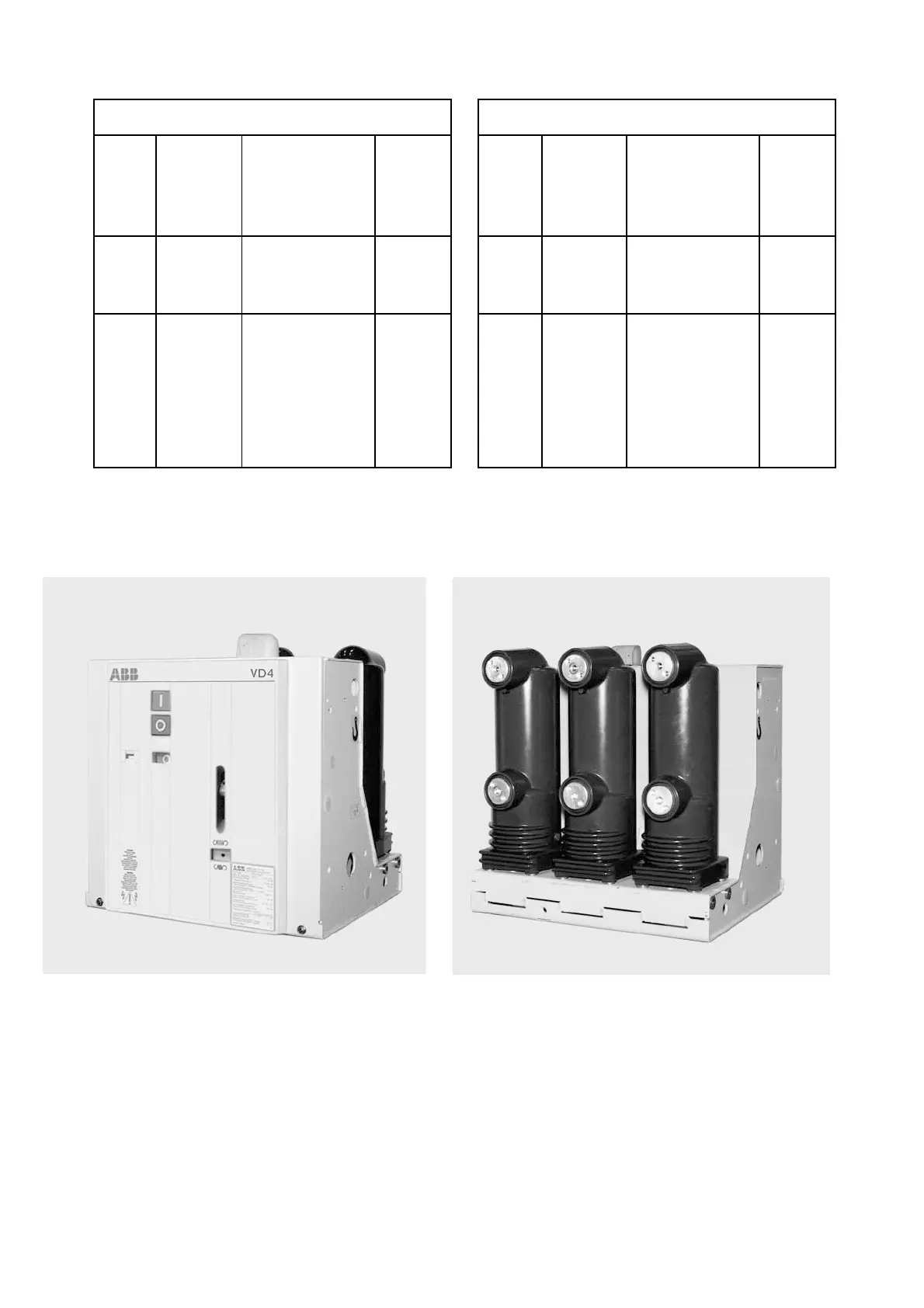

Figure 2/1: VD4 circuit-breaker for fixed installation,
12 kV, 1250 A, mechanism side
1)
Approximate values
2)
At rated supply voltage
Figure 2/2: VD4 circuit-breaker for fixed installation,
12 kV, 1250 A, pole side
2.3 Technical data
Motor-operated mechanisms
Groschopp-Motor
Rated Power Motor protection Charging
supply consumpt- (ABB-Stotz m.c.b.) time
voltage ion
1)
(maxi-
mum)
2)
V VA/W A s
AC
110 260 1.6 S 281UC-K 10
220 260 0.75 10
240 260 0.75 10
DC
60 240 3.0 S 282UC-K 10
110 230 1.6 10
125 260 1.6 10
220 240 0.75 10
240 260 0.75 10
Gefeg-Motor
Rated Power Motor protection Charging
supply consumpt- (ABB-Stotz m.c.b.) time
voltage ion
1)
(maxi-
mum)
2)
V VA/W A s
AC
110 150 1.6 S 281UC-K 15
220 150 0.75 15
240 170 0.75 15
DC
24 130 4.0 S 282UC-K 15
48 130 3.0 15
60 130 2.0 15
110 140 1.0 15
125 160 1.0 15
220 140 0.75 15
240 150 0.75 15
