One-family house/villa
» System type: audio/video combined
» Wiring: looped from device to device
» Devices used
» One ABB-Welcome video outdoor station, 1gang,
article number: 83121/1-xxx-500
» One ABB-Welcome
audio indoor station with display,
article number: 83200 U-500,
cover plates article number: 83260-xxx-500 2gang frame
» One ABB-Welcome audio indoor station with handset,
article number: 83205 AP-xxx-500
» One ABB-WelcomeTouch,
article number: 83220 AP-xxx -500
» One ABB-Welcome system controller,
article number: 83300-500
» One electric door opener
The combined audio/video solution for the one-family house.

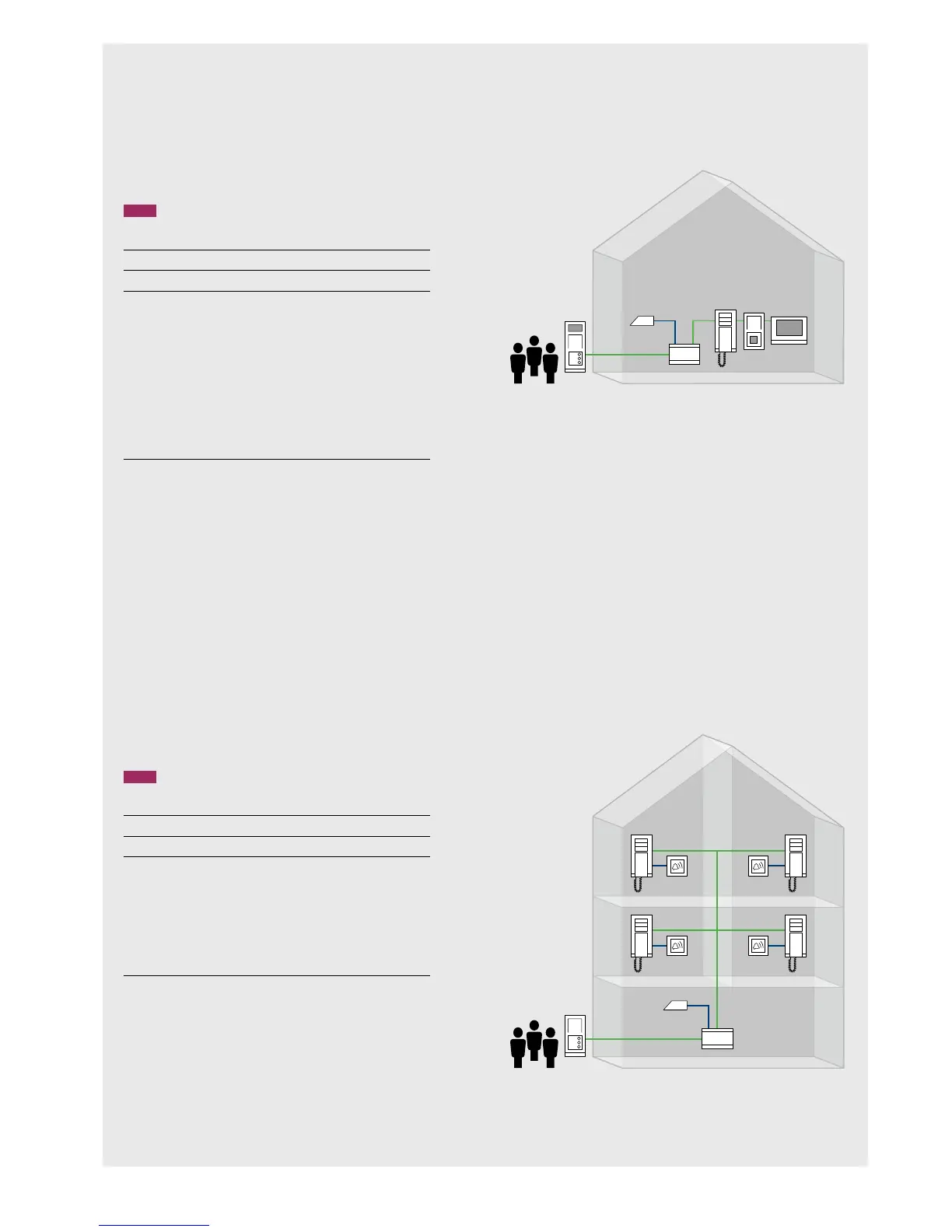

The drawing shows the easy-to-install
2-wire bus. From the
ABB-Welcome video outdoor station to the ABB-Welcome system
controller. And from there to the
ABB-WelcomeTouch as well as
to the ABB-Welcome audio indoor station with display and the
ABB-Welcome audio indoor station
with handset. Additional
distributors are not required.
Fig. 1
Multifamily house with 4 private apartments
» System type: audio
» Wiring: rising mains with branch connections
» Devices used
» One ABB-Welcome audio outdoor station, 4gang,
article number: 83102/4-xxx-500
» Four ABB-Welcome
audio indoor stations with handset,
article number: 83205 AP-xxx-500
» One ABB-Welcome system controller,
article number: 83300-500
» Four floor call buttons
» One electric door opener
The audio solution for the multifamily house. The drawing shows
the easy-to-install 2-wire bus From the ABB-Welcome outdoor
audio station to the ABB-Welcome system controller. And from
there to the ABB-Welcome audio indoor station with handset.
Additional distributors are not required
Fig. 2
User Manual ABB-Welcome | Examples for typical ABB-Welcome systems 11
Note: Graphic symbols are explained in the legend on page 56.
