S
Max. 300 m
Max. 100 m
Max. 300 m
Max. 300 m
S
A

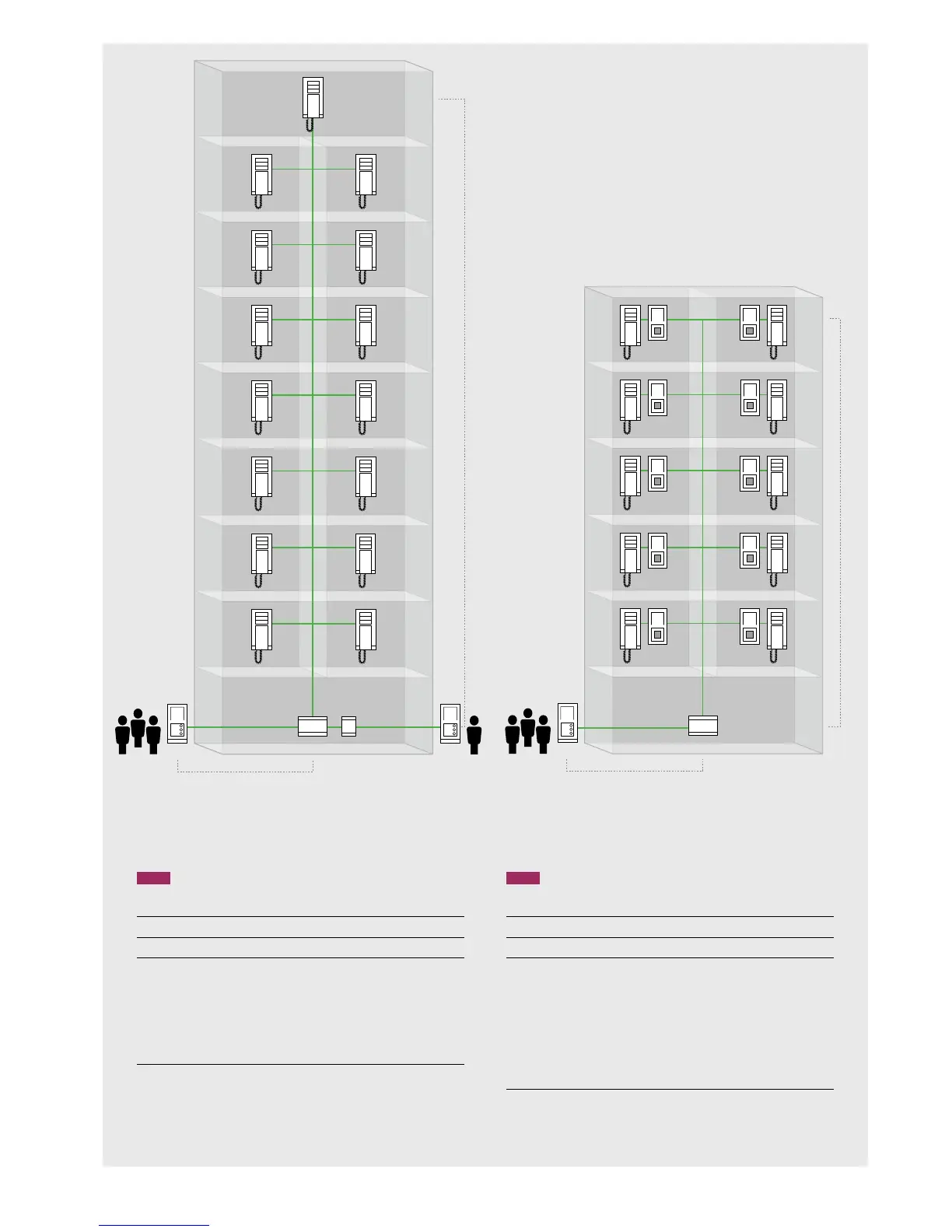

Multifamily house with 10 private apartments
» System type: audio
» Wiring: rising mains with branch connections to the apartments
» Devices used:
» One ABB-Welcome audio outdoor station, 10gang,
article number: 83105/10-xxx-500
» Ten ABB-Welcome audio indoor station with display,
article number: 83200 U-500, cover plates,
article number: 83260-xxx-500, 2gang frame
» Ten ABB-Welcome audio indoor stations with handset,
article number: 83205 AP-xxx-500
» One ABB-Welcome system controller,
article number: 83300-500
Multifamily house with 15 private apartments
» System type: audio
» Wiring: rising mains with branch connections to the apartments
» Devices used:
» One ABB-Welcome audio outdoor station, 15gang,
article number: 83105/15-xxx-500
» Fifteen ABB-Welco me audio indoor stations with handset,
article number: 83205 AP-xxx-500
» One ABB-Welcome system controller,
article number: 83300-500
» One switch actuator, door/light, article number: 83330-500
Fig. 18 Fig. 19
